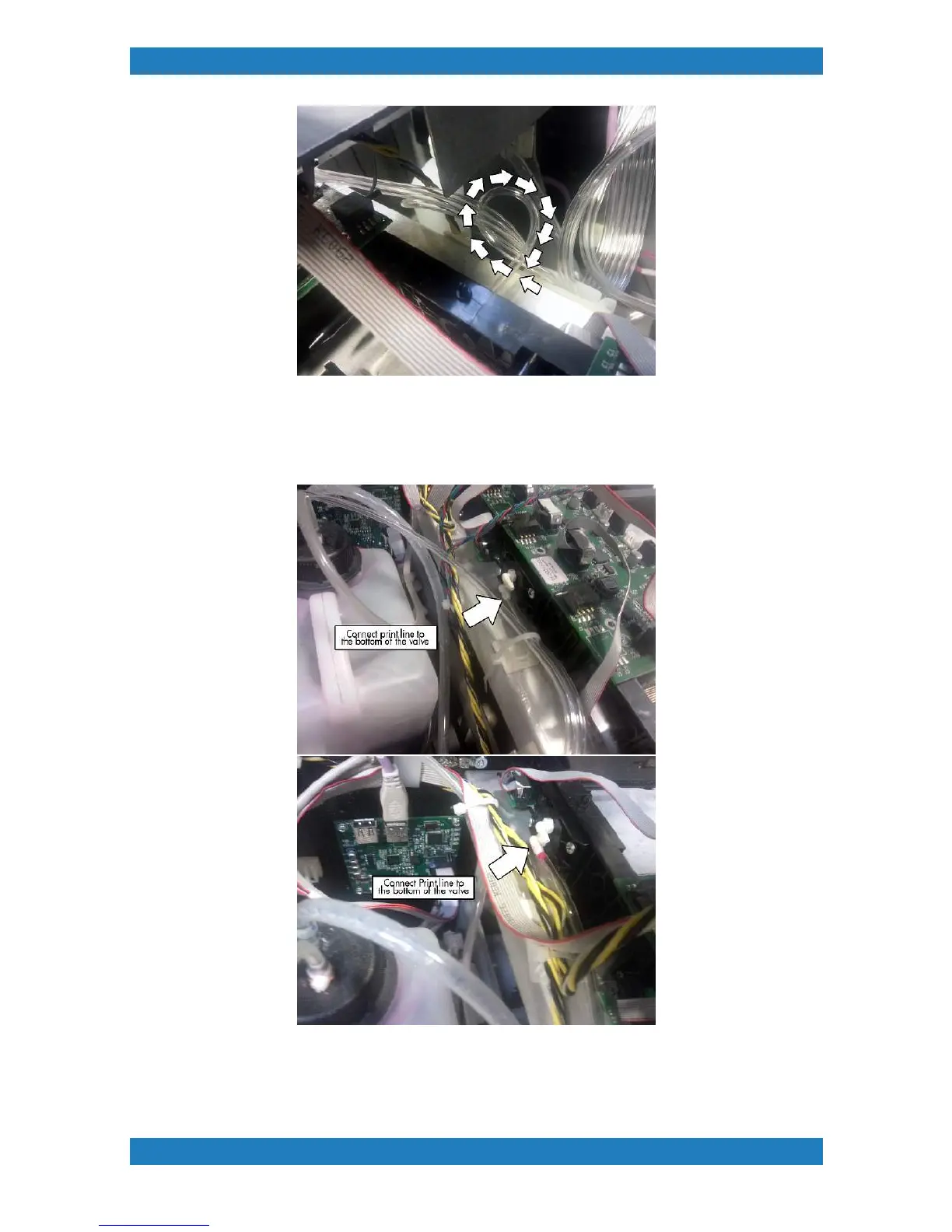

Photo 3.2.15
Print Tubes #5 and #6 (White 1 / White 2) will connect to the BOTTOM of the cartridge valve. It is very
important that that Print line (set of 6) is connected to the bottom part of the valves. See photo 3.2.16
Photo 3.2.16
Your Print lines should now all be connected.
Purge tube assembly (set of 2 / white)
