AND AD-4401A - Page 23

AD-4401A
Page 23

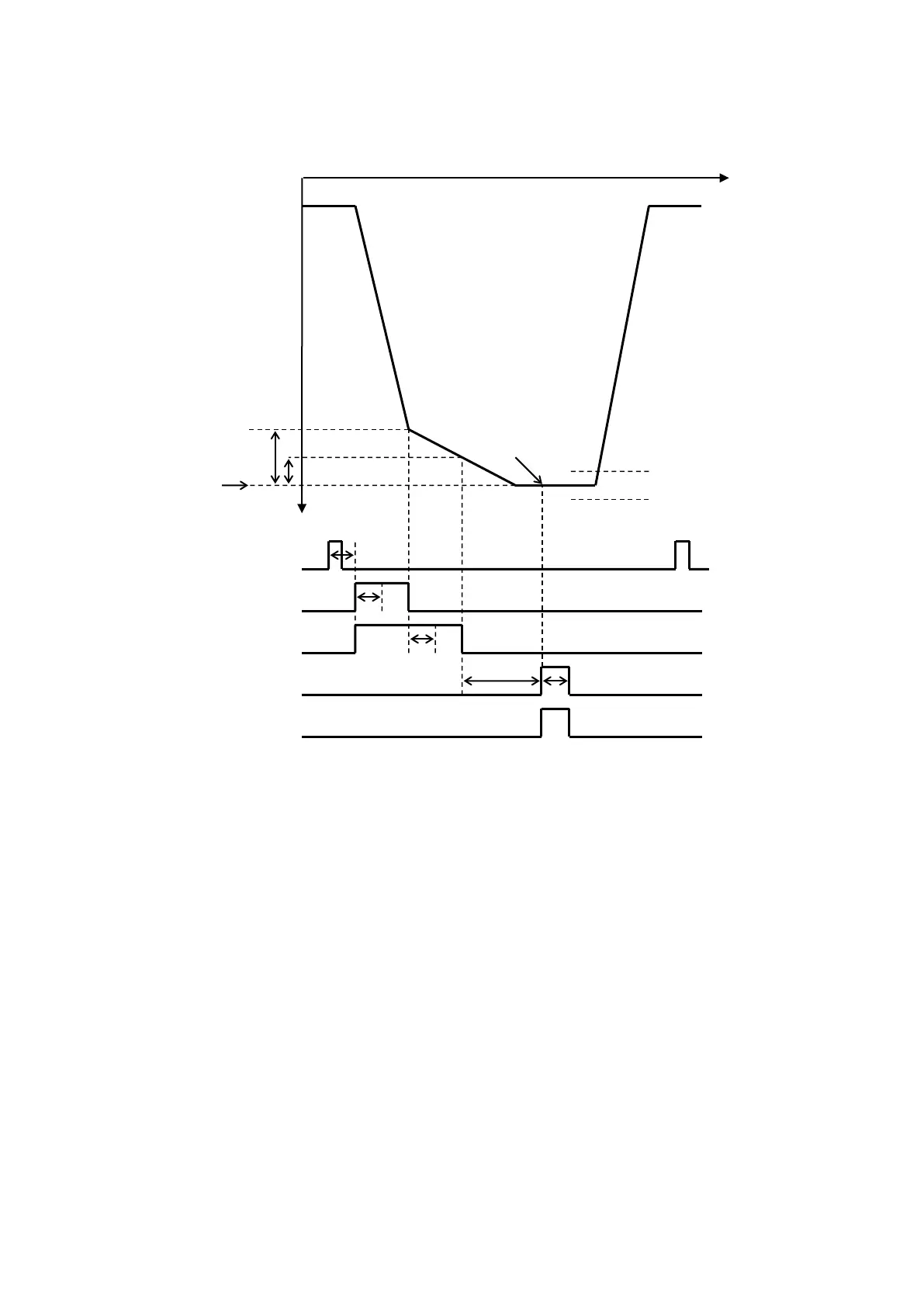

Timing chart
Final weight
Free fall
Underweight
Overwei
ght
Preliminary
T1
T2
T3
T4
T5
T1:
Weighing start input delay time
T2:
Medium flow comparison disable time
T3
: Small flow comparison disable time
T4:
Judging delay time
T5:
Weighing end output time
Judge
Medium flow output
Small flow output
Weighing end output
OK/Over/Under output
Weigh
ing start input
