AND AD-4401A - 13.3. Data Output Timing; 13.4. Data Output Logic

AD-4401A
Page 46
13.3. Data Output Timing
Select a data output timing (bCdF-02) from the following:
1: Interval output at the display update rate (FncF-03) (default)
2: In synchronization with automatic print
3: In synchronization with manual print

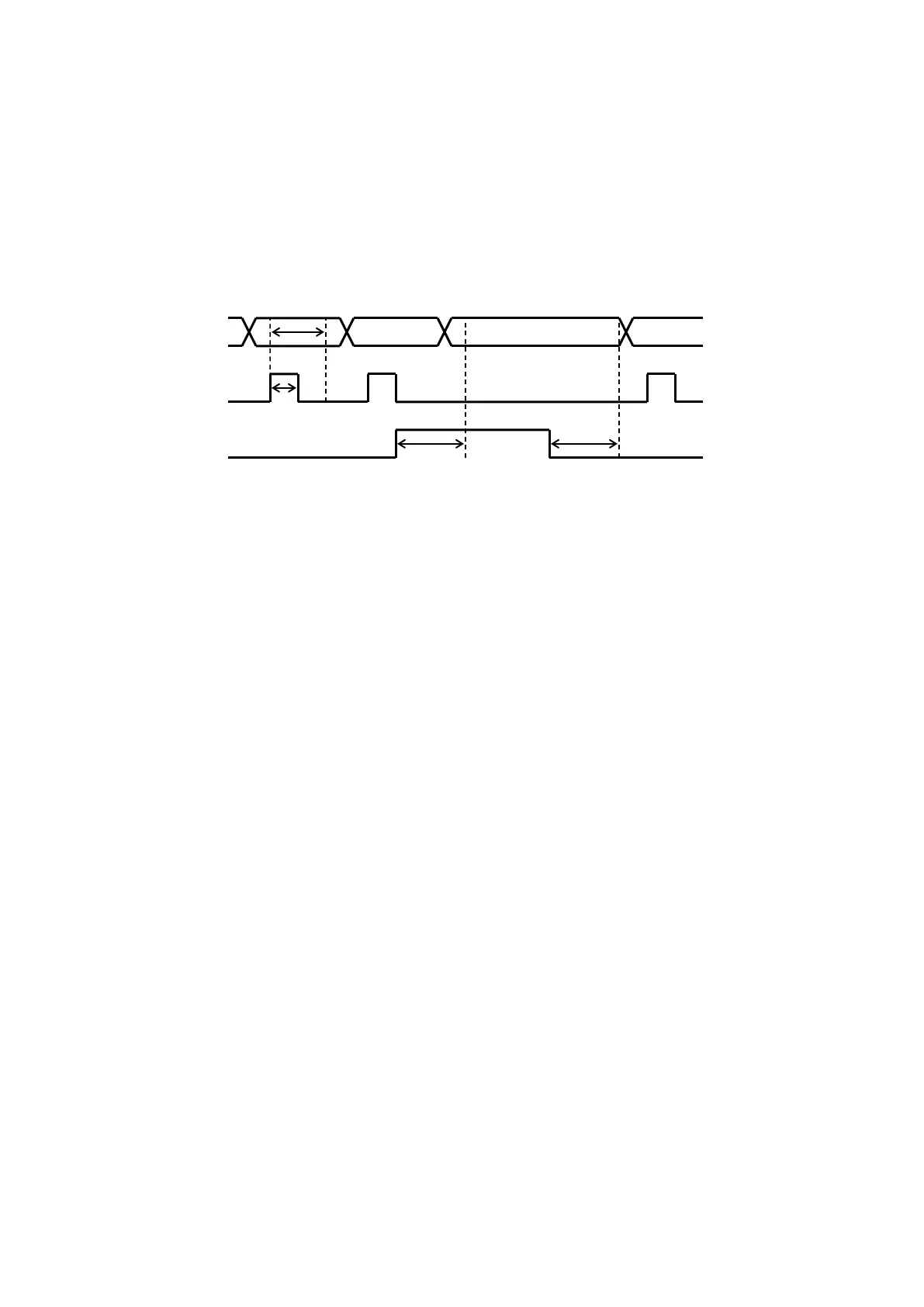

Timing chart
The valid data output width is twice the strobe output width. Read the data within the valid data output width.
The strobe output width depends on the display update rate (FncF-03).
Display update rate Strobe output width
- 20 times/s 20 ms
- 10 times/s 45 ms
- 5 times/s 95 ms
Update will stop within 50 ms after the hold input turns ON. Then, update will restart within 50 ms after the
hold input turns OFF.
13.4. Data Output Logic and Strobe Output Logic
Select a data output logic (bCdF-03) and a strobe output logic (bCdF-04) from the following:
1: Positive logic
2: Negative logic (default)
Data output
Strobe output
Strobe output width
Valid data output width
Hold input
50
ms
50
ms
