16.3. Output Specifications
Analog current output
4 to 20mA DC
External load resistance: 0 to 600 Ω
Maximum resolution 1/4000
Accuracy ±0.1%FS
Temperature coefficient
Offset drift: ±3.2µA/°C
Gain drift: ±0.02%/°C
Conversion rate 10 ms
16.4. Output Functions
Select an output weight value (An F-01) from the following:.
1: Displayed weight value (default)
2: Gross value
3: Net value
●Output adjustment

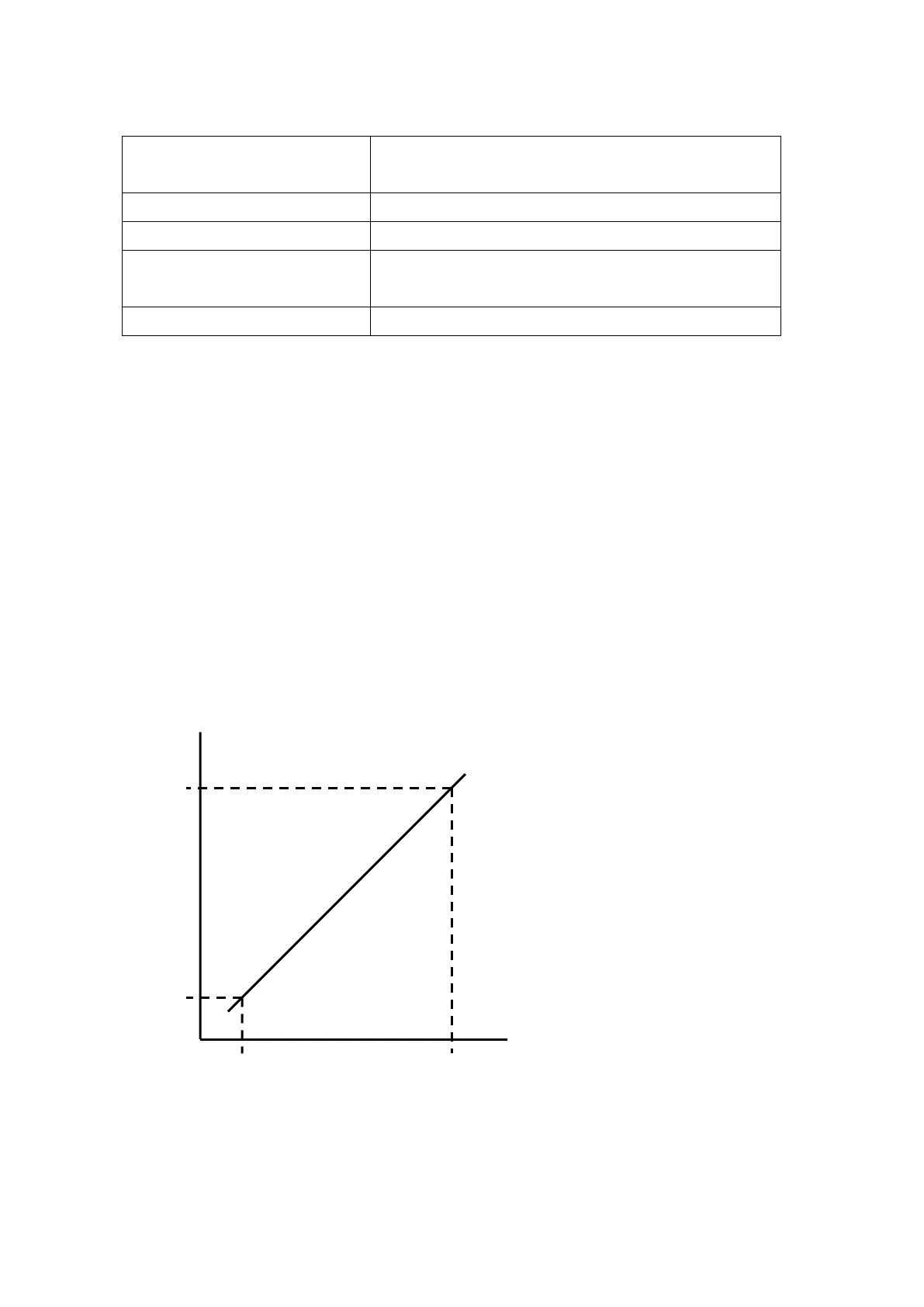

Output characteristic is represented by the straight line obtained by connecting between the weight value at
4 mA output (An F-02) and the weight value at 20mA output (An F-03).
3000
0
4mA
20mA
Output current
