AND AD-4401A - Check Weighing Stage 4

AD-4401A
Page 32
9.4. Check Weighing 4
When the weight value is compared with the setpoint and the condition is met, the control output turns ON.
Condition Control output
Gross value ≤ Near-zero
Near-zero
Net value > Hi-Hi limit Hi-Hi
Hi-Hi limit > Net value ≥ Hi limit
Hi
Hi limit > Net value ≥ Lo limit
Go
Lo limit > Net value ≥ Lo-Lo limit
Lo
Net value < Lo-Lo limit Lo-Lo

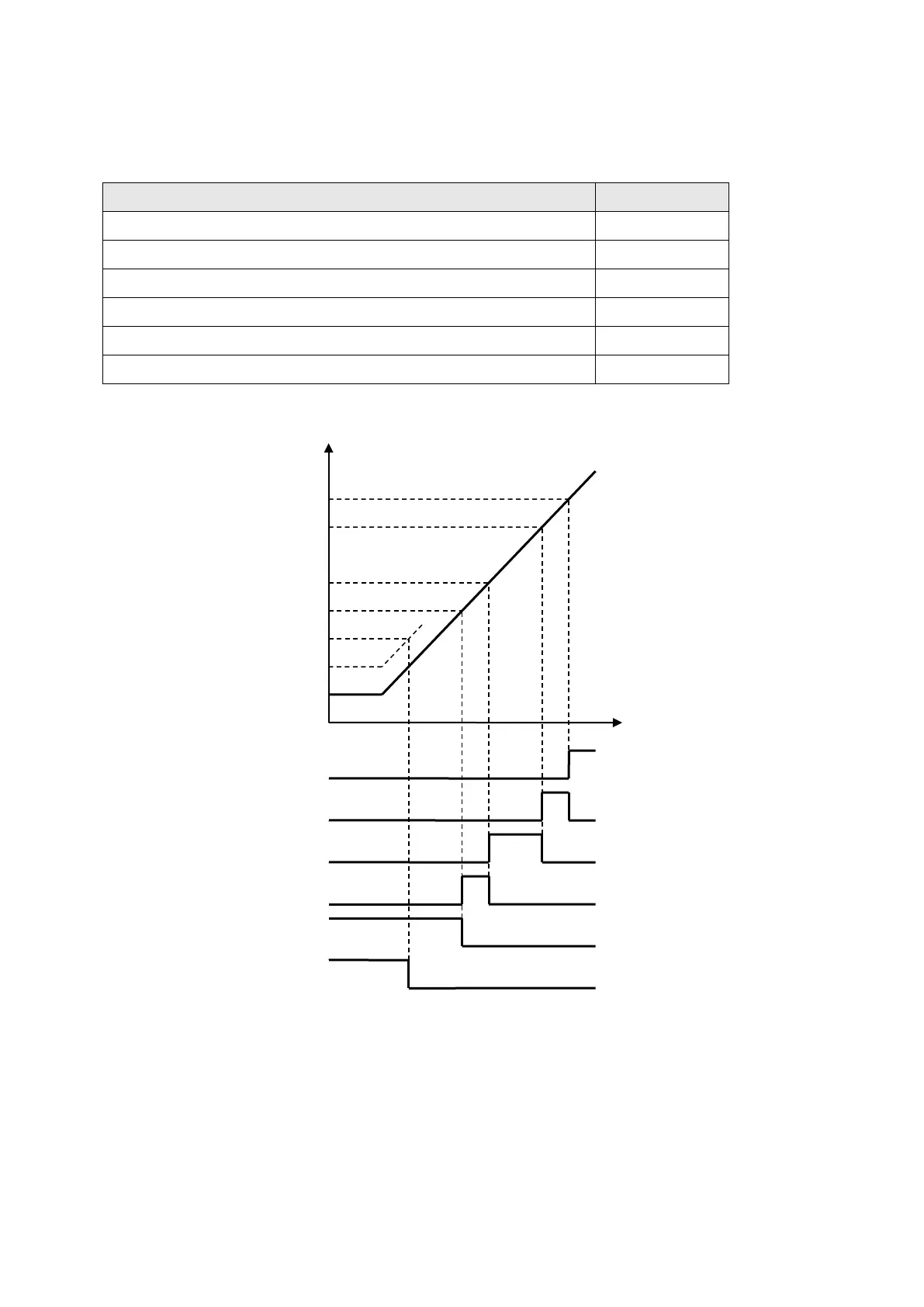

Timing chart
9.5. Check Weighing Functions
●Automatic print
When the weight value is five times the minimum division or more and is stable, data is output once from the
standard serial output or options. To output again, wait for the weight value to be four times the minimum
division or less.
Near-
Zero
Gr
oss
Hi-
Hi output
Hi output
Go output
Lo output
Lo-
Lo output
Near-
zero output
Lo-
Lo limit
Lo limit
Hi limit
Hi-H
i limit
Net
