16. Option-07 Analog 4-20mA Output
16.1. Terminal Assignment
Terminal No. Symbol Description
8
A
+
Analog current output
+
9
A
-
Analog current output
-
10 SHLD Frame ground
When the optional analog 4-20mA output is not installed, the pins No.8 and No.9 are vacant.
Check the 07 column of the option list on the side of the indicator casing.

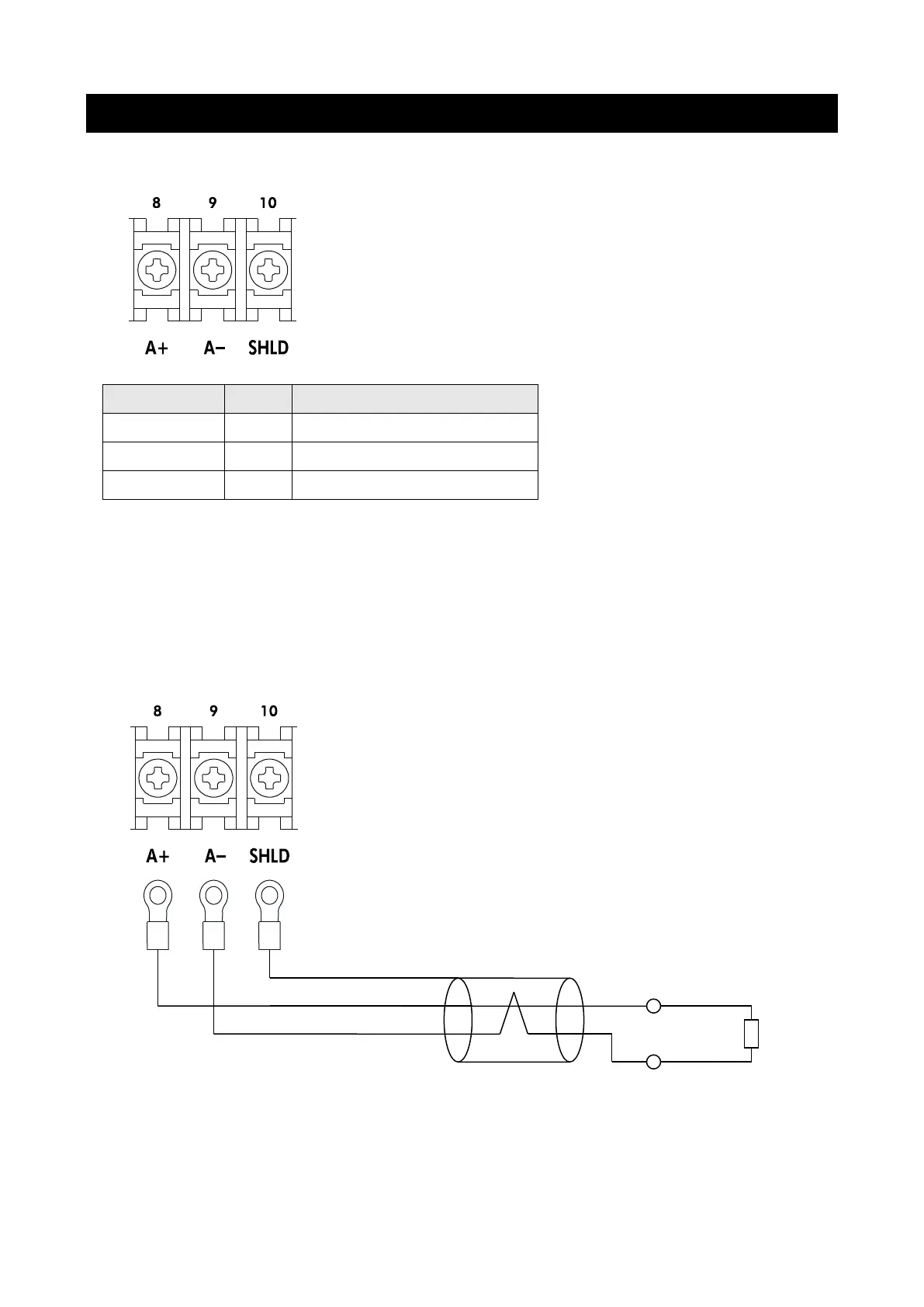

16.2. Connection Diagram
Applicable solderless terminal: R1.25-3
Applicable wire size: 0.3 to 0.75 mm
2
. Use a 2-wire shielded twisted pair cable.
External load resistance: 0 to 600 Ω
Shield
Analog current
+
Analog current
-
External load resistance
