AND AD-4401A - 19. Operation Checking

AD-4401A
Page 71

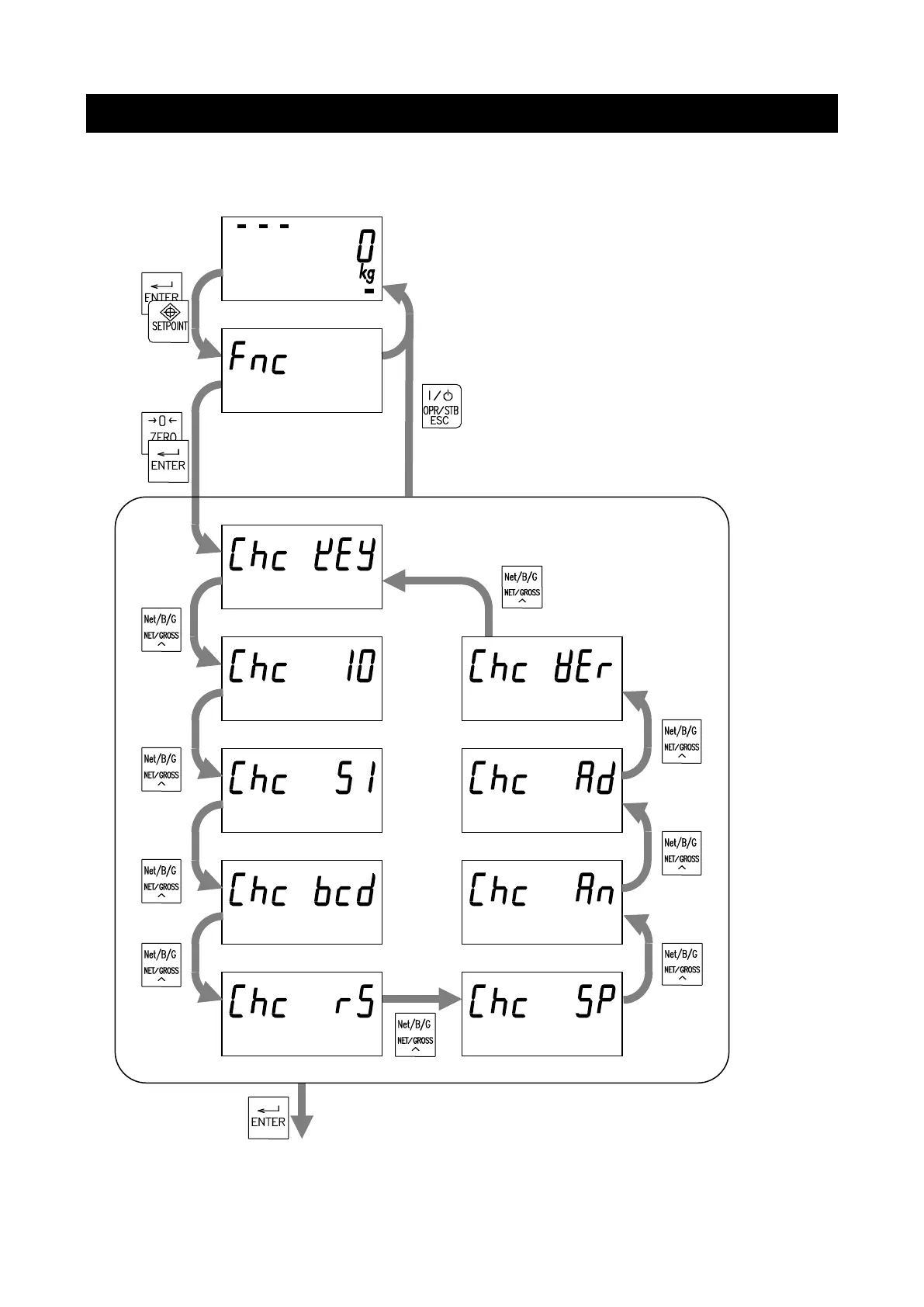

19. Operation Checking
Operations are checked in the checking mode.
Select an operation to be checked and press the ENTER key.
Key switches
Software version
Analog 4-20 mA output
Load cell input
Control input/output
Standard serial output
BCD output
RS-422 / 485, RS-232C
Setpoint input
Select an operation to be checked
To each checking mode
