AD-4401A
Page 33
10. Control I/O
10.1. Pin Assignment

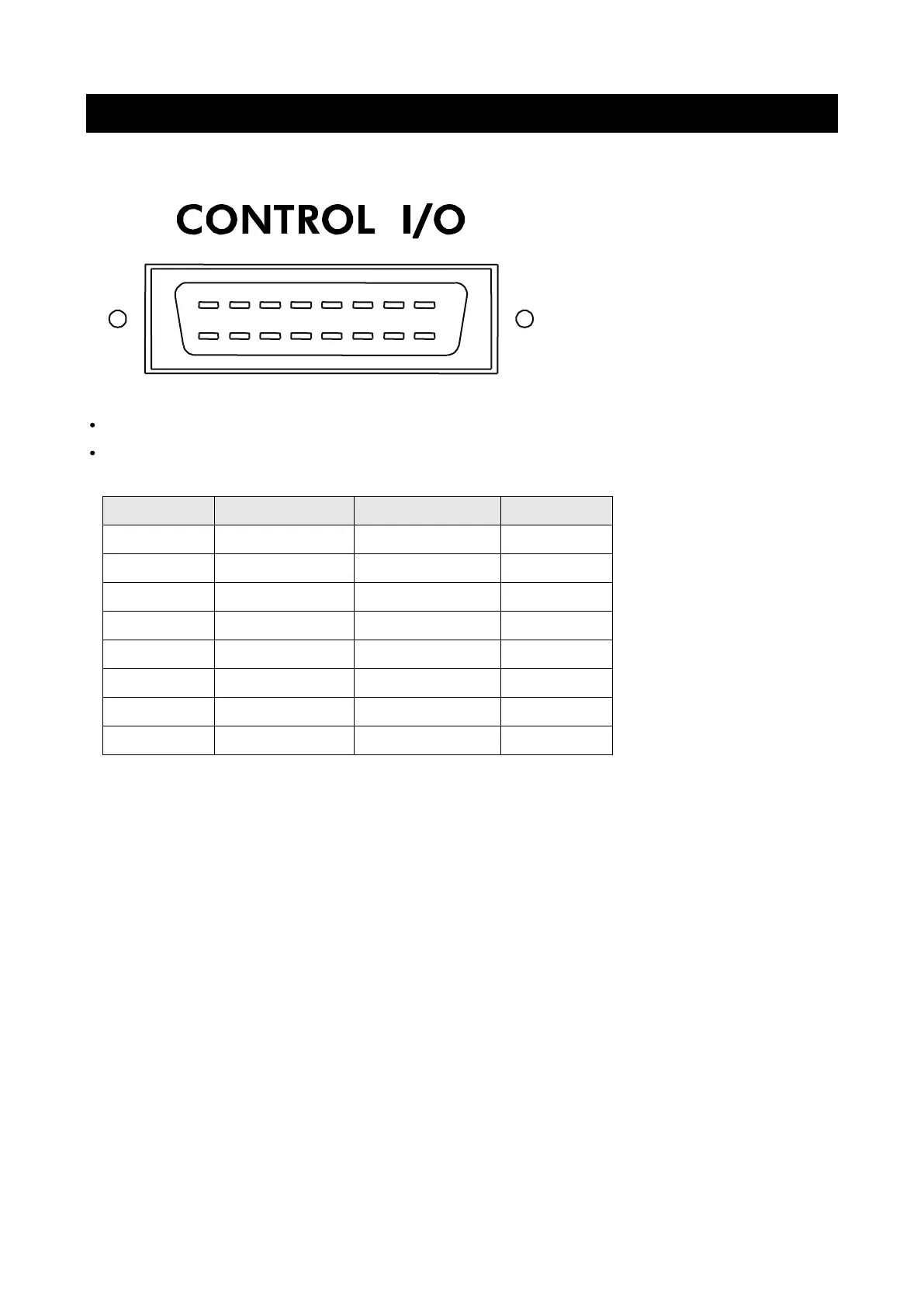

Connector for the Control I/O
Connector: OTAX N361J016AU (A&D Part No.: 1JI361J016-AG)
Connector Cover: OTAX N360C016B (A&D Part No.: 1JI360C016-B)
Pin No. Description Description Pin No.
A1 Control input Control output B1
A2 Control input Control output B2
A3 Control input Control output B3
A4 Control input Control output B4
A5 Control input Control output B5
A6 Control input Control output B6
A7 Input common Control output B7
A8 Output common Control output B8
B1
A1
B8
A8
