10.3. Control Input Method

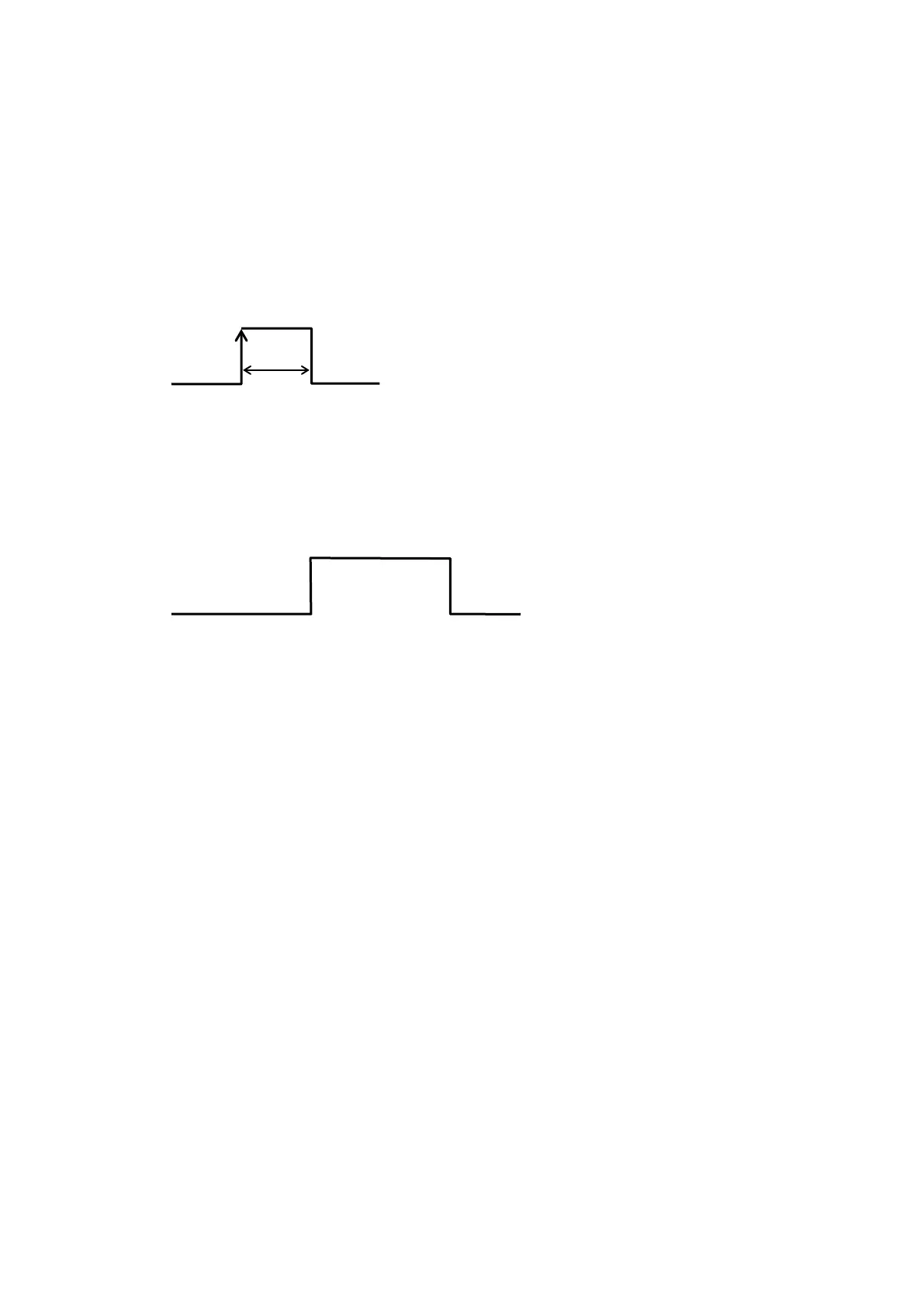

Two methods of control input are available; edge detection and level detection.
Edge detection
Control input is performed when the control input is turned ON (short-circuit) from the OFF state (open-
circuit).
The pulse width is 50 ms or more.
Level detection
Control input is performed while the control input is ON (short-circuit).
P
ulse width: 50 ms or more
ON
OFF
Release
ON
OFF
Hold
Release
