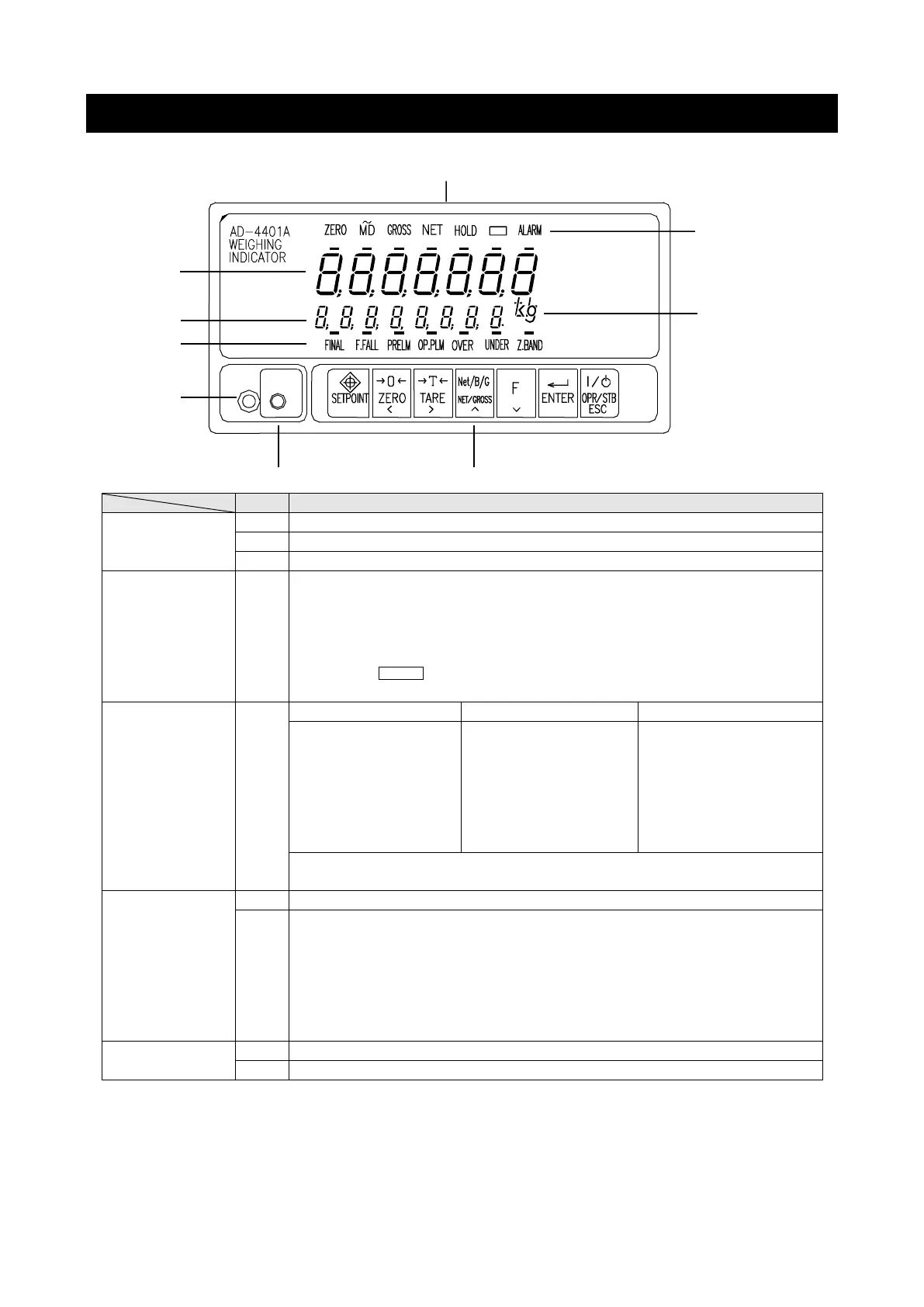

2. Part Names
2.1. Front Panel
No.
Name
Numerical
Display
1
Main
2
Sub
3
Unit
Status Display
(Upper)
4
ZERO
STABLE (MD: Motion detection)
GROSS
NET
HOLD
FUNCTION (FncF-05)
ALARM
Status Display
(Lower) 5
Normal batching
Loss-in-weight batching
Check weighing
Final weight
Free fall
Preliminary
Optional preliminary
Overweight
Underweight
Near-zero (Z.BAND)
Final weight
Free fall
Preliminary
Full
Overweight
Underweight
Near-zero (Z.BAND)
Near-zero (Z.BAND)
Lo-Lo
Lo
Go
Hi
Hi-Hi
Attach the accessory status label when performing loss-in-weight batching
or check weighing.
Key Switches
6
CAL (Calibration) key
7
SETPOINT
ZERO
TARE
NET/GROSS
Function (FncF-02)
ENTER
ON/OFF
Other
8
Rating label (Accessory)
9
Sealing cover
3
2
6
7
8
9
4
1
5
