3. Installation to Control Panel

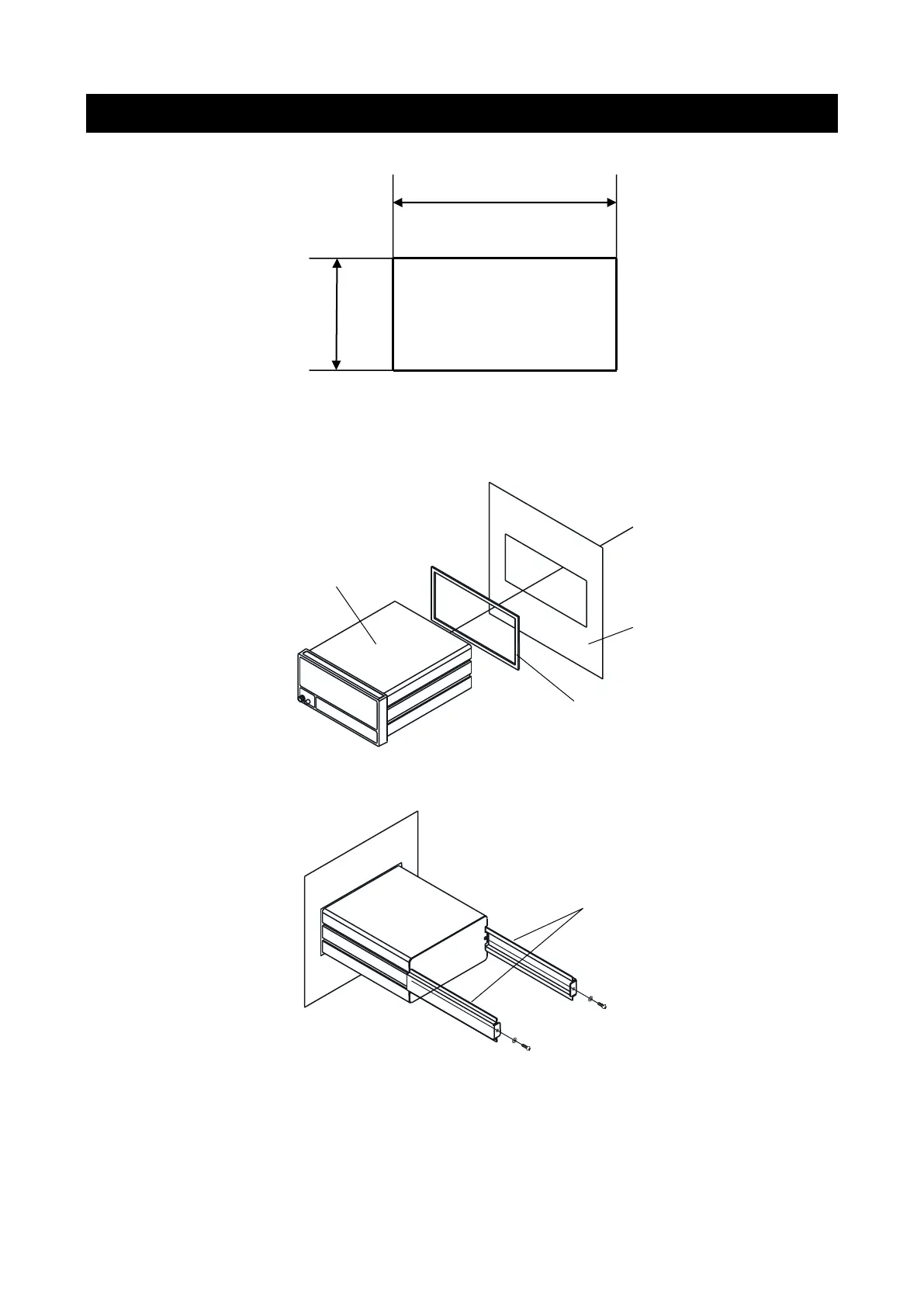

Make a hole in a control panel as shown below.
Remove the slide rails on both sides and insert the AD-4401A with the accessory panel mount packing
through the hole into the panel.
Insert the slide rails from behind.
Unit: mm
Panel thickness: 1.6 to 3.2
138
+1
-0
68
+1
-0
Control panel
AD-4401A
Panel mount packing
Slide rails
