AD-4401A
Page 40

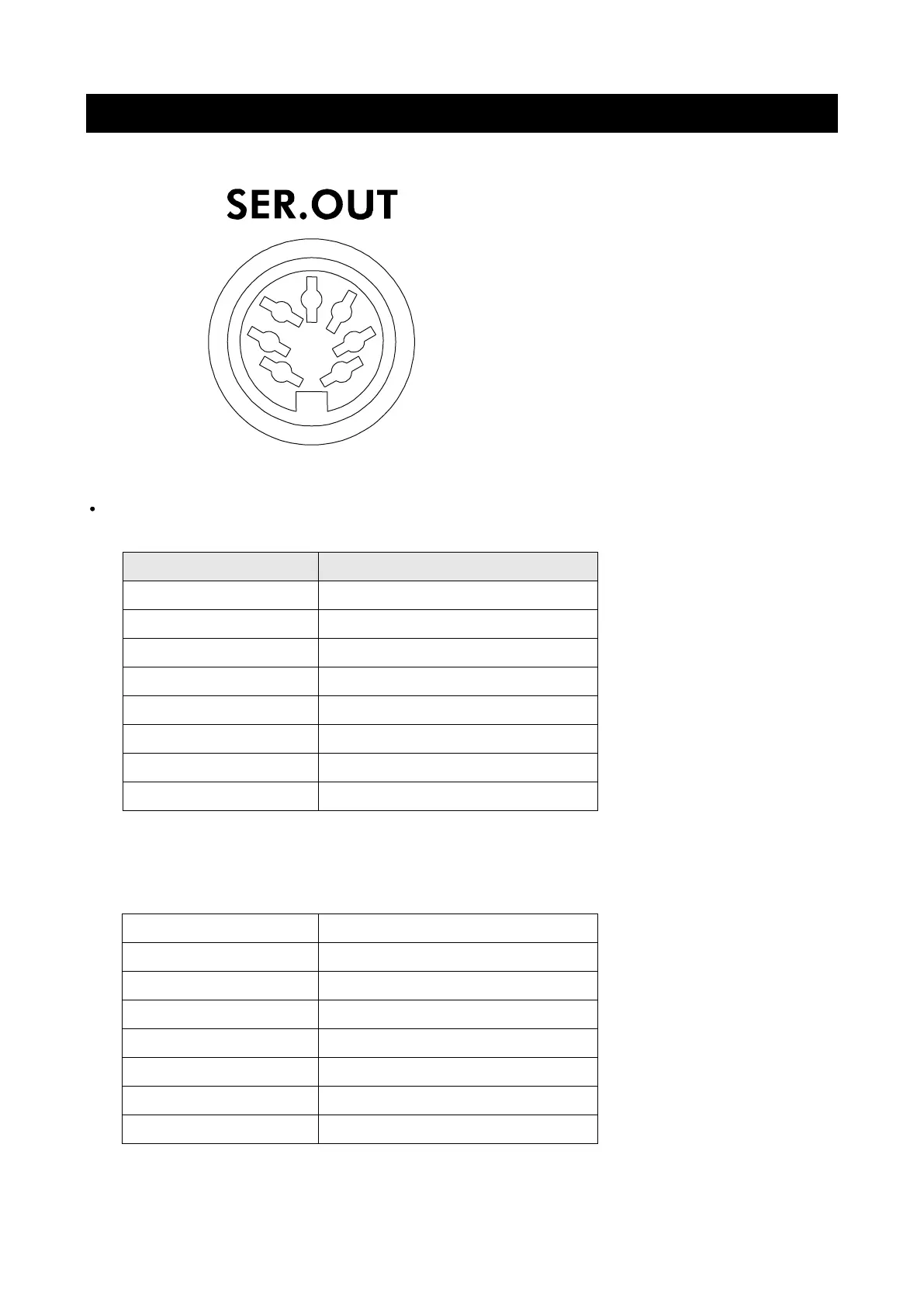

12. Standard Serial (Current Loop) Output
12.1. Pin Assignment
Connector for the standard serial (current loop) output
Connector: Hosiden TCP0576-715267 (A&D Part No.: 1JATCP0576)
Pin No. Description
1 NC
2 Frame ground
3 Current loop output No sign
4 NC
5 Current loop output No sign
6 NC
7 NC
Shell Frame ground
12.2. Communication Specifications
Signal level Current loop 0 to 20 mA
Baud rate (Si F-03) 600, 2400 bps
Character bit length 7 bits
Parity Even
Star bit length 1 bit
Stop bit length 1 bit
Code ASCII
Terminator CR LF
2
1 3
4
5
6
7
