AND AD-4401A - 10.2. Connection Diagram

AD-4401A
Page 34

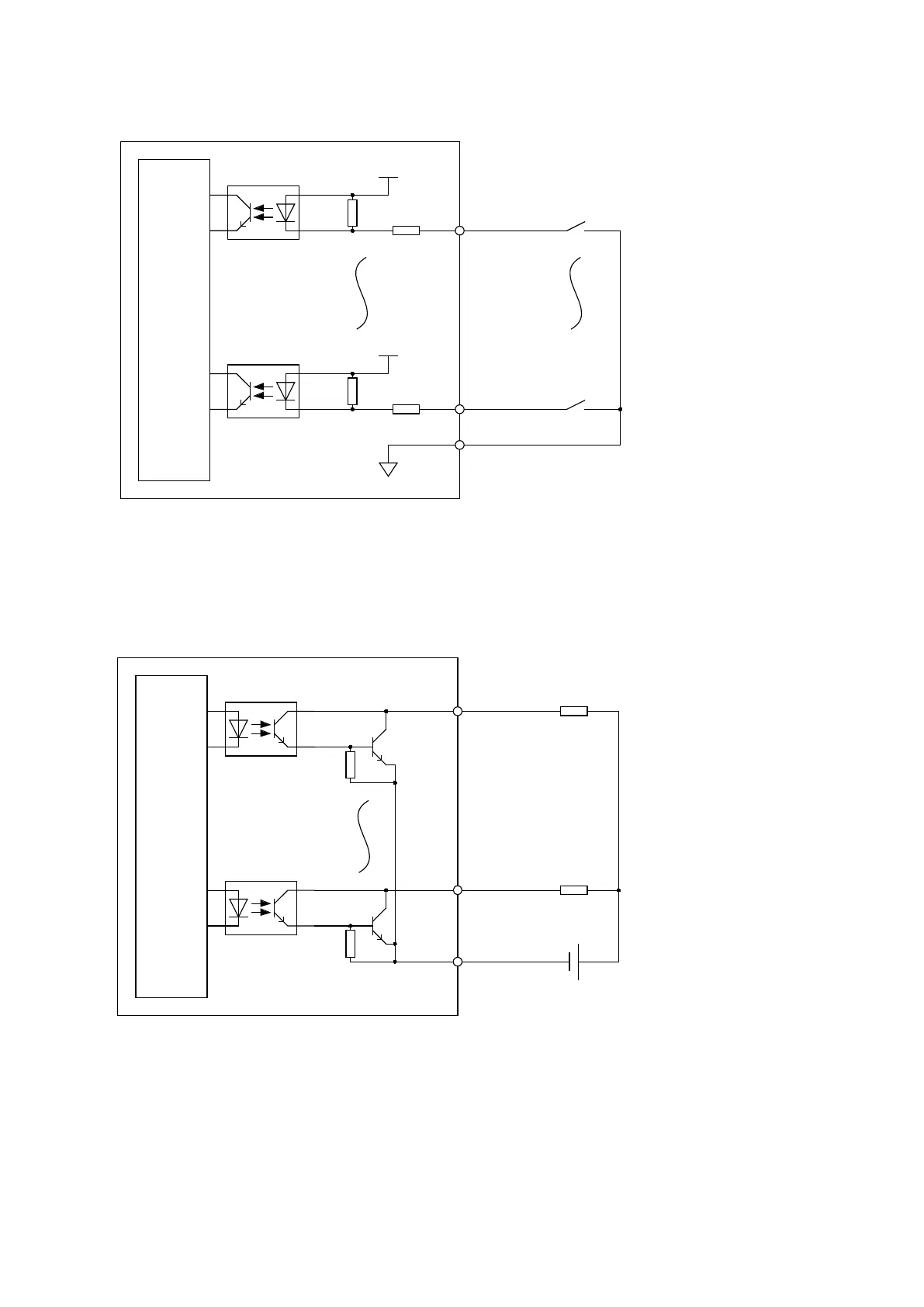

10.2. Connection Diagram
Control input
- ON voltage: 5 V or less
- ON current: 3 mA or more
- OFF current: 1 mA or less
Control output
- Maximum load voltage: 30 VDC
- Maximum load current: 50 mA/point
- Voltage drop at ON: 1 V or less
- Leakage current at OFF: 0.1 mA or less
12 V
680 Ω
3.3 kΩ
A1
A6
Internal
Circuit
A7
B1
B8
A8
3.3 kΩ
Internal
Circuit
