15.2. Connection Diagram

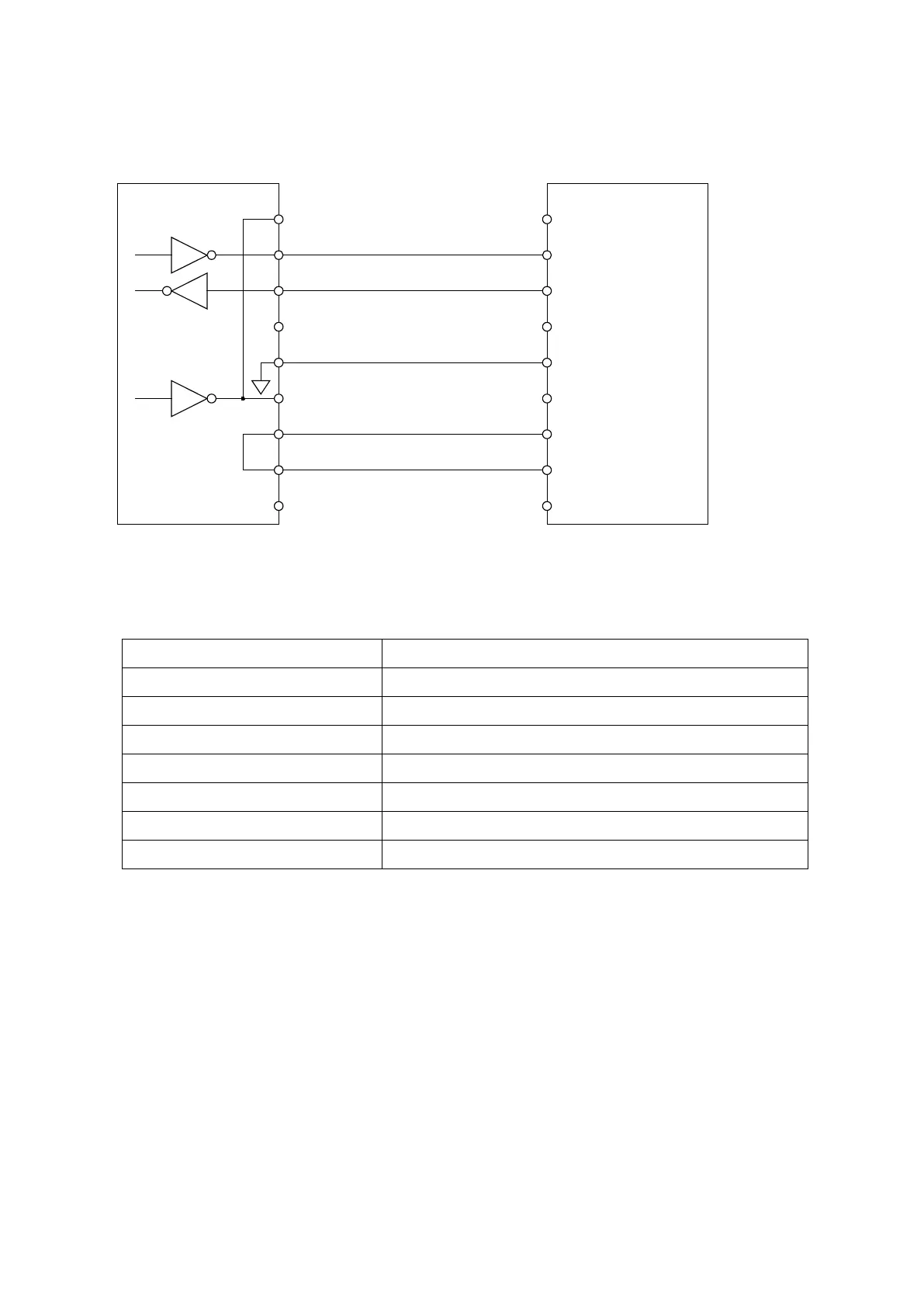

Connection to a PC serial port is as follows.
15.3. Communication Specifications
Signal Level RS-232 compliant
Baud rate (rS F-03) 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 bps
Character bit length (rS F-05) 7, 8 bits
Parity (rS F-04) None, Odd, Even
Start bit length 1 bit
Stop bit length (rS F-06) 1, 2 bits
Code ASCII
Terminator (rS F-07) CR LF, CR
15.4. Output Data, Communication Type
Refer to “14. OPTION-03 RS-422/485” for output data and communication type.
2 RXD
3 TXD
7 RTS
8 CTS
4 DTR
5 GND
1 DCD
6 DSR
9 RI
22 DI
20 DSR
4 CTS
5 RTS
6 DTR
7 GND
3 TXD
2 RXD
8 DCD
AD 4401A
PC
