Figure 3-2 illustrates how to wall or pipe mount the transmitter using the supplied hardware kit.

Determine the mounting method, and attach the hardware as shown.

1. Fasten the wall/pipe adapter to the wall or pipe.

2. Using a blunt tool, open both cable entry knockout holes in the back cover.

3. Insert-and-twist the back cover onto the installed wall/pipe adapter, and tighten its two

screws to lock back cover onto the adapter.

4. Attach transmitter to back cover using its four captive screws.

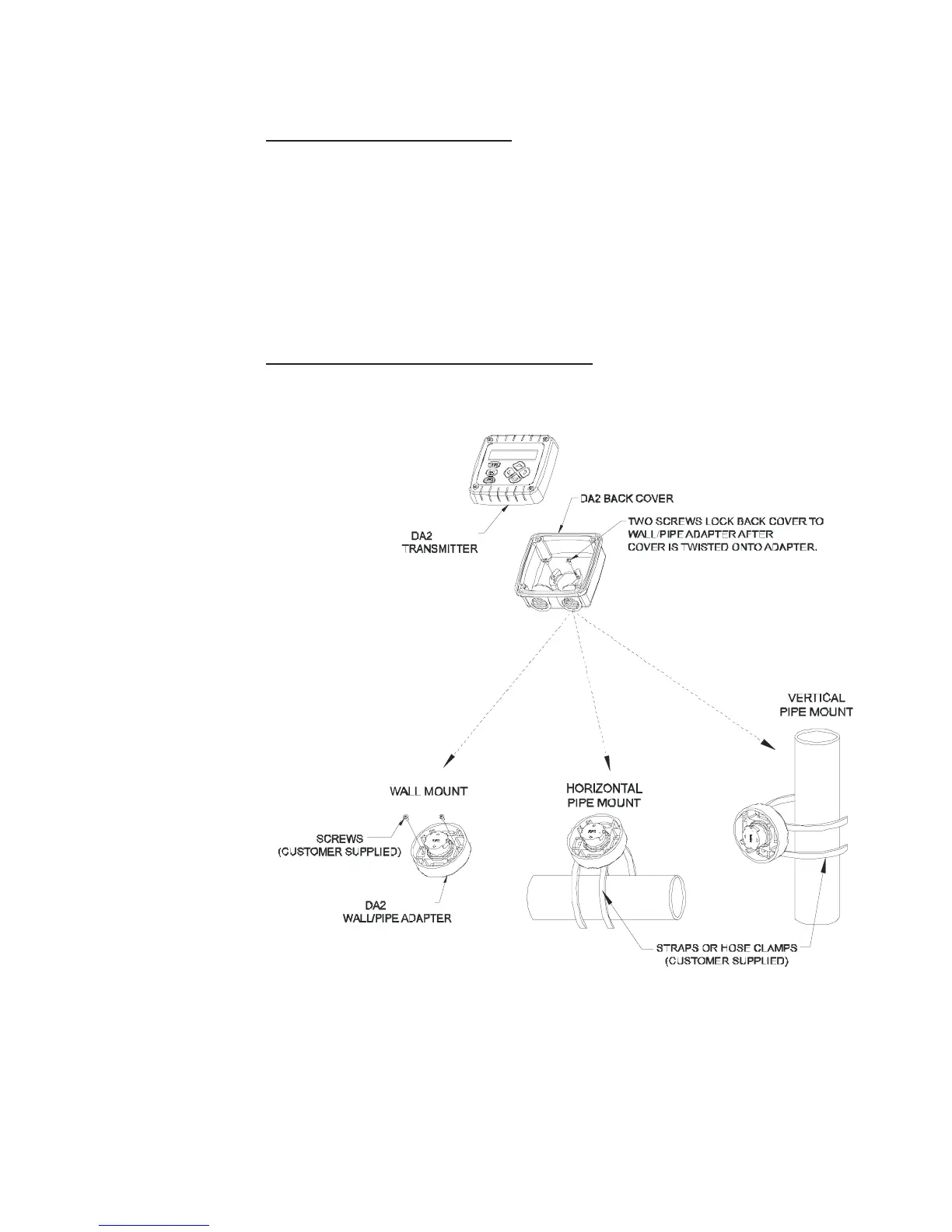

FIGURE 3-2 Wall and Pipe Mounting (DA202A)
