PAGE 20

5.3 MEASURE Screen (normal display mode)5.3 MEASURE Screen (normal display mode)

5.3 MEASURE Screen (normal display mode)

The MEASURE screen is normally displayed. Pressing the MENU key temporarily replaces the

MEASURE screen with the top-level “MAIN MENU

CALIBRATE” branch selection screen.

Using the keypad, you can then display other screens to calibrate, configure or test the

transmitter. If the keypad is not used within 30 minutes, except during calibration or while

using specific transmitter test/ maintenance functions, the display will automatically

return to the MEASURE screen. To display the measure screen at any time, press the MENU

key once and then press the ESC key once.

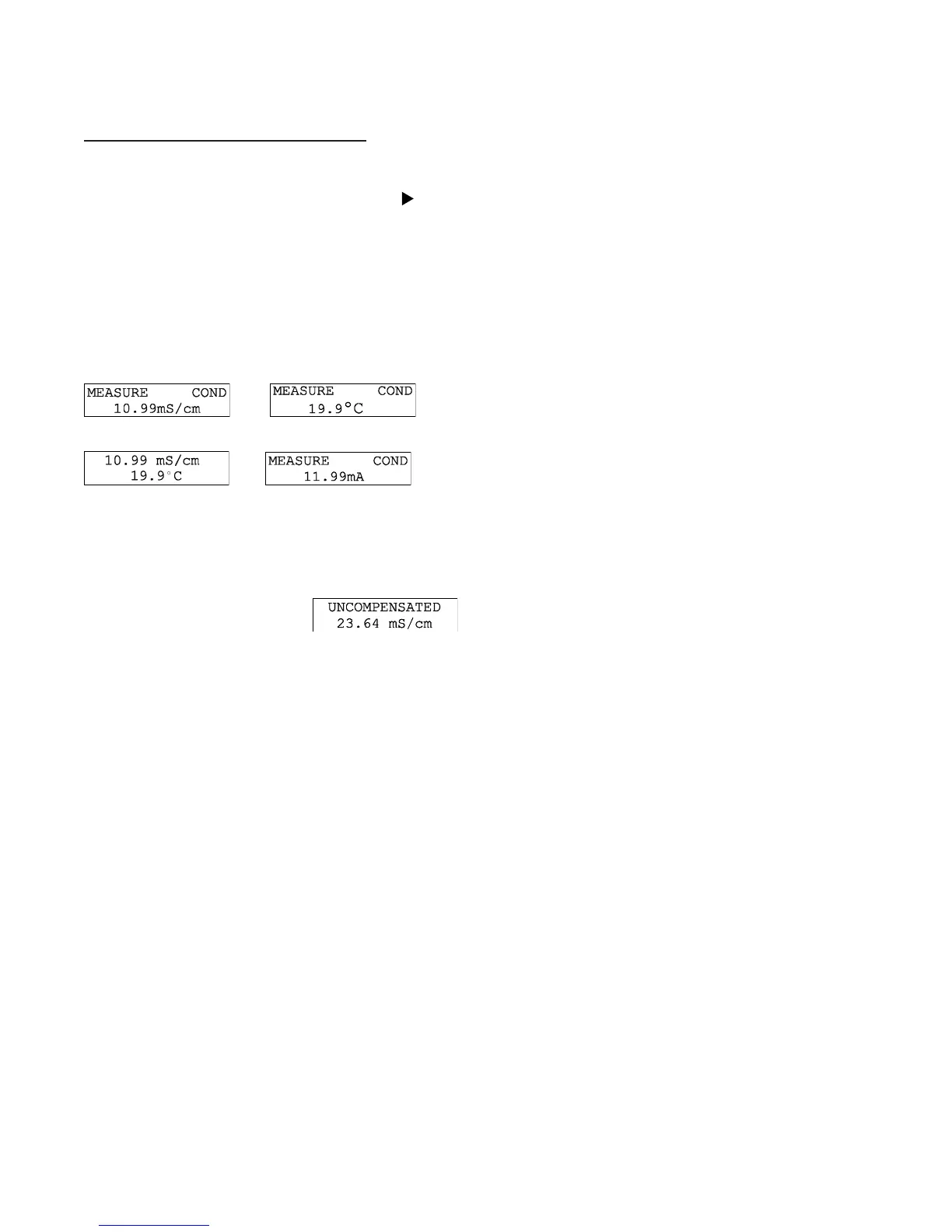

The MEASURE screen can show four different readout versions. To select between them, in

continuous loop sequence, press the

ÕÕ

Õ or

ÖÖ

Ö key. These are examples of the different

versions:

ÖÖ

When set to measure concentration, the transmitter can also show an uncompensated

conductivity reading corresponding to the measured concentration, as illustrated by this

example:

NOTE: When the transmitter returns to its normal MEASURE screen mode, the appearing

readout is always the version last selected.

Note that three MEASURE screen readout examples show the factory-default “cond”

notation on their top lines, illustrating the transmitter notation feature. To create your

own notation, refer to Section 7.2, subheading “ENTER NOTE (top line of MEASURE

screen).”

When the measured value is beyond the transmitter measuring range, a series of “ + “ or “ - “

screen symbols appear, respectively indicating that the value is above or below range.

Anderson DA2 User Manual
