Anderson DA2 User Manual
4
of 1
of 1 rating
56 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
P
AGE
19
•
MEASURE Screen: These keys are non-functional.
•
Menu Screens: Moves up or down respectively between other same-level menu
screens.
•
Edit/Selection Screens: Adjusts selected digit value up or down, or moves up or
down between choices.

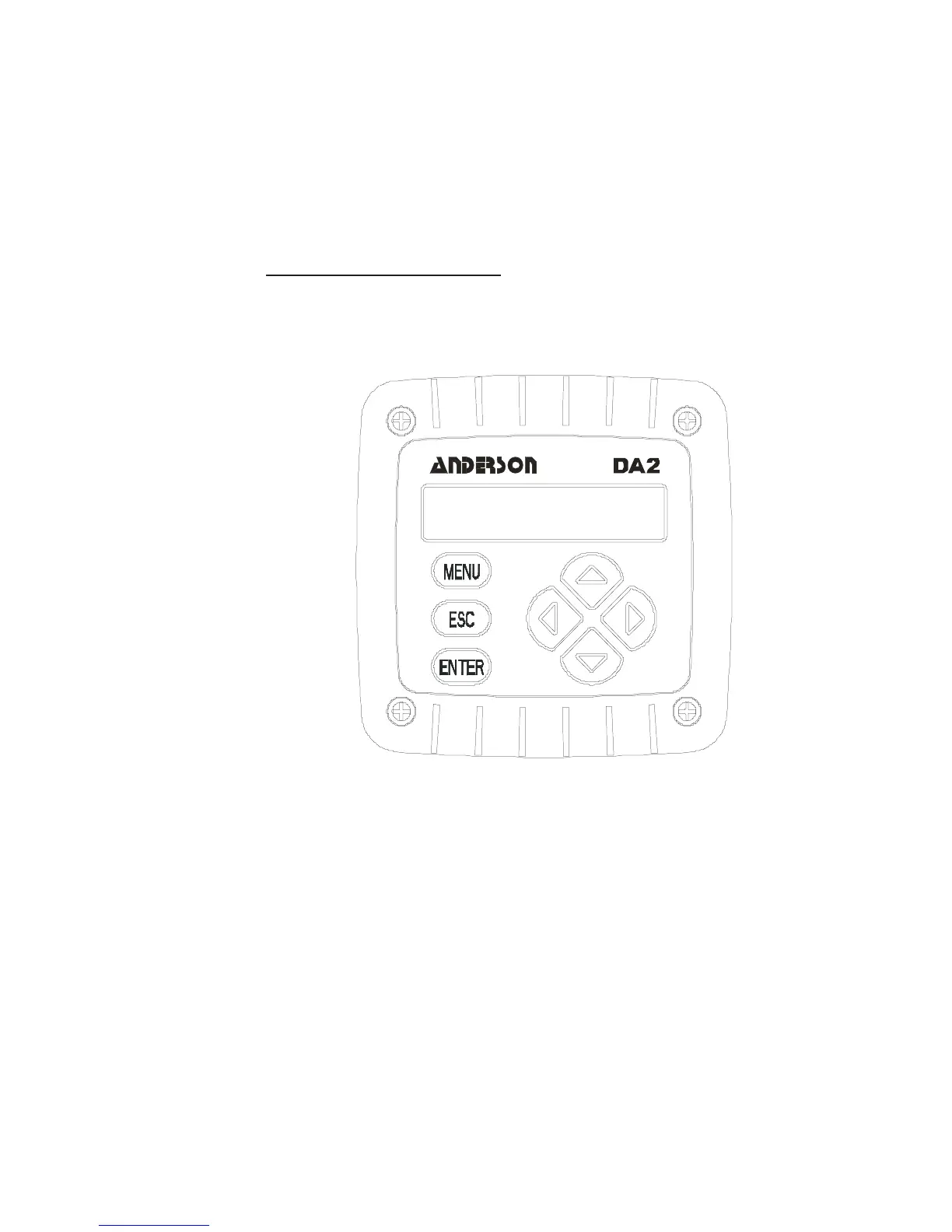

FIGURE 5-1
Transmitter
Keypad
18
20
Table of Contents
Default Chapter
2
Table of Contents
2
T T T T T Able of Contents Able of Contents Able of Contents Able of Contents Able of Contents
2
Section 1 - General Information
4
Capability Highlights
4
Transmitter Safety
4
Retained Configuration Values
5
Transmitter Serial Number
5
EMC Conformance
5
Section 2 - Specifications
6
Operational
6
Transmitter Performance (Electrical, Analog Outputs)
8
Mechanical
8
Section 3 - Physical Installation
9
Location
9
Panel Mounting (DA201A)
10
Wall and Pipe Mounting (DA202A)
11
Integral Sensor Mounting (DA202A with HC1012000 Only)
12
Section 4 - Electrical Connections
13
HC1 Series Electrodless Conductivity Sensor Wiring
14
Two-Wire Hookup
15
Three-Wire Hookup
16
Four-Wire Hookup
17
Section 5 - Operation
18
Display
18
Keypad
18
MEASURE Screen (Normal Display Mode)
20
Section 6 - Menu Structure
21
Displaying Main Branch Selection Screens
21
Displaying Top-Level Menu Screens
22
Displaying Submenu Screens
23
Adjusting Edit / Selection Screen Values
23
Entering (Storing) Edit/Selection Screen Values/Choices
23
Section 7 - Transmitter Configuration
24
Selecting Language to Operate Transmitter
24
Configuring Sensor Characteristics
24
Set °C or °F (Temperature Display Format)
34
Configuring Analog Output
34
SET Passcode (Feature Enabled or Disabled)
36
Configuration Setting Summary
38
Section 8 - Transmitter Calibration
40
Important Information
40
Zero Procedure (First-Time Sensor Calibration Only)
41
Conductivity Calibration
41
Concentration Calibration
45
TDS Calibration
47
Analog Output Calibration
49
Section 9 - Testing & Maintenance
50
STATUS Check (Transmitter and Sensor)
50
Hold Output
51
OUTPUT Test Signal
51
Firmware (EPROM VERSION) Check
51
SELECT SIM Measurment
52
SIM SENSOR Setting
52
RESET CONFIGURE Values to Factory Defaults
53
RESET CALIBRATE Values to Factory Defaults
53
Section 10 - Troubleshooting
54
Keeping the Transmitter Calibrated
54
Avoiding Electrical Interference
54
Checking Electrical Connections
54
Verifying Sensor Operation
54
Verifying Transmitter Operation
54
Verifying Interconnect Cable Integrity
55
Section 11 - Ordering Matrix
55
Section 12 - Warranty and Return Statement
56
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Anderson DA2 and is the answer not in the manual?
Ask a question
