PAGE 12
3.4 Integral Sensor Mounting (DA202A with HC1012000 only)3.4 Integral Sensor Mounting (DA202A with HC1012000 only)
3.4 Integral Sensor Mounting (DA202A with HC1012000 only)3.4 Integral Sensor Mounting (DA202A with HC1012000 only)
3.4 Integral Sensor Mounting (DA202A with HC1012000 only)
Figure 3-3 illustrates how to integrally mount the transmitter onto a sensor using the supplied
mounting hardware kit.
1. Using a blunt tool, open knockout hole in bottom of swivel ball for routing the sensor
cable.
2. Attach swivel-mount assembly onto back end of sensor using a stainless steel 1/2”
NPT female close coupling that you provide. Be sure to tape the NPT threads to
prevent moisure ingression
3. Insert-and-twist the back cover onto the installed swivel-mount assembly. Tighten its
two screws to lock the back cover onto the swivel-mount assembly.
NOTE: To change mounting angle, loosen swivel-mount assembly by lifting tab on bottom of
swivel nut. Position to desired angle and re-tighten swivel nut.
4. Attach transmitter to back cover using its four captive screws.

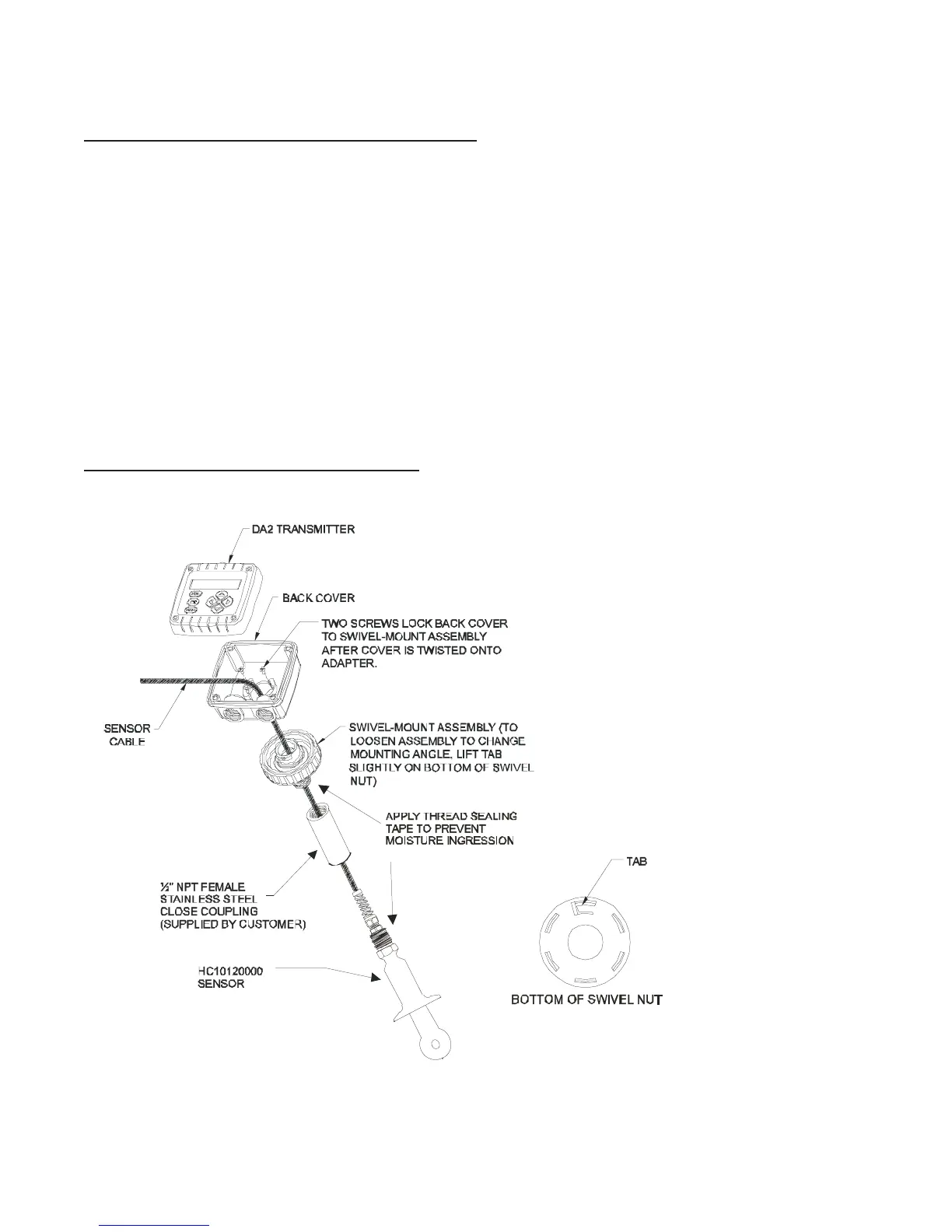

FIGURE 3-3 Integral Sensor Mounting (DA202A)
