Anderson DA2 User Manual

PAGE 16
4.3 Three4.3 Three
4.3 Three4.3 Three
4.3 Three
--
--
-
Wire HookupWire Hookup
Wire HookupWire Hookup
Wire Hookup
In a three-wire hookup, the transmitter can be wired two ways depending on load “sinking” or
“sourcing”. At least 14 VDC is required for operation.
Depending on how the transmitter is mounted, route the DC power, analog output, and wiring
into the transmitter as follows:
• Wall/Pipe-mounted Transmitter: Route cable through right side cable entry knockout
hole in the back cover.
• Panel-mounted Transmitter: Route cable behind panel to the exposed TB1 terminal
strip.
• Integral Sensor-mounted Transmitter: Route cable through right side cable entry
knockout hole in the back cover. (Do not open left side cable entry knockout hole in
cover).
Wiring Tip! Use high quality, shielded instrumentation cable.

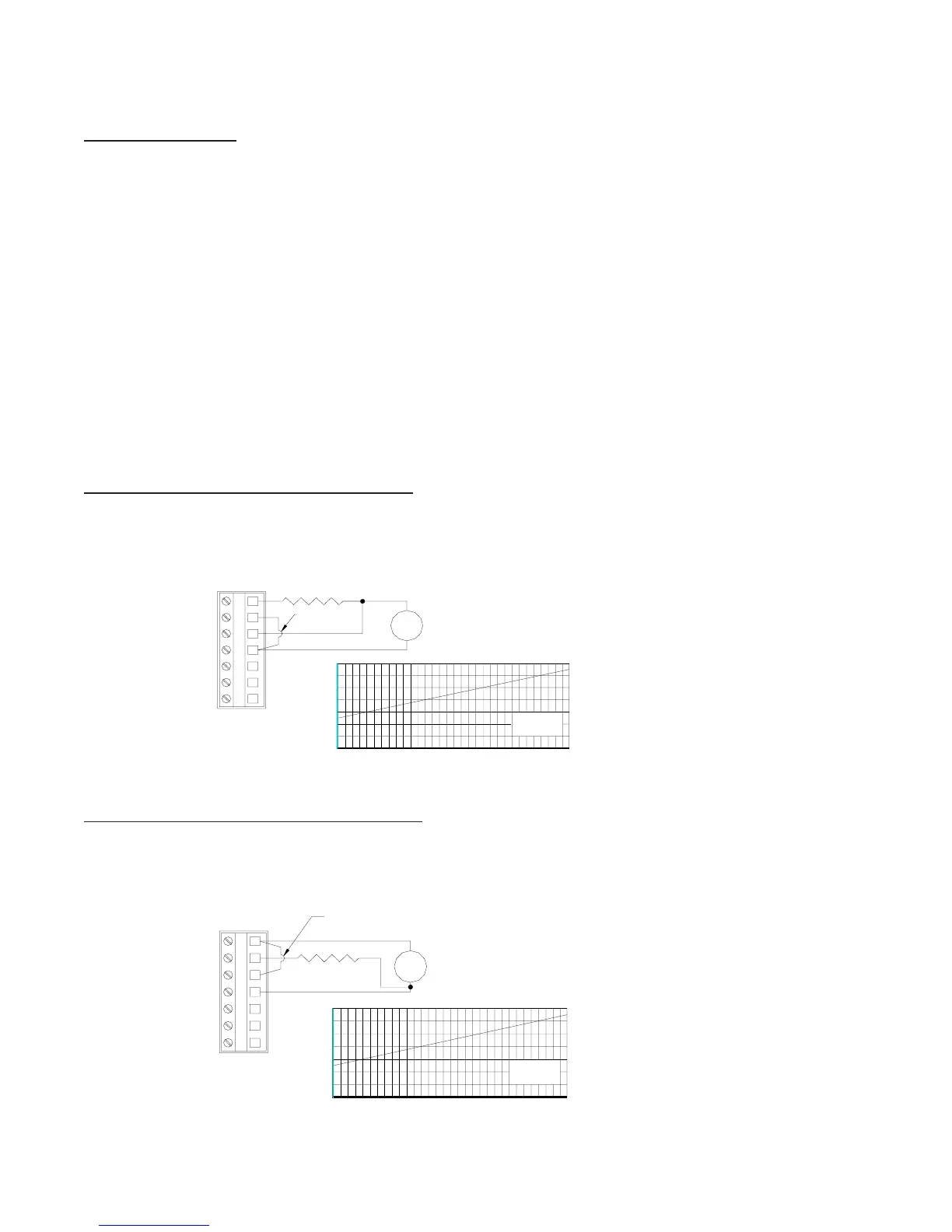

FIGURE 4-4 Three-Wire Hookup - Load Sinking
+
1
2
3
4
5
6
7
-
Loop Resistance
(See nomograph)
Jumper
Required
200
0
14 16 18
RESISTANCE
IN OHMS
800
400
600
1000
1200
1400
DC VOLTAGE
20 22 24 26 28 30
50 Ohms/Volt
LOOP LOAD
Loop Power
14-30VDC
Class 2
FIGURE 4-5 Three-Wire Hookup - Load Sourcing
+
1
2
3
4
5
6
7
-
Loop Resistance
(See nomograph)
Jumper Required
200
0
14 16 18
RESISTANCE
IN OHMS
800
400
600
1000
1200
1400
DC VOLTAGE
20 22 24 26 28 30
50 Ohms/Volt
LOOP LOAD
Loop Power
14-30VDC
Class 2
