Anderson DA2 User Manual

PAGE 15
4.2 T4.2 T
4.2 T4.2 T
4.2 T
wowo
wowo
wo
--
--
-
Wire HookupWire Hookup
Wire HookupWire Hookup
Wire Hookup
In a two-wire hookup, at least 16 VDC is required for operation. A load device can be connected
in the current loop (see Figure 4-3 for details).
Depending on how the transmitter is mounted, route the DC power/analog output wiring into the
transmitter as follows:
• Wall/Pipe-mounted Transmitter: Route cable through right side cable entry knockout
hole in the back cover.
• Panel-mounted Transmitter: Route cable behind panel to the exposed TB1 terminal
strip.
• Integral Sensor-mounted Transmitter: Route cable through right side cable entry
knockout hole in the back cover. (Do not open left side cable entry knockout hole in
cover).
Wiring Tip! Use high quality, shielded instrumentation cable.

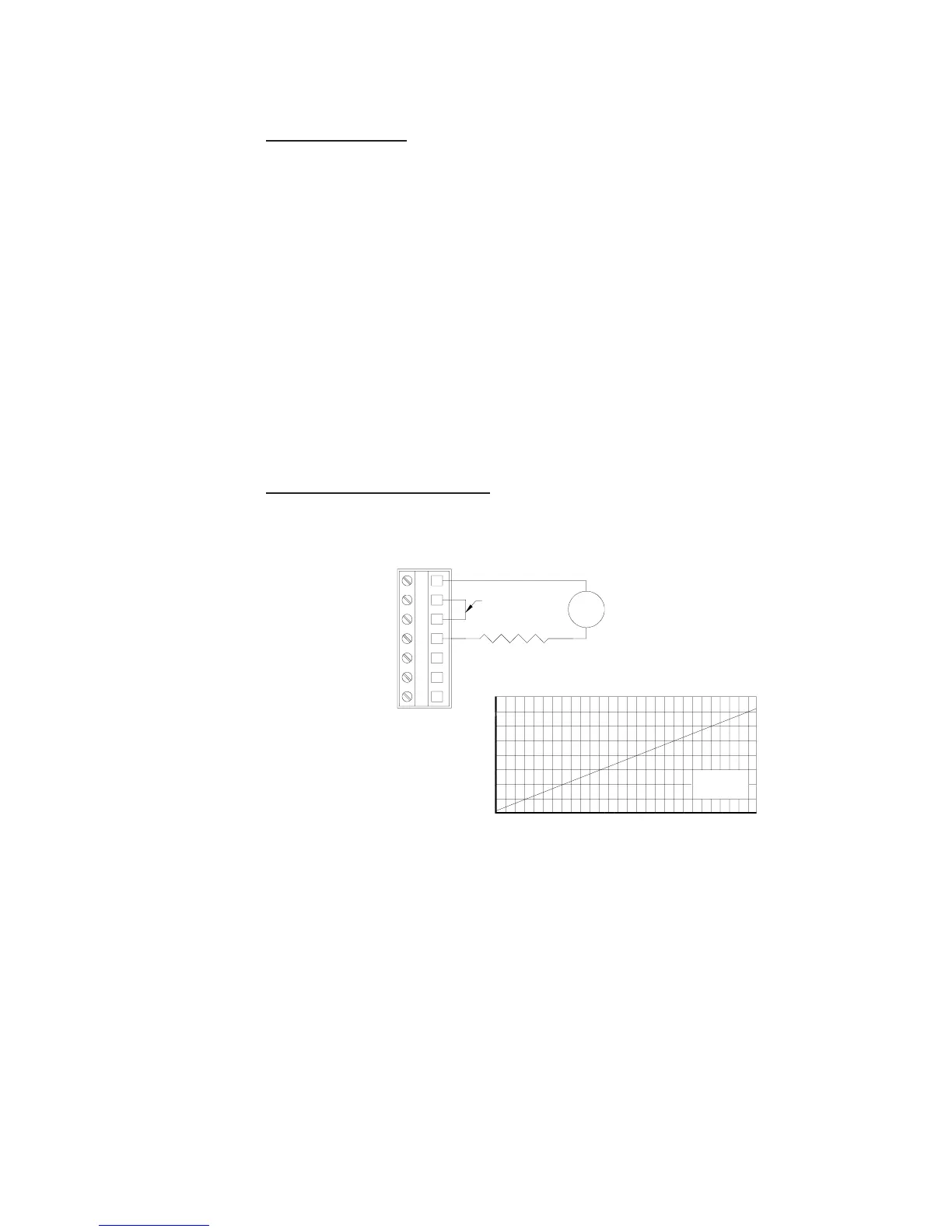

FIGURE 4-3 Two-Wire Hookup
5
7
6
1
3
4
2
-
Loop Power
16-30VDC
Class 2
Loop Resistance
(See nomograph)
+
Jumper
Required
16
0
600
300
RESISTANCE
IN OHMS
100
200
400
500
700
800
30
DC VOLTAGE
18 20 22 24 26 28
50 Ohms/Volt
LOOP LOAD
