PAGE 35
2. Press ENTER key to display .
3. Press ENTER key again to display
. Use
ØØ
ØØ
Ø
and
××
××
×
keys
to select the parameter the output will represent, and press ENTER key to enter it.

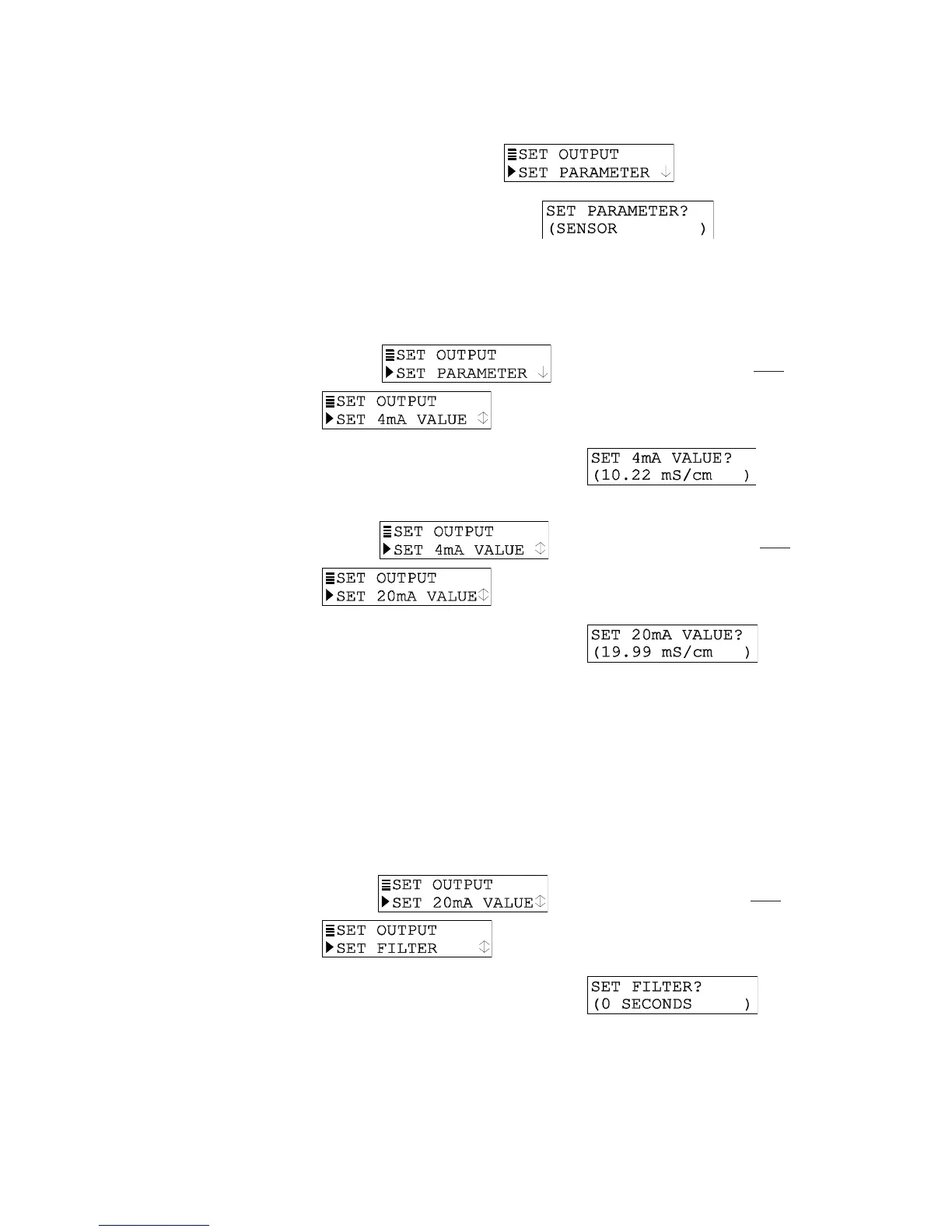

SET 4mA and 20 mA VALUES (range expand)
Parameter values can be set to define the endpoints at which the 4 mA and 20 mA analog
output values are desired.
1. With the
screen displayed, press
ØØ
ØØ
Ø key once to display
.
2. Press ENTER key to display a screen like . Use arrow
keys to set the value at which 4 mA is desired, and press ENTER key to enter it.
3. After the screen re-appears, press
ØØ
ØØ
Ø key once to display
.
4. Press ENTER key to display a screen like
. Use arrow
keys to set the value at which 20 mA is desired, and press ENTER key to enter it.
NOTE: If the same values are set for 4 mA and 20 mA, the output automatically goes to and
remains at 20 mA.
SET FILTER Time
A time constant (in seconds) can be set to filter or “smooth out” the analog output signal. A
minimum value of “0 seconds” has no smoothing effect. A maximum value of “60 seconds”
provides maximum smoothing. Deciding what output filter time to use is a compromise. The
higher the filter time, the longer the analog output signal response time will be to a change in the
measured value.
1. With the screen displayed, press
ØØ
ØØ
Ø key once to display
.
2. Press ENTER key to display a screen like
. Use arrow
keys to adjust to a desired filter time, and press ENTER key to enter it.
