5-15 EVDO Signal Analyzer Verification, Options 62 and 63 Option Verification
5-72 PN: 10580-00255 Rev. J MT8212E and MT8213E MM
Setup
8-PSK Modulation Channel Power, Frequency Error, Rho, and Tau Verification
The tests in this section verify the function of the optional EVDO Signal Analyzer in the Model MT821xE
Cell Master.
Procedure
1. Calibrate the power sensor.
2. Connect the equipment as shown in Figure 5-13.
3. On the power meter, press the Sensor key, the Cal Factor soft key, and then the FREQ soft key. Use the
keypad to enter 870.03 MHz as the input signal frequency, which sets the power meter to the proper
power sensor calibration factor. Press the System key to display the power reading.
4. Set the MT821xE mode to EVDO Signal Analyzer. Preset the instrument.
5. On the MG3700A, press the Preset key (Yellow key on the upper left-hand side).
6. Press the Down Arrow key or turn the knob to select Yes.
7. Press the Set key.

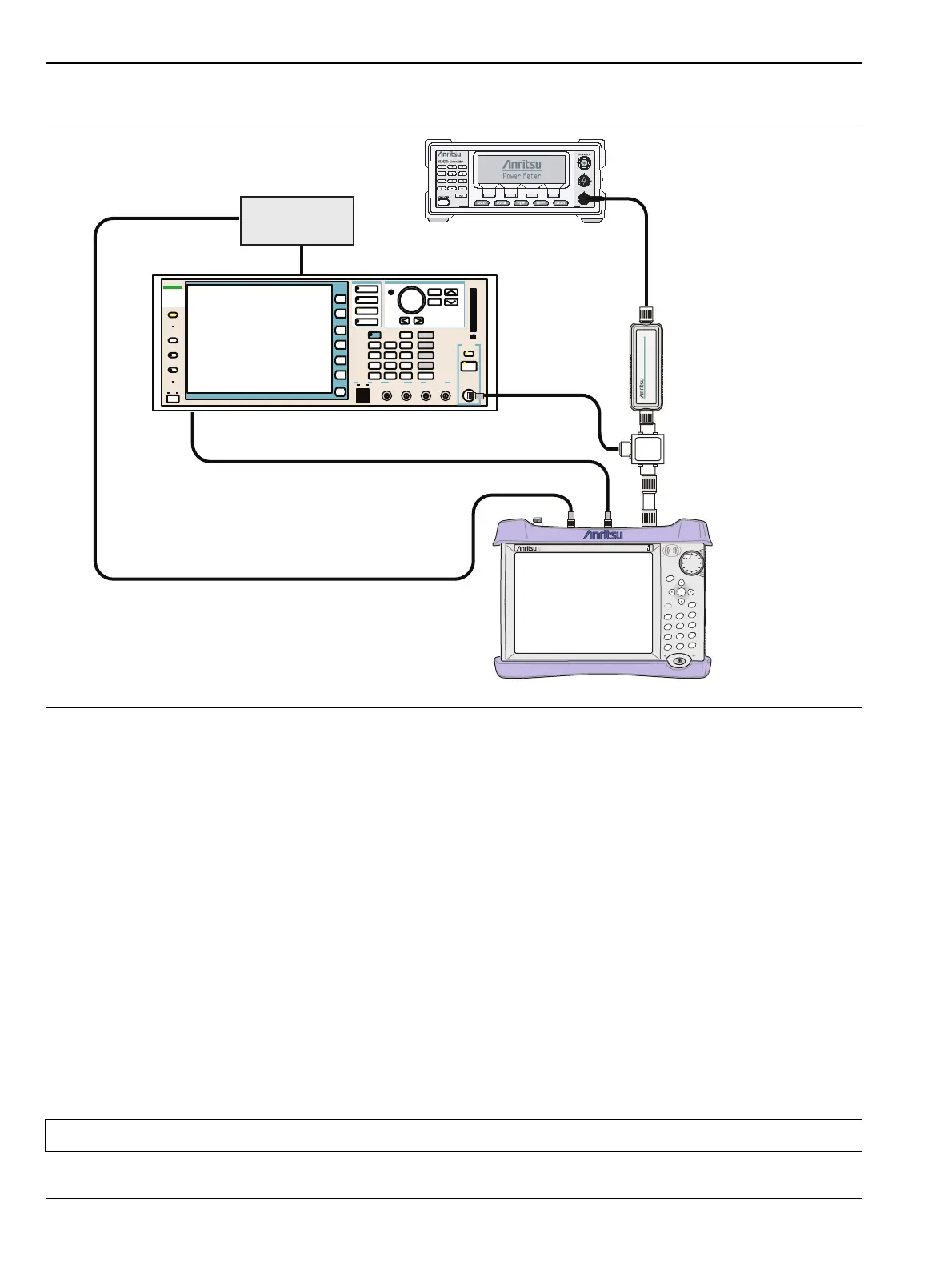

Figure 5-13. EVDO Signal Analyzer Option Verification
Note The MG3700A has two Set keys, and they both have the same function.
MT821xE Cell Master
Power Charge
+/-
.
0
3
Sweep
2
Calibrate
1
Preset
6
Limit
5
Trace
4
Measure
9
Mode
8
System
7
File
Shift
Back
Enter
ESC
CellMaster
MT8212E
MG3700A Vector Signal Generator
Function
Ethernet
Control Input
Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
ML2438A Power Meter
MA2482D
Power Sensor
1870A
Power Splitter
N(m) to N(m) Adaptor
10 MHz
Reference
From: VSG AUX Input/Ouput Connector 1
To: MT821xE Ext Trigger In
From: 10 MHz Reference
To: MT821xE Ext Reference
