Option Verification 5-19 LTE Signal Analyzer Verification, Options 541 and 542
MT8212E and MT8213E MM PN: 10580-00255 Rev. J 5-101
Procedure
LTE Channel Power Accuracy Tests (Option 541)
The tests in this section verify the function of the optional LTE Signal Analyzer in Model MT821xE
Cell Master..
Procedure
1. Connect the MA2482D Power Sensor to the power meter and zero the sensor.
2. Set the Power Meter Measurement MODE to True RMS, set Averaging MODE to Moving, and set
Averaging NUMBER to 256.
3. Set the calibration factor frequency of the power sensor to 750 MHz.
4. Connect the equipment as shown in Figure 5-21
5. Set the MG3700A as follows:

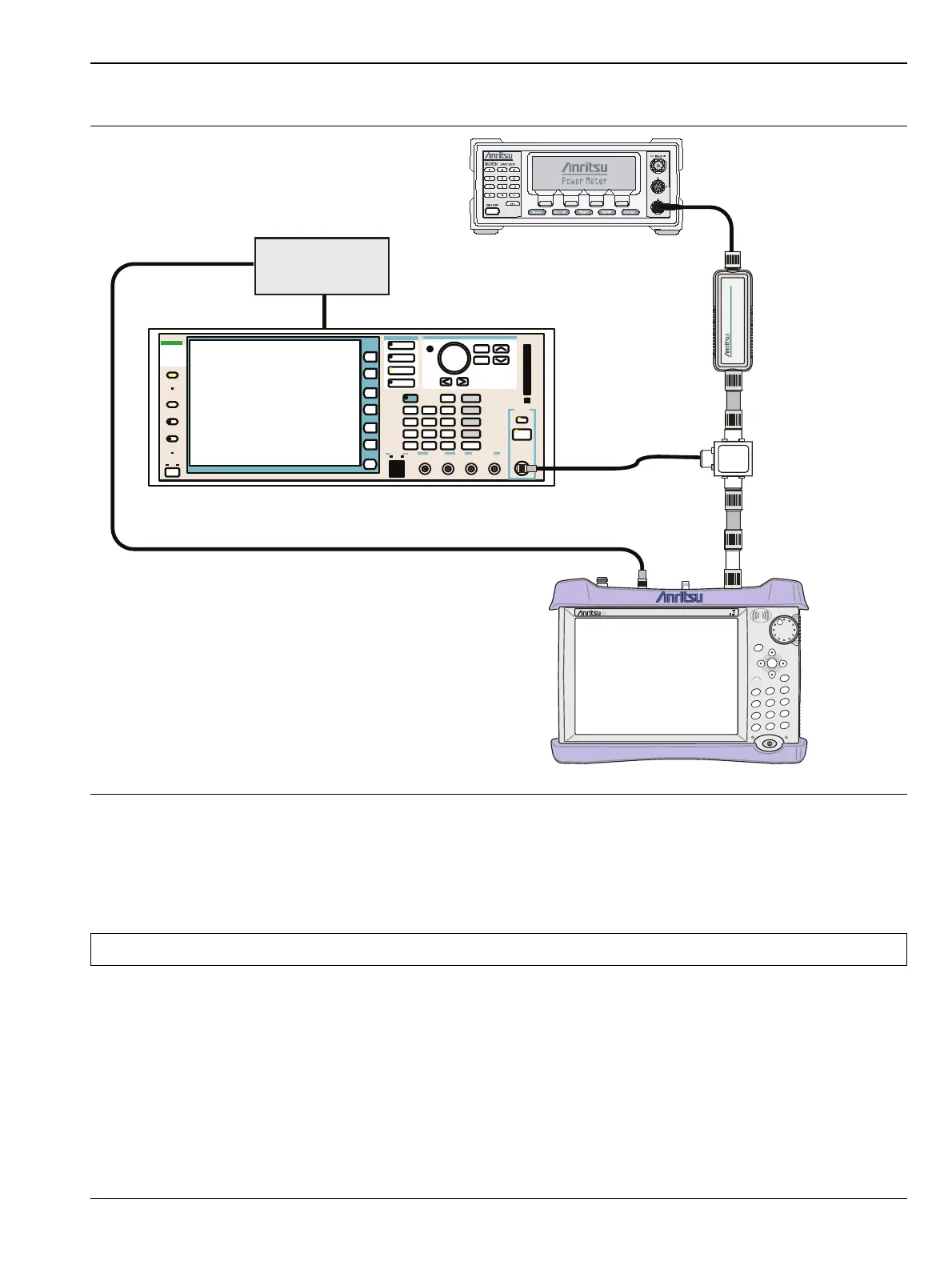

Figure 5-21. LTE Signal Analyzer Option Verification
Note The LTE pattern requires a Waveform Data license MX370108A that must be purchased.
MT821xE Cell Master
Power Charge
+/-
.
0
3
Sweep
2
Calibrate
1
Preset
6
Limit
5
Trace
4
Measure
9
Mode
8
System
7
File
Shift
Back
Enter
ESC
CellMaster
MT8212E
MG3700A Vector Signal Generator
Function
Ethernet Control Input Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
ML2438A Power Meter
MA2482D
Power Sensor
1870A
Power Splitter
10 MHz
Reference
10 dB Attenuator
10 dB Attenuator
34NN50A Adapter
