Anritsu Spectrum Master MS2720T User Manual

Spectrum Analyzer 2-20 Carrier to Interference Ratio Measurement
Spectrum Analyzer MG PN: 10580-00349 Rev. H 2-27
The following figures show the C/I measurement steps: ready to measure the carrier
(Figure 2-13), with the carrier measured (Figure 2-14), and the measurement results
(Figure 2-15).

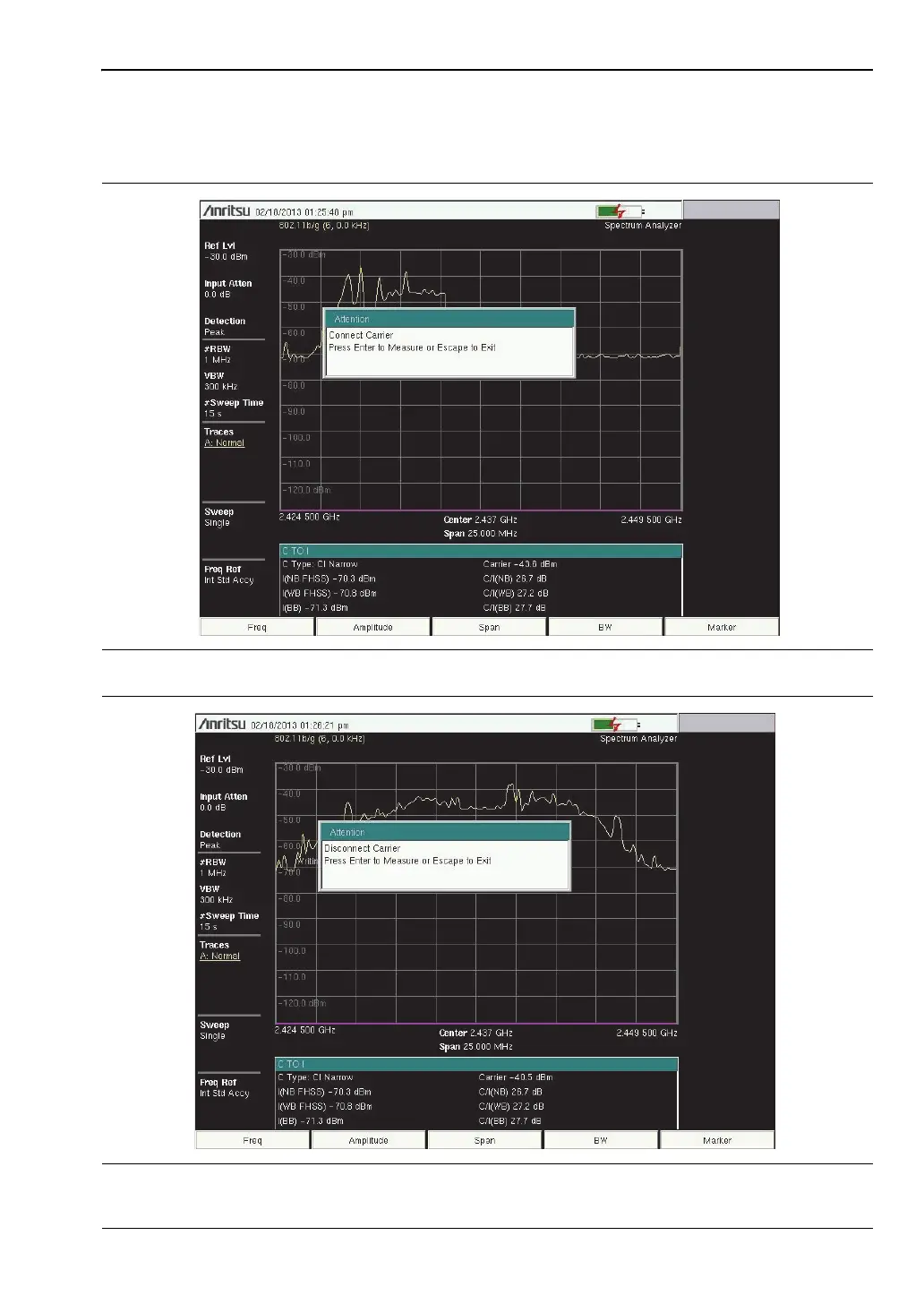

Figure 2-13. C/I Measurement, Ready to Measure the Carrier
Figure 2-14. C/I Measurement, Carrier Measured
