Anritsu Spectrum Master MS2720T User Manual

Spectrum Analyzer 2-25 Spectrum Analyzer Menus
Spectrum Analyzer MG PN: 10580-00349 Rev. H 2-45
Measure Menu (5 of 5)

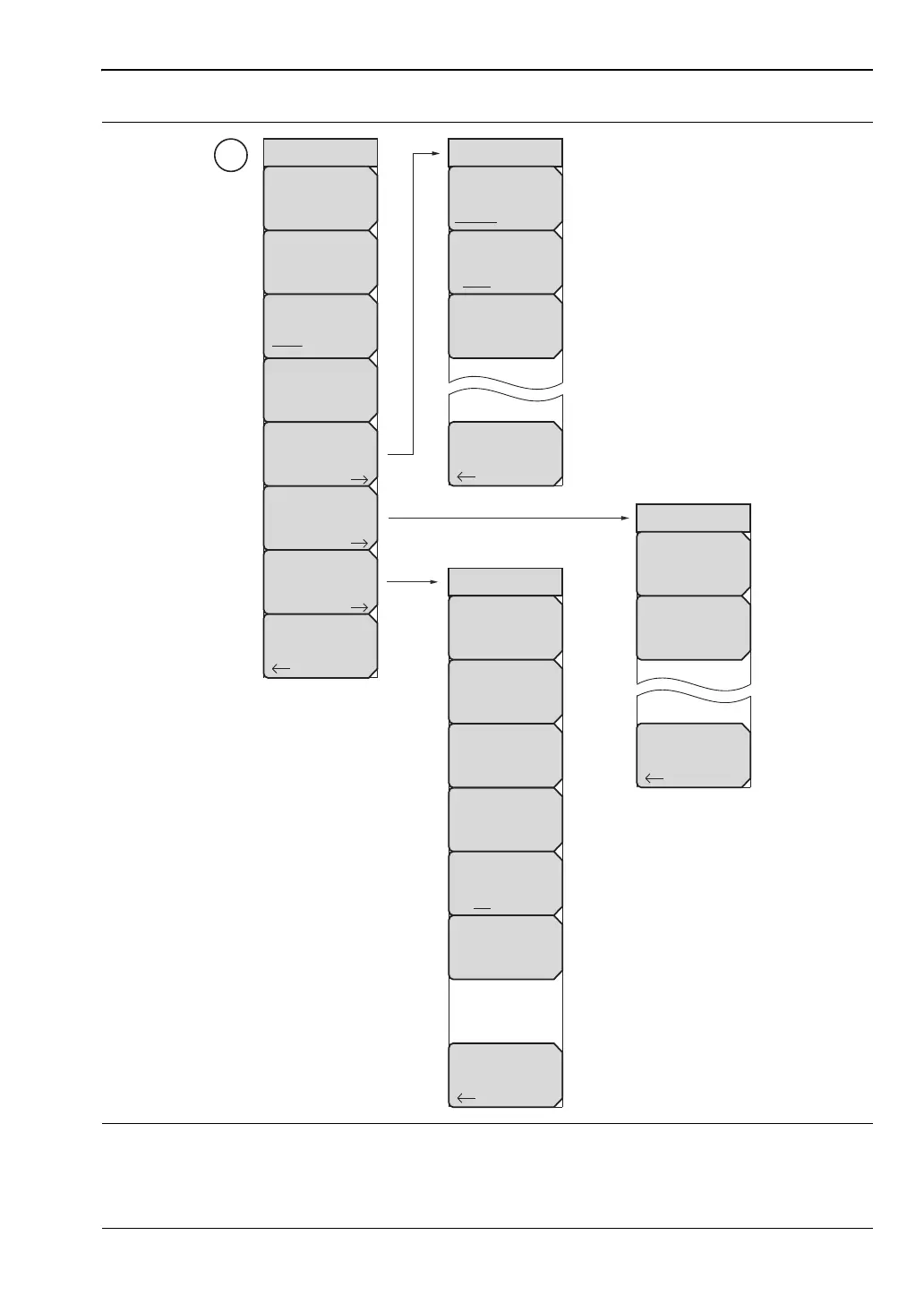

Figure 2-30. IQ Waveform Capture Submenu Keys (Option 24)
Slope
Rising Falling
Capture Triggering
Back
Source
Free Run External
Delay
0 μs
File Name
(Prefix)
Save
Back
Capture
Location
Span
300.000 kHz
Scale
10 dB/div
Freq/Amp
Back
Center Freq
935.000 MHz
Reference Level
10.0 dBm
Auto Atten
On Off
Atten Lvl
0.0 dB
Capture Length
10 ms
Sample Rate
12.500 MHz
IQ Waveform Capture
Back
Start
Capture
Capture Mode
Single Continuous
Triggering
File Name &
Location
Frequency/
Amplitude
G
