Interference Analyzer (Option 25) 3-11 Frequency Menu with Offset Function
Spectrum Analyzer MG PN: 10580-00349 Rev. H 3-35
Frequency Offset Example

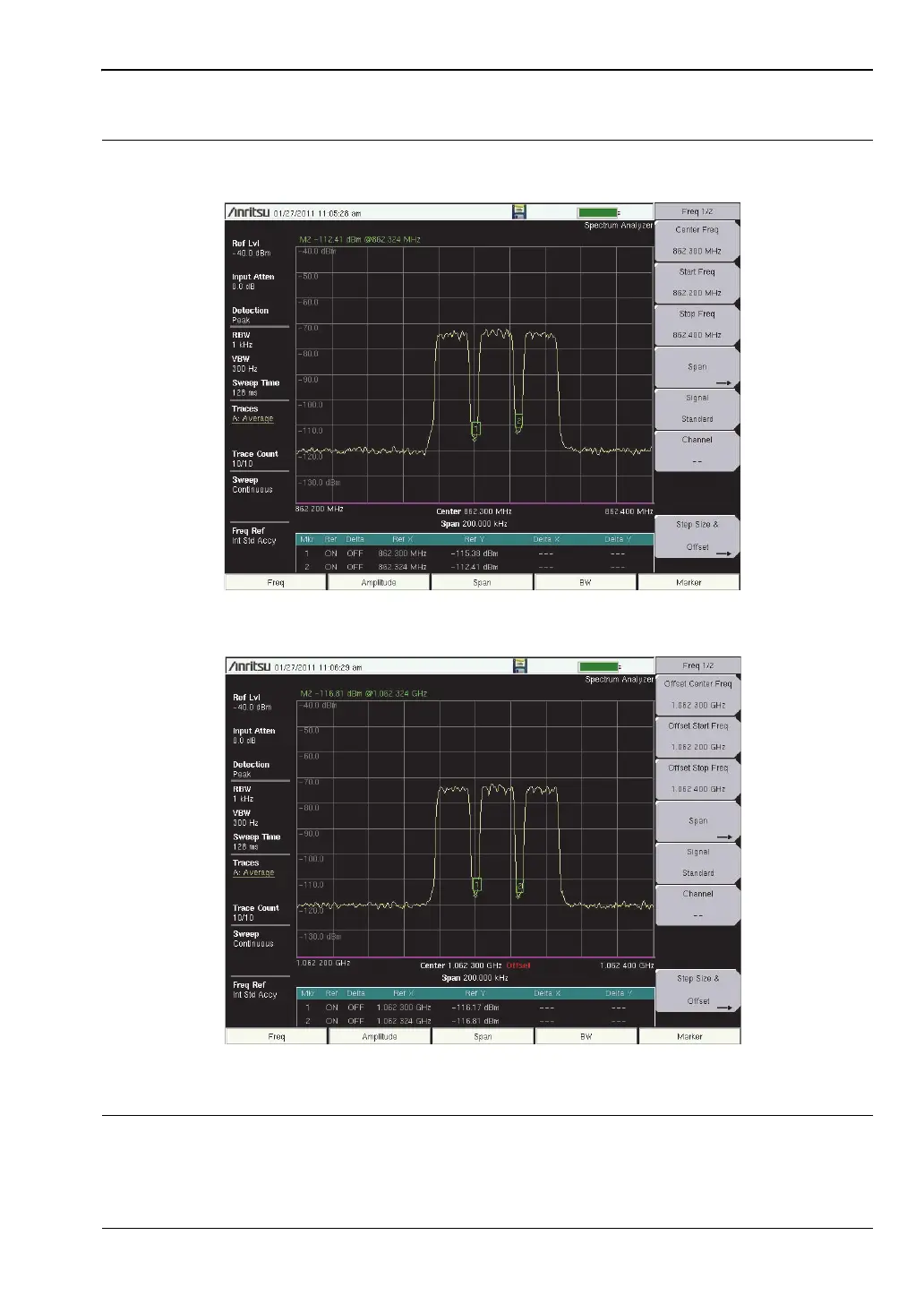

Figure 3-28. 200 MHz Frequency Offset Example
No Offset
+200 MHz Frequency Offset
(Freq > Step Size & Offset > Freq Offset)
Example of Frequency Offset Using the Same Source Signal
