Coverage Mapping (Option 431) 6-4 Coverage Mapping
Spectrum Analyzer MG PN: 10580-00349 Rev. H 6-3
Indoor Coverage
With GPS turned off and a non-GeoEmbedded map file, the user indicates the current
position (+) with the touch screen. On instruments that do not have a touch screen, use the
arrow keys. Previously saved locations are displayed as squares.
Coverage Mapping is a four-step process:
• Create an indoor or outdoor map using “Anritsu easyMap Tools”.
• Load the map and configure the “Instrument Settings” on page 6-5.
• Connect an antenna to the instrument and go to “Map the Signal Strength”
on page 6-7.
• “Save the Coverage Mapping Information” on page 6-9.
Note
The Measurement Setup and Threshold Setting boxes can be used as menu
shortcuts on touch screen instruments.
Use the touch screen to select the parameter to edit.

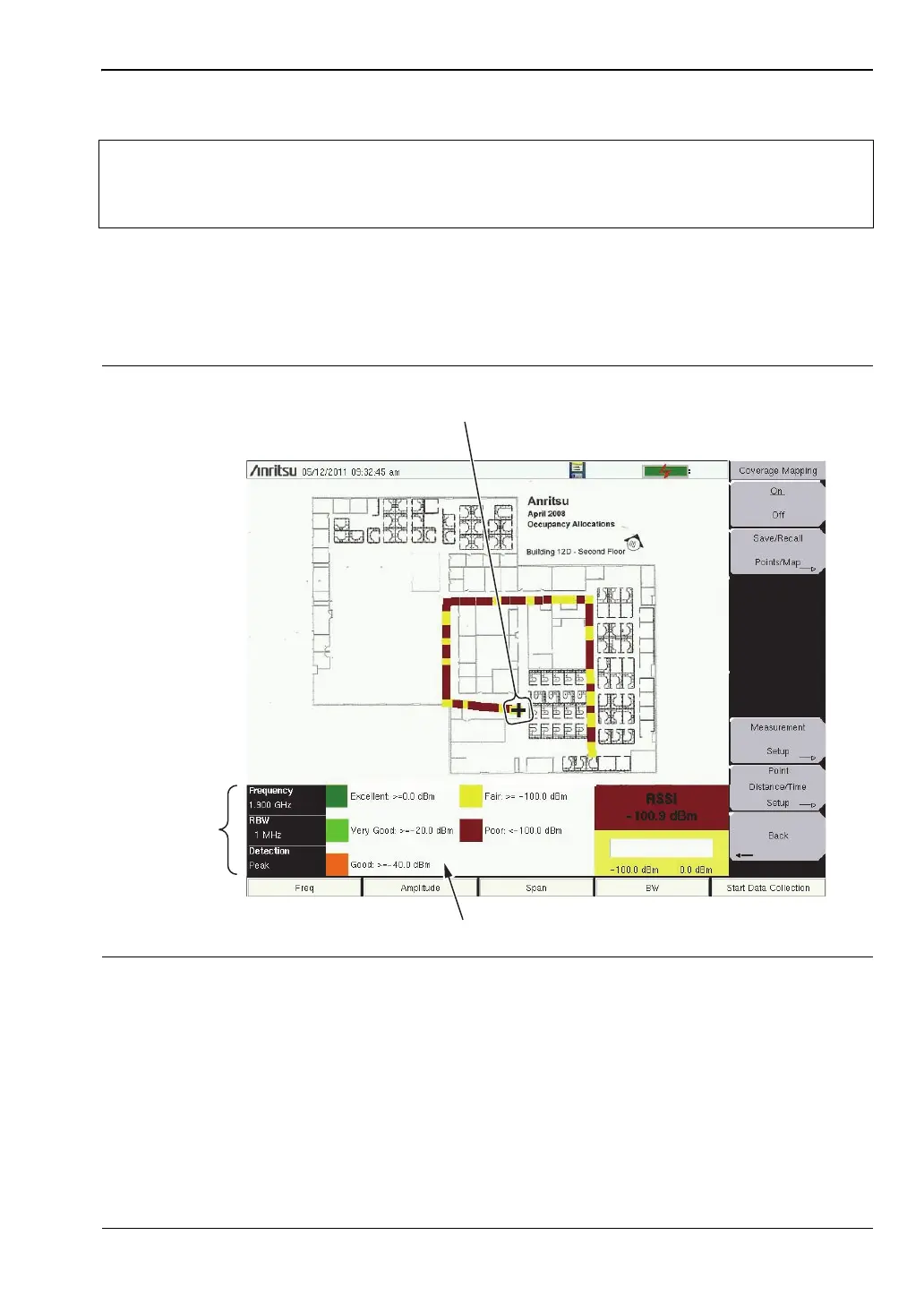

Figure 6-2. Indoor Coverage Mapping (GPS Off)
Current Location
Set with Touchscreen or Arrow Keys
Measurement
Setup
Threshold Settings
