11. Press the Summary submenu key to view all of the signal characteristics in table format.
Press the submenu key again to set the summary average or the squelch level.

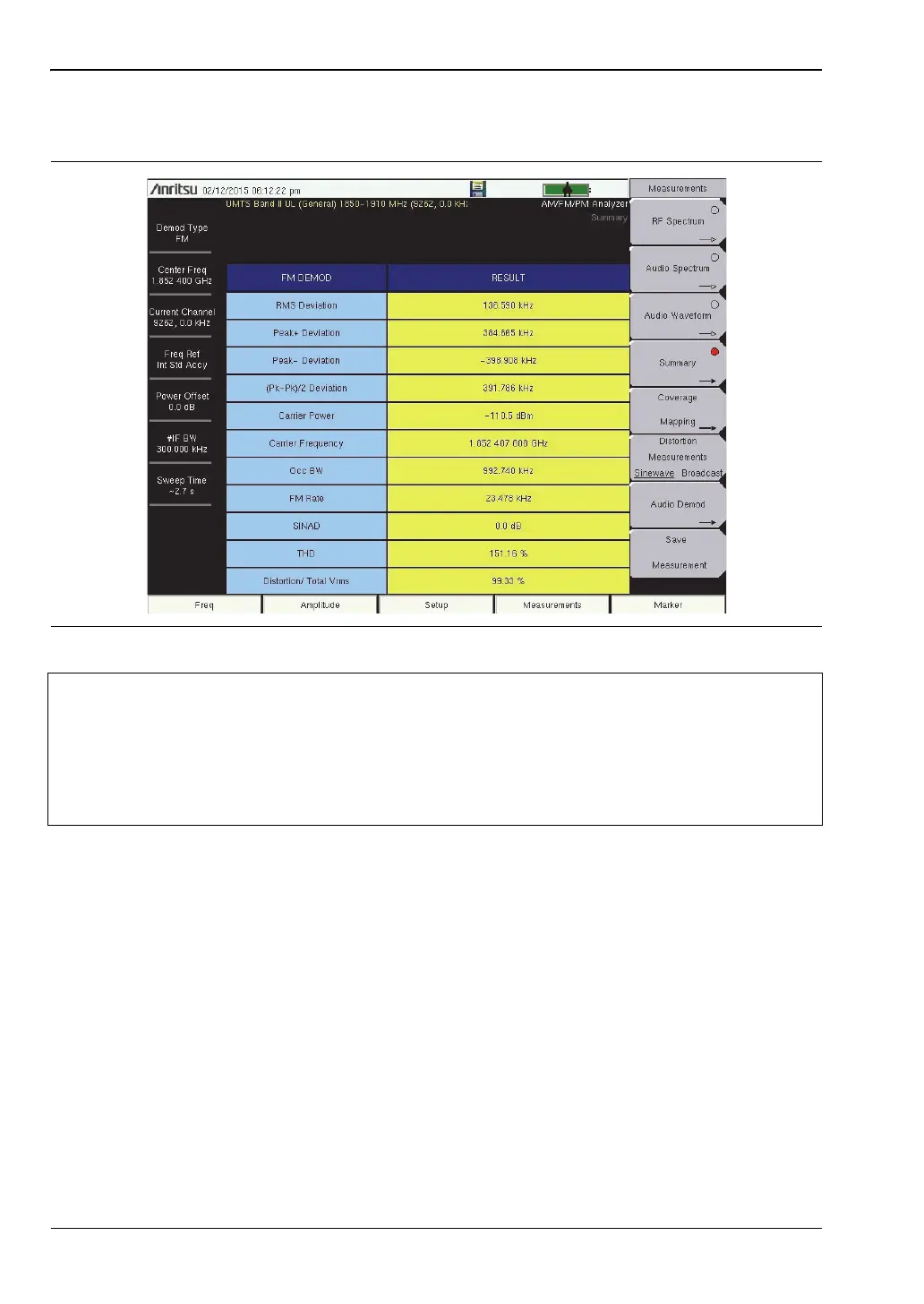

Figure 7-3. Audio Summary
Note
Measurement values for SINAD, THD, and Distortion/Total apply only to single
tone modulation. For better accuracy of these measurements, the modulation rate
should be at least 0.7% of IFBW.
If the modulation source is not single tone, you can turn off these measurements
by pressing the Distortion Measurements submenu key to select the Broadcast
setting.
