AM/FM/PM Analyzer (Option 509) 7-3 Example FM Demodulation Measurement
Spectrum Analyzer MG PN: 10580-00349 Rev. H 7-7
12. For instruments that also have Option 431 installed, press the Coverage Mapping
submenu key to set up mapping of Signal-to-Noise and Distortion (SINAD) ratio and/or
Carrier Power. Refer to Figure 7-4 for an example of coverage mapping. After coverage
mapping is turned on, press Measurement Setup to select SINAD and/or Carrier Power
and set the threshold levels.
The menu structure for coverage mapping is shown starting in “AM/FM/PM Analyzer
Menus” on page 7-8.
Refer to Chapter 6, “Coverage Mapping (Option 431)” for an overview of the coverage
mapping four-step process:
• Create an indoor or outdoor map using “Anritsu easyMap Tools” on page 6-4.
• Load the map and configure the “Instrument Settings” on page 6-5.
• Connect an antenna to the instrument and go to “Map the Signal Strength”
on page 6-7.
• “Save the Coverage Mapping Information” on page 6-9.
Note
Frequency, Demod Type, IF Bandwidth and Threshold levels can also be changed
using the touch screen.

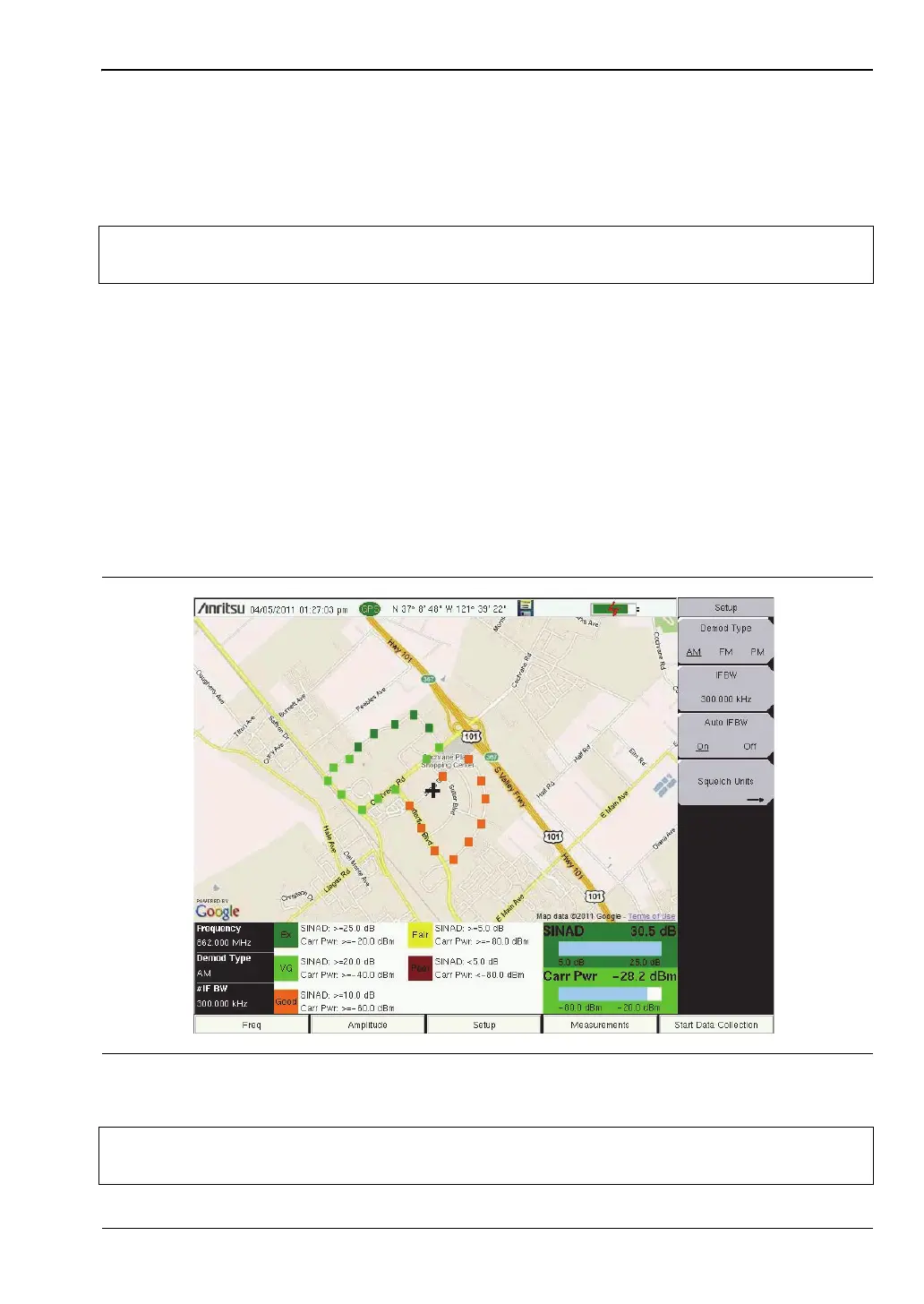

Figure 7-4. Mapping of AM Signal SINAD and Carrier Power.
Note
AM/FM/PM Coverage mapping uses AM/FM/PM Analyzer mode not
Spectrum Analyzer mode.
