2-4 Measurement Display GSM/GPRS/EDGE Signal Analyzer
2-4 PN: 10580-00234 Rev. T 3GPP MG
To display Power versus Time (Frame) press the Power versus Time (Frame) submenu key to
activate the Power versus Time (Frame) measurement (Figure 2-3).
To display Power versus Time (Slot) press the Power versus Time (Slot) submenu key to
activate the Power versus Time (Slot) measurement (Figure 2-4). The mask is according to
the 3GPP TS 05.05 specification. The first slot information is displayed.

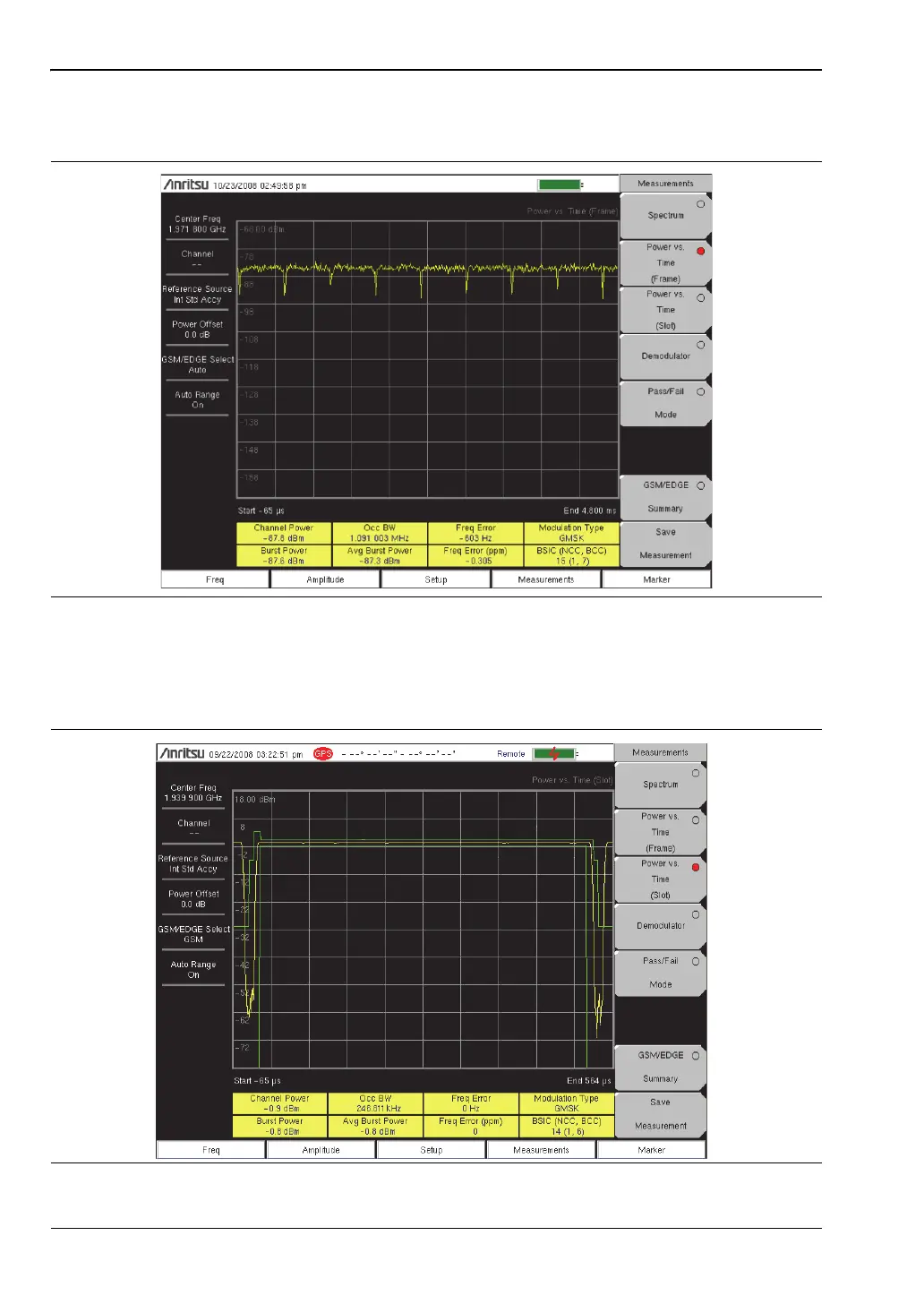

Figure 2-3. GSM Power vs. Time (Frame) Measurement
Figure 2-4. GSM Power vs. Time (Slot) Measurement
