W-CDMA/HSPA+ Signal Analyzer 3-7 Pass/Fail Mode Setup
3GPP MG PN: 10580-00234 Rev. T 3-23
10. Press the Measurements main menu key.
11. Press the W-CDMA Summary submenu key.
3-7 Pass/Fail Mode Setup
The instrument stores the five test models specified in the 3GPP specification (TS 125.141)
for testing base station performance and recalls these models for quick easy measurements.
After selection of a test model, the instrument displays test results in tabular format with
clear PASS or FAIL indications that include min/max threshold.
Using Master Software Tools, a custom test list can be created and downloaded into the
instrument. All critical parameters can be selected for pass/fail testing, including each
individual code power level, the spreading factor and symbol EVM.
Pass/Fail Mode Procedure
1. Connect the appropriate antenna to the RF In connector to make OTA measurements.
2. Press the Measurements main menu key.
3. Press the Pass/Fail Mode submenu key to display the pass/fail mode menu.
4. Press the Select Pass/Fail Test submenu key and select the applicable Test Model to
activate the measurement (Figure 3-13).

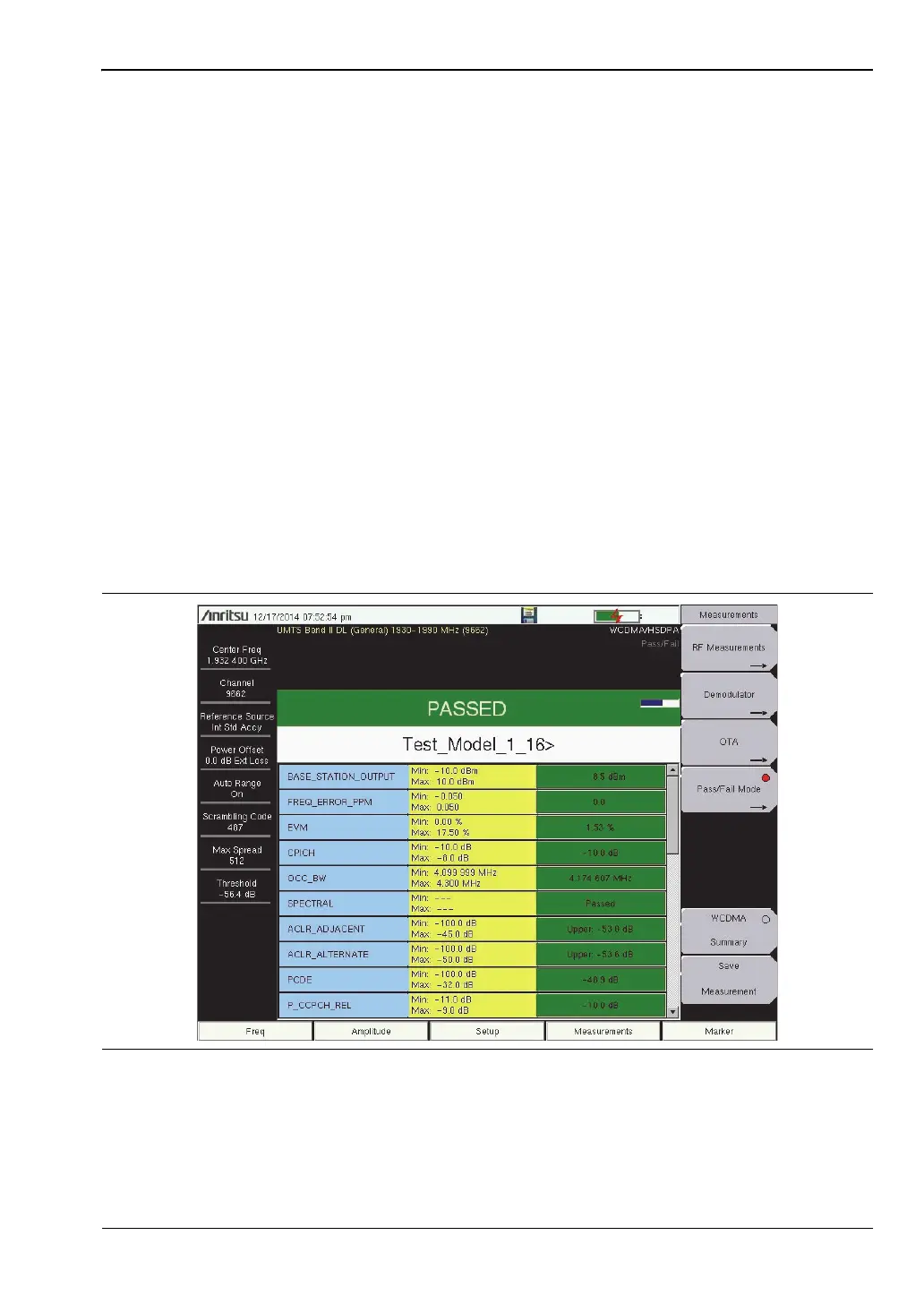

Figure 3-13. Pass/Fail Mode
