Anritsu Spectrum Master MS2720T User Manual

LTE Signal Analyzer 5-3 LTE RF Measurements
3GPP MG PN: 10580-00234 Rev. T 5-5
ACLR
1. Press the Measurements main menu key.
2. Press the RF submenu key.
3. Press the ACLR submenu key to activate ACLR display and measurement (Figure 5-3).
4. Press the Back submenu key to return to the Measurements menu.

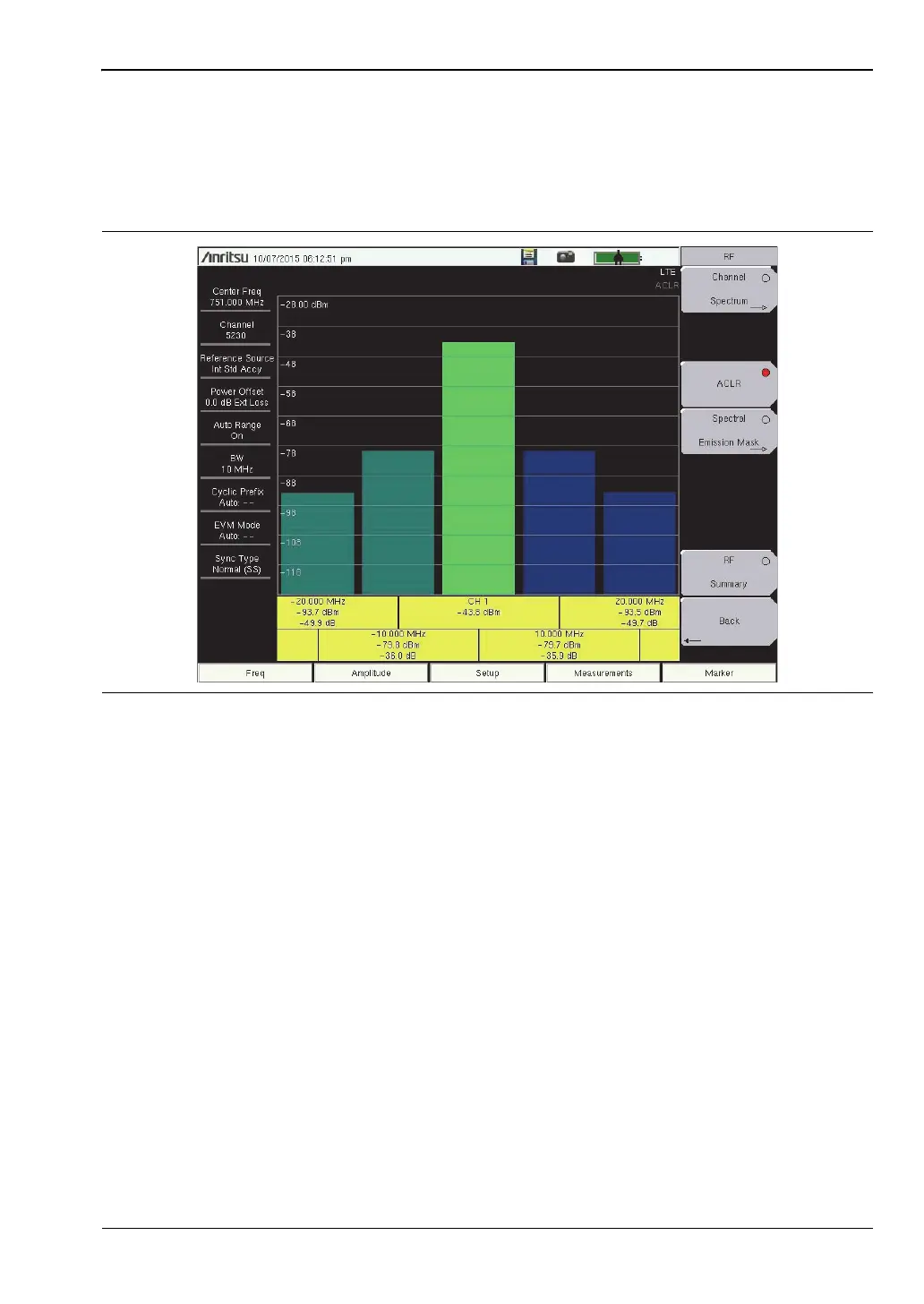

Figure 5-3. Adjacent Channel Leakage Ratio
