EMF (Option 444) 8-3 LTE/TD-LTE EMF Menu
3GPP MG PN: 10580-00234 Rev. T 8-9
Pass/Fail
The limit check is done at the end of each Measurement Time. If the Field Strength (Avg),
with or without extrapolation, exceeds the set limit, the Current and the Final Test Status
are marked as Fail in red. If the Field Strength (Avg) does not exceed the limit, the Current
Test Status is marked as Pass in green. In the example in Figure 8-8, the extrapolated Field
Strength (Ex Avg) is 22.22 mV/m.
If all of the measurements pass, the Final Test Status is updated to Pass in green.

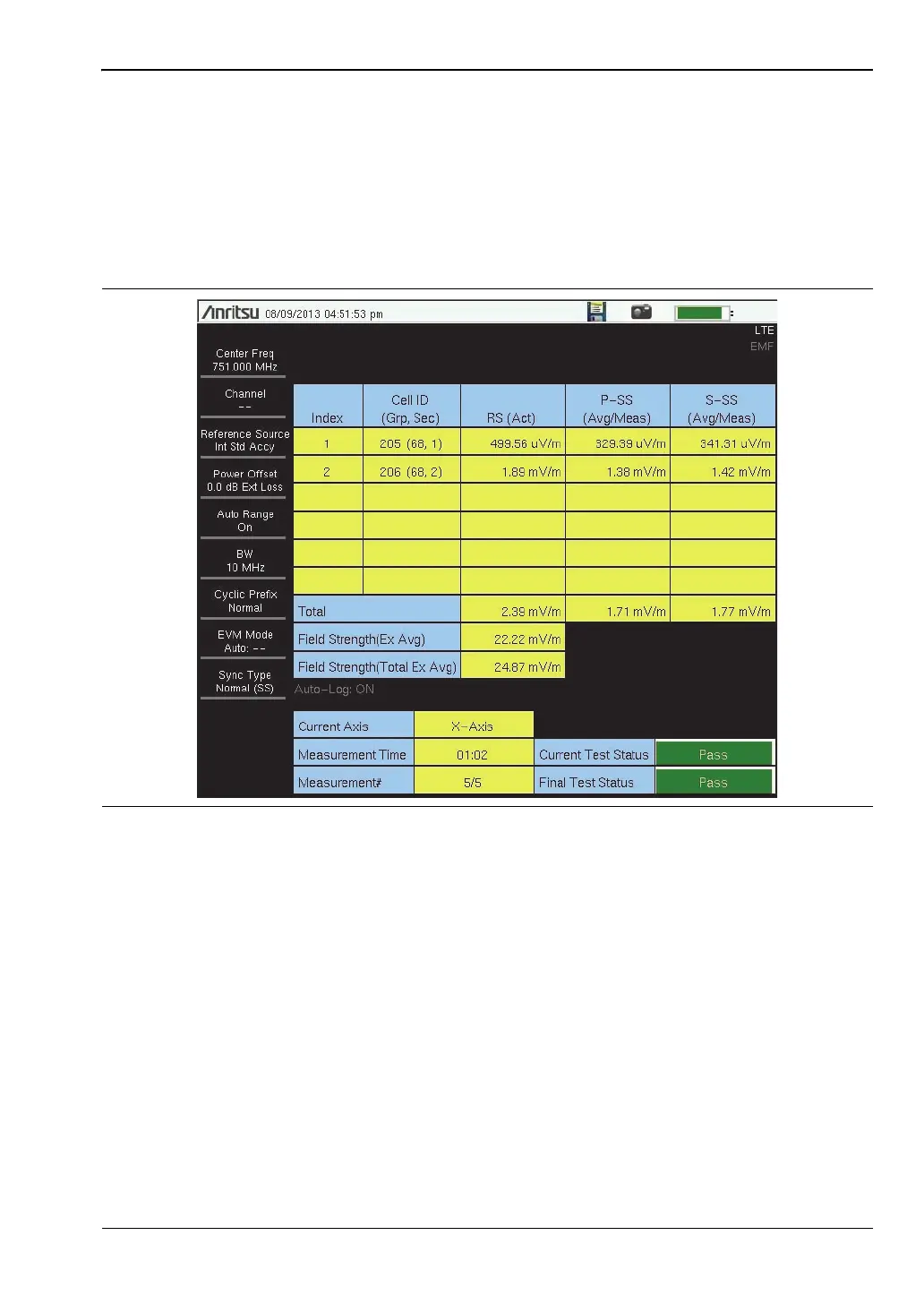

Figure 8-8. LTE/TD-LTE EMF Measurement Display
