Anritsu Spectrum Master MS2720T User Manual

EVDO Signal Analyzer 3-10 EVDO Menus
3GPP2 MG PN: 10580-00235 Rev. D 3-19
3-10 EVDO Menus

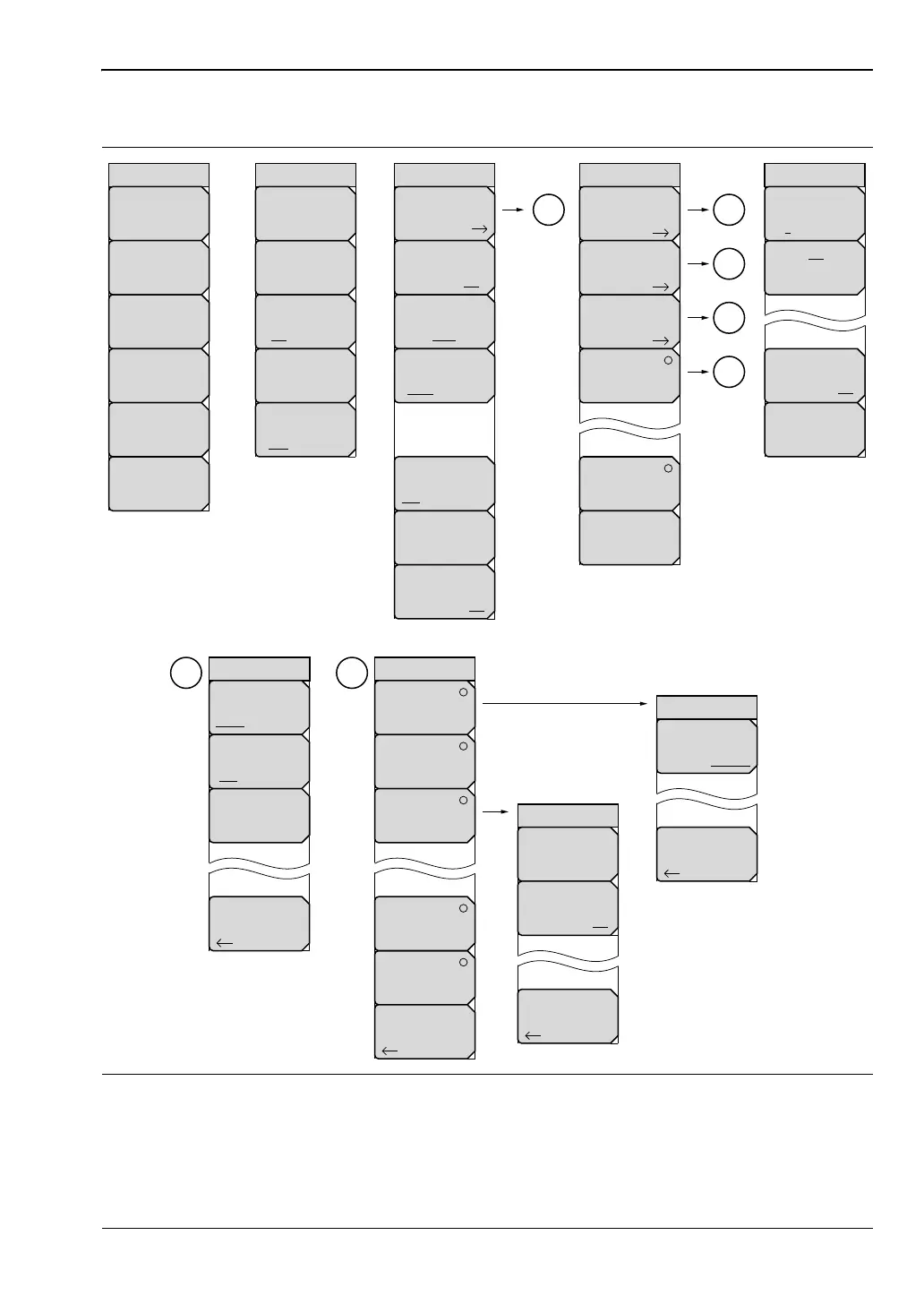

Figure 3-14. EVDO Menu Layout (1 of 2)
Amplitude
Power Offset
0.0 dB
Auto Range
On Off
Adjust
Range
Unit
dBm W
Frequency
Center Freq
1.931 250 GHz
Signal
Standard
Channel
25
Set CF
To Closest
Channel
Decrement
Channel
Increment
Channel
Measurements
RF Measurements
Demodulator
OTA
Pass/Fail Mode
EVDO
Summary
Save
Measurement
RF Measurements
Power vs. Time
ACPR
RF
Summary
Spurious
Emission
Channel
Spectrum
Back
ACPR
Number of
Carriers
Back
PN Setup
PN Trigger
No Trig GPS Ext
Back
PN Search Type
Auto Manual
Manual PN Offset
- -
Setup
PN Setup
Walsh Codes
64 128
Meas Speed
Fast Norm Slow
Slot Type
Auto Active Idle
Ext Trig Polarity
Rising Falling
Number of Carriers
1
Carrier BW (MHz)
1.23 1.24 1.25
Carrier BW (MHz)
1.23 1.24 1.25
Ch Spectrum
OBW Span
2.5 MHz 1.35 MHz
Back
G
H
I
J
GF
F
Scale / div
10 dB/div
Marker Table
On Off
Marker
On
Off
All
Markers
OFF
Marker
1 2 3 4 5 6
