Model 101/2100 Doors Service & Installation

TITLE:

99-13312-S001 Model 101/2100 Doors Service &

Installation

REV.

Page 13 of 95

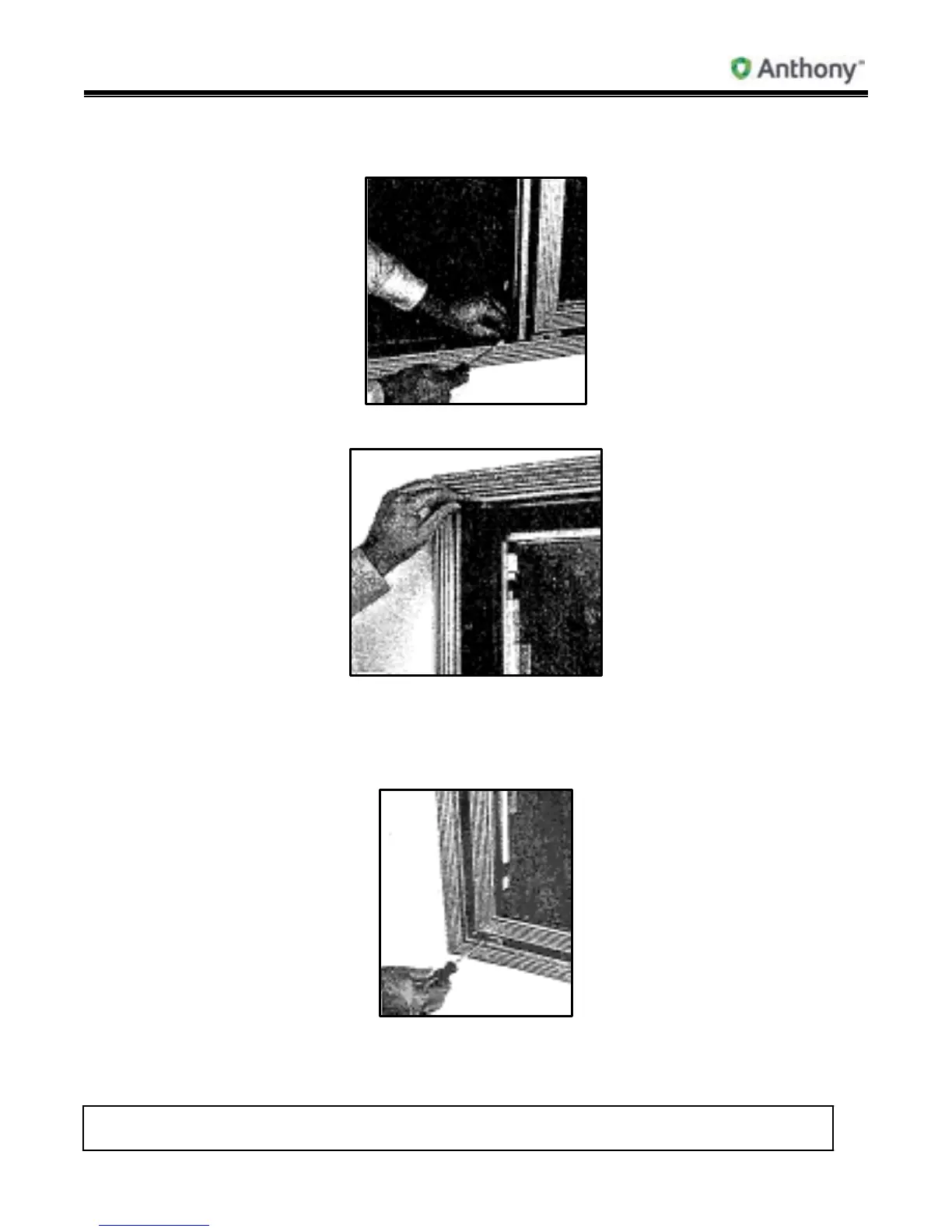

2. Remove back cover plate with flat-head screwdriver and insert into opposite

Torquemaster hole. Replace and re-install Torquemaster in new position.

3. Insert back safety cover plate into opposite side hinge receptacle.

4. Do not use power tools for installation or removal.

9. Door Reversing Instructions Models 101 & 2100 (1989-1991)

1. Release tension on Torquemaster by turning front screw clockwise.
