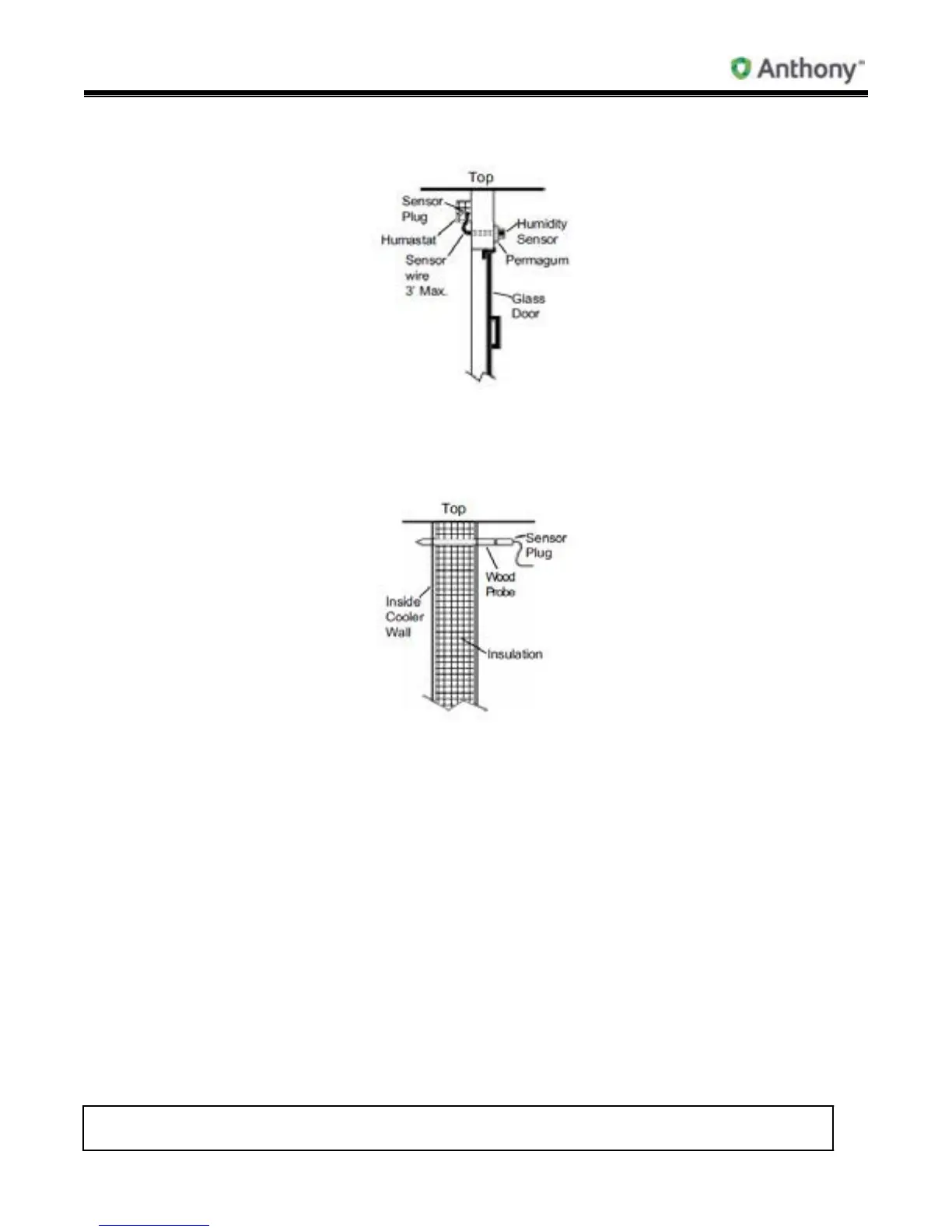

8. Install Humastat Sensor on the outside wall of refrigerator above the door frame, within
three feet of power junction box.
120 VAC 50/60 Hz, 20 Amperes Maximum
a. Drill a 1/4” diameter hole through refrigerator wall directly above the door frame.
b. Use the wood probe supplied with the sensor to feed the sensor wire through the
refrigerator wall.
c. Apply permagum to back of sensor around the wire. Pull the wire through the hole
until the sensor makes close contact with the wall and secure it to the wall with the
screws provided Seal the probe wire with the permagum on inside of wall.
9. Remove wood probe from sensor connector by holding the body of connector securely
and pulling off the probe.
10. Insert the sensor plug into the sensor jack on the outside end of the power junction
box.
11. Set the heater control knob for the lowest value which keeps the door free of
undesirable moisture.
