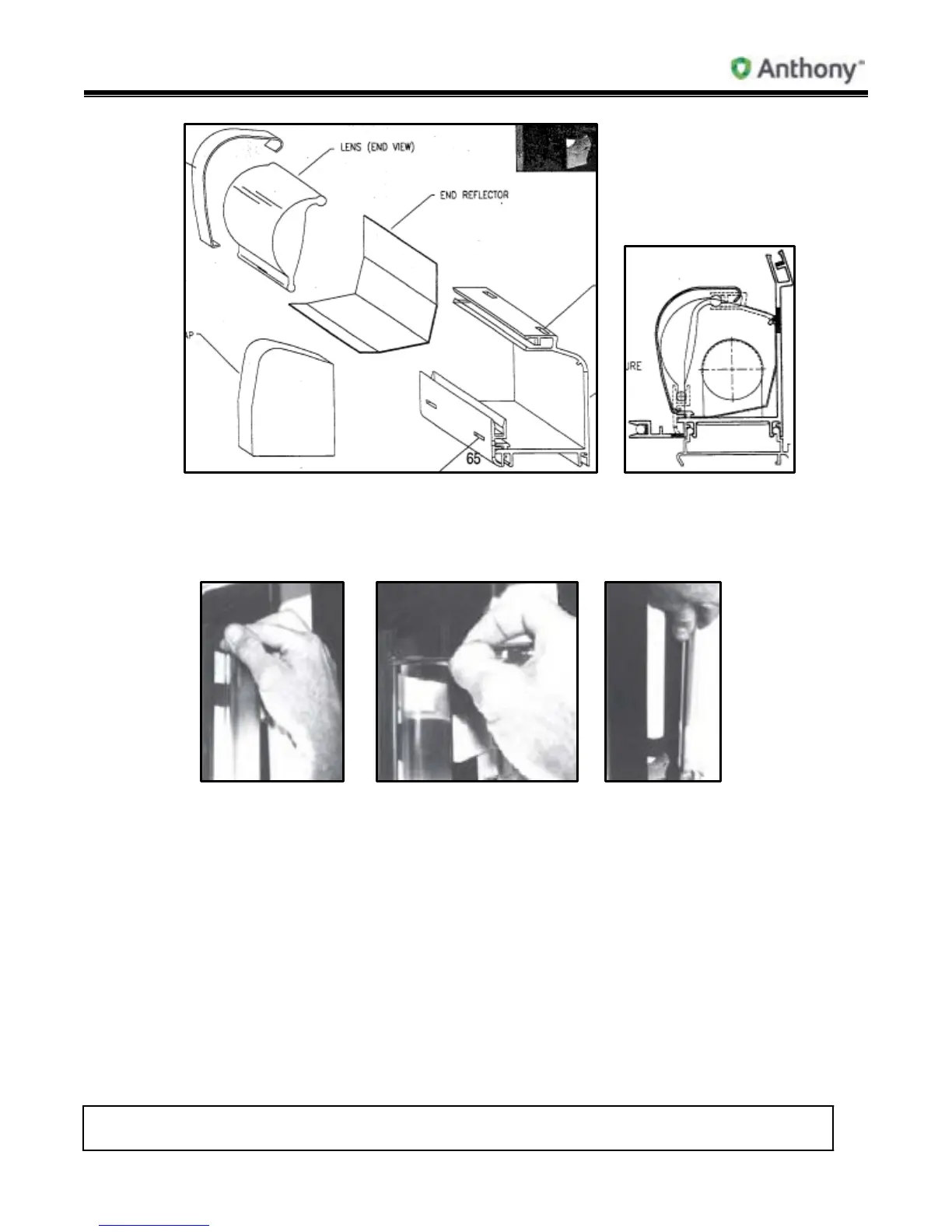

3. Remove ELS lens. Starting at top, pull lens away from inside front edge of fixture. If
necessary, a small flat-head screwdriver can be inserted between the lens and black
fixture plastic, to ease the lens out of the groove. If rear edge of lens is left in fixture
plastic, lens will swing back on flexible “hinge” to expose bulb.
4. Reaching into fixture, hold bulb with fingers and twist to line up with socket access
holes. Remove old bulb. Remove insulator tubes from both ends of old bulb and
replace on ends of new bulb.
To install new bulb, place into socket and turn two clicks. There are foam end caps
on the top and bottom of lamp sockets. End caps must be attached before lens is
replaced.
