ANthony 103 - Recessed Light Socket Replacement; Recessed Lamp Channel Replacement with Remote Ballast

Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 49 of 95

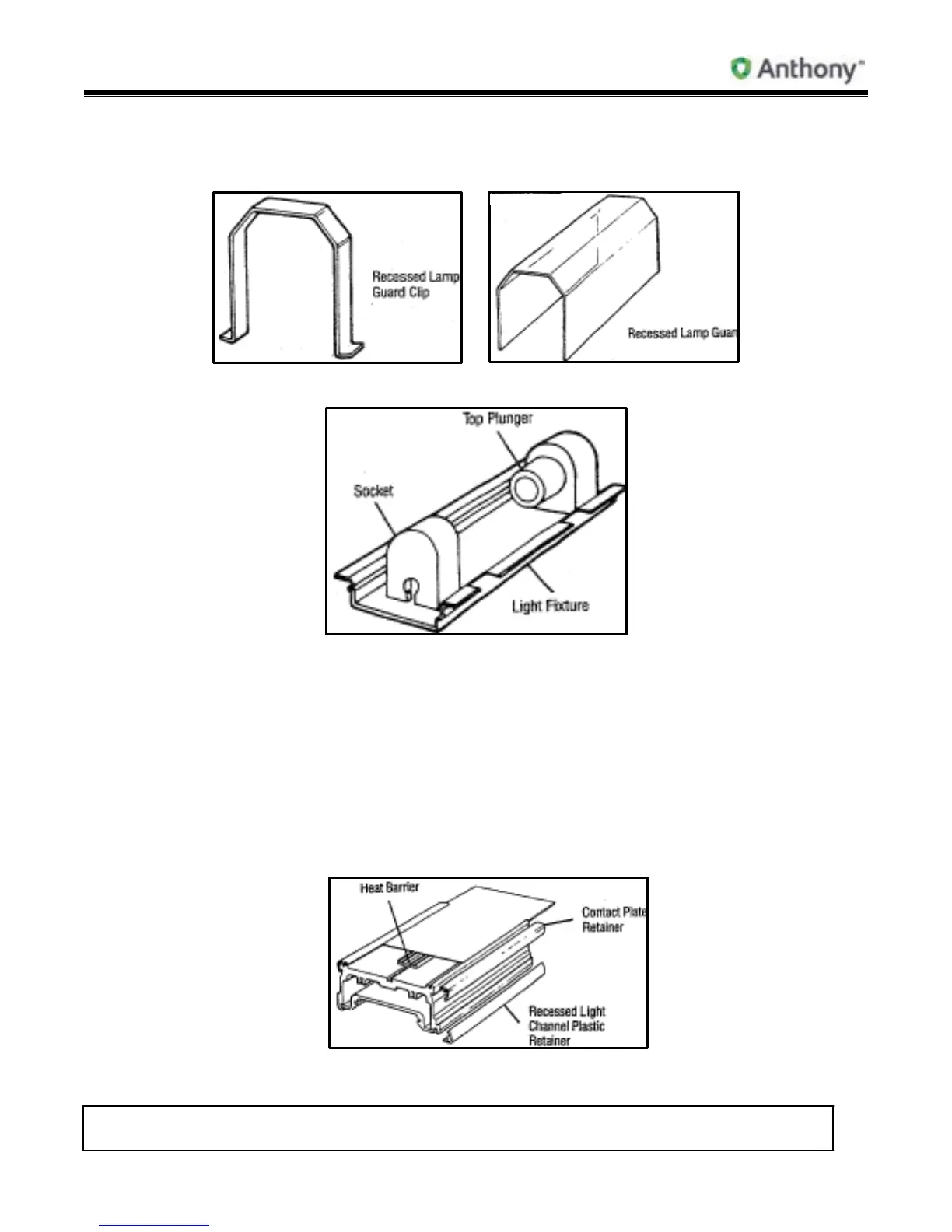

50. Recessed Light Socket Replacement
1. Remove safety clips and light guard.
2. To remove top socket (plunger socket), pull socket down then out.
3. To remove bottom socket, pull up then out.
4. Mullion contains excess socket lead wire. Cut lead wires to sockets.
5. Re-wire new socket in place.
6. To re-install sockets, reverse above instructions.
7. Replace bulbs and lamp guards.
51. Recessed Lamp Channel Replacement with Remote Ballast
1. Insert flat-head screwdriver under back edge of light channel retainer to remove.
2. To replace, lay light channel into mullion, then snap on retainer as shown.
