Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 47 of 95

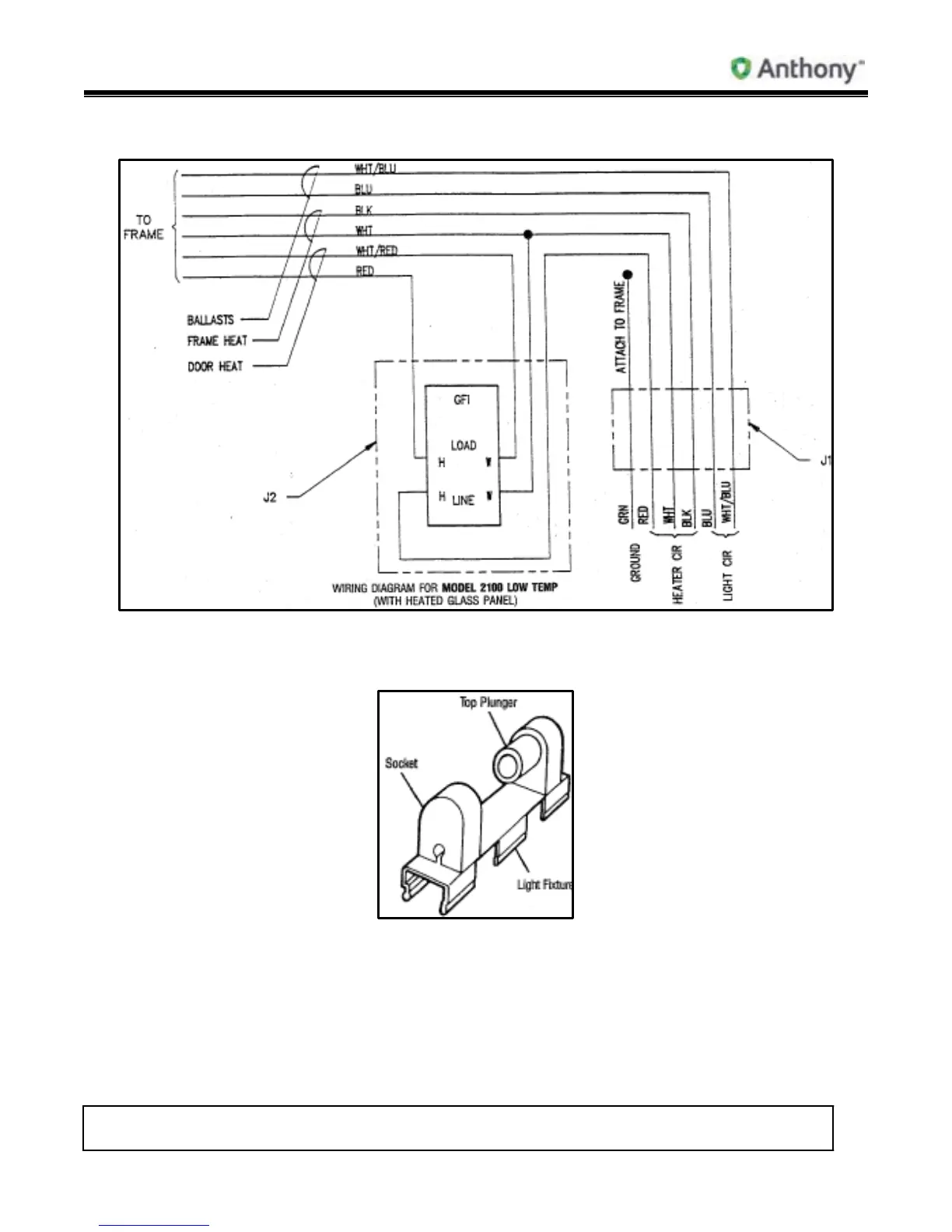

47. Model 2100 G.F.I. Location & Wiring Diagram
48. Lamp Replacement
1. Lift lamp up into top plunger socket, then out at bottom to remove.
2. Pull end caps off end of light shield, then remove bulb from shield.
3. To replace bulb, insert new bulb into lamp shield and snap in end caps. To replace
lamp, lift bulb up into top plunger socket, then set into bottom socket. Do not install
lamps without lamp shield.
