Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service &
Installation

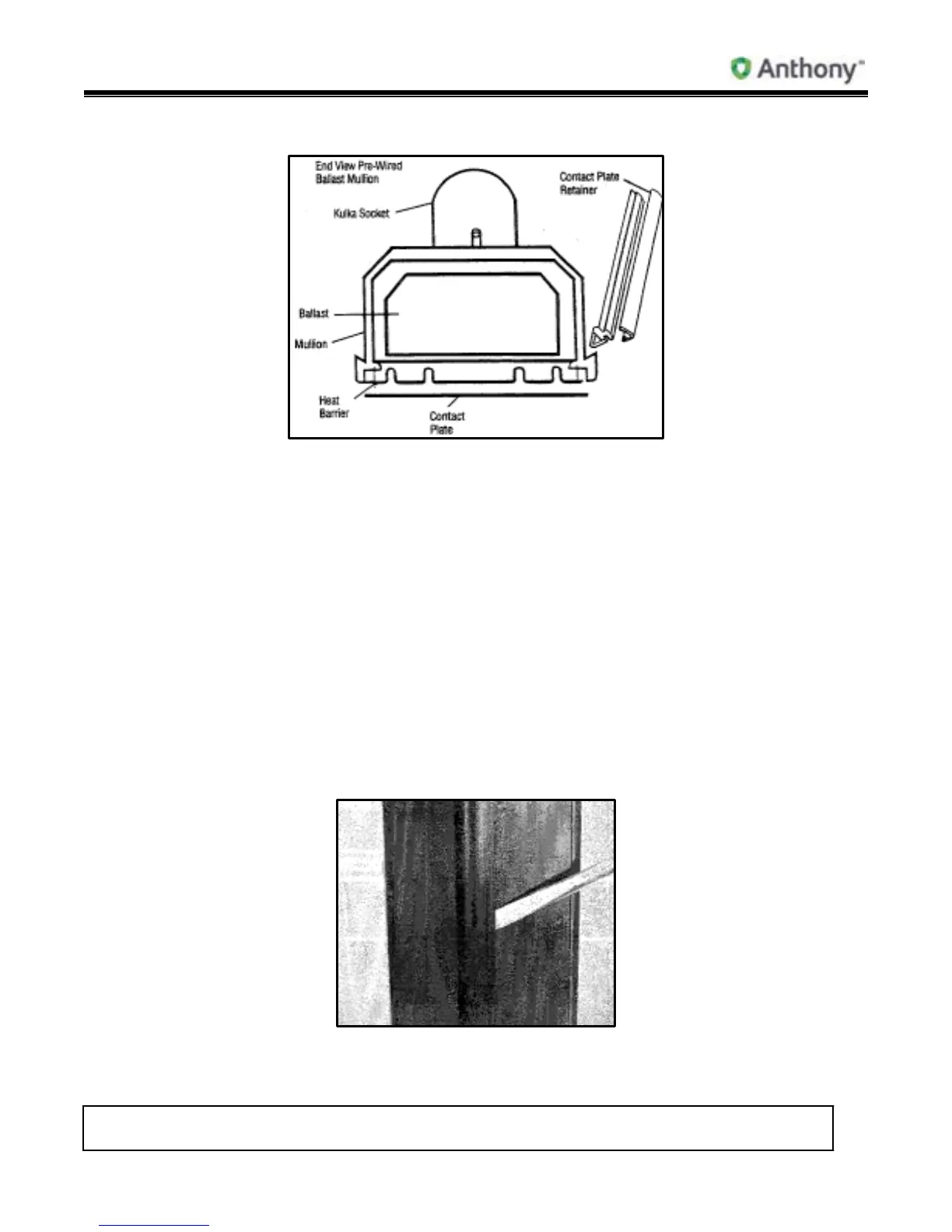

3. Insert flat-head screwdriver under back edge of contact plate retainer to remove.
4. Remove contact plate from mullion.
5. Pull heat barrier from mullion to remove.
6. The ballast has a wiring diagram on its face. To replace ballast, cut lead wires: 2-Red,
2-Blue, 1-Black and 1-White.
7. Follow color codes to rewire ballast. Reverse instructions to replace heat barrier,
contact plate and contact plate retainer.
Note: When the two (2) Blue and two (2) Red wires are connected to the top and
bottom sockets, make sure the wiring is one-to-one. Do not gang wire.
64. “ELS” Lamp Socket Replacement
WARNING: Before servicing Anthony doors make sure all power to case is off. Always
use a qualified electrician.
1. Remove front contact plate retainer.
2. Remove contact plate.
