ANthony 103 - Door Heater Replacement (1991 to Present) Model 101 Only

Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 26 of 95

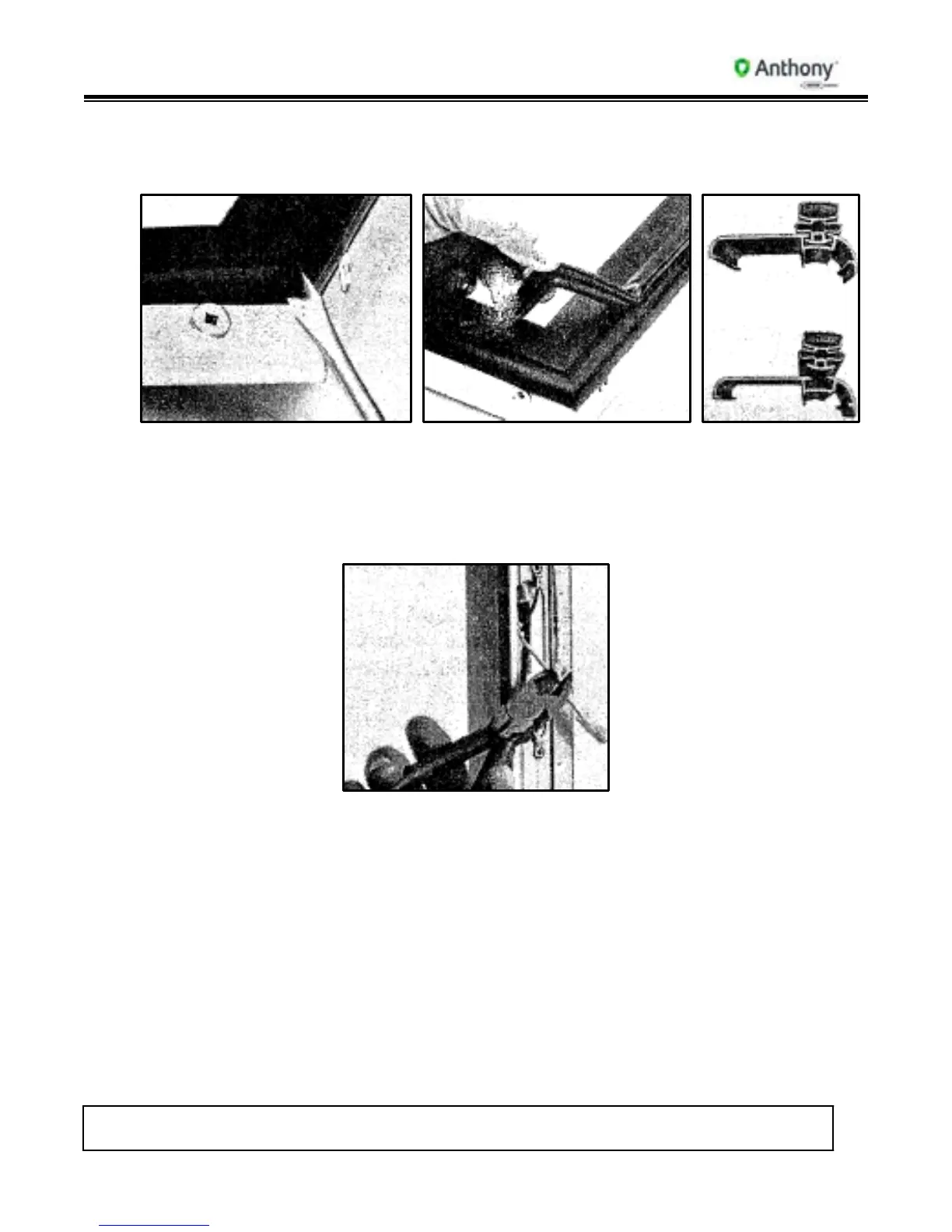

23. Door Heater Replacement (1989 to 1991) Model 101 Only
1. Remove door gasket and plastic.
2. Remove side access plate (Door Cut-Away).
3. Unsnap hinge pin from female receptacle.
4. Wiring for the door is done in the center side of hinge rail.
5. To remove heater, cut solid lead wires: Black, White and Green/Yellow (ground).
6. Heater wire lies in track on the back outside edge of door. Pull heater out.
7. If glass is heated, cut Black and White lead wires from glass.
8. Reverse instructions to replace door heater. Wire Black to Black, White to White and
Green/Yellow to ground. If heated glass is used, reconnect glass Black and White lead
wires to heater Black and White lead wires.
24. Door Heater Replacement (1991 to Present) Model 101 Only
1. Remove door plastic and door gasket.
2. Remove center side access plate (Door Quick Disconnect and Reversing).
3. To remove heater, unplug solid lead wires: Black or Red, White and Yellow/Green
(ground).
