65. “ELS” Electronic Ballast Replacement and Wiring Instructions
WARNING: Before servicing Anthony doors make sure all power to case is off. Always
use a qualified electrician.

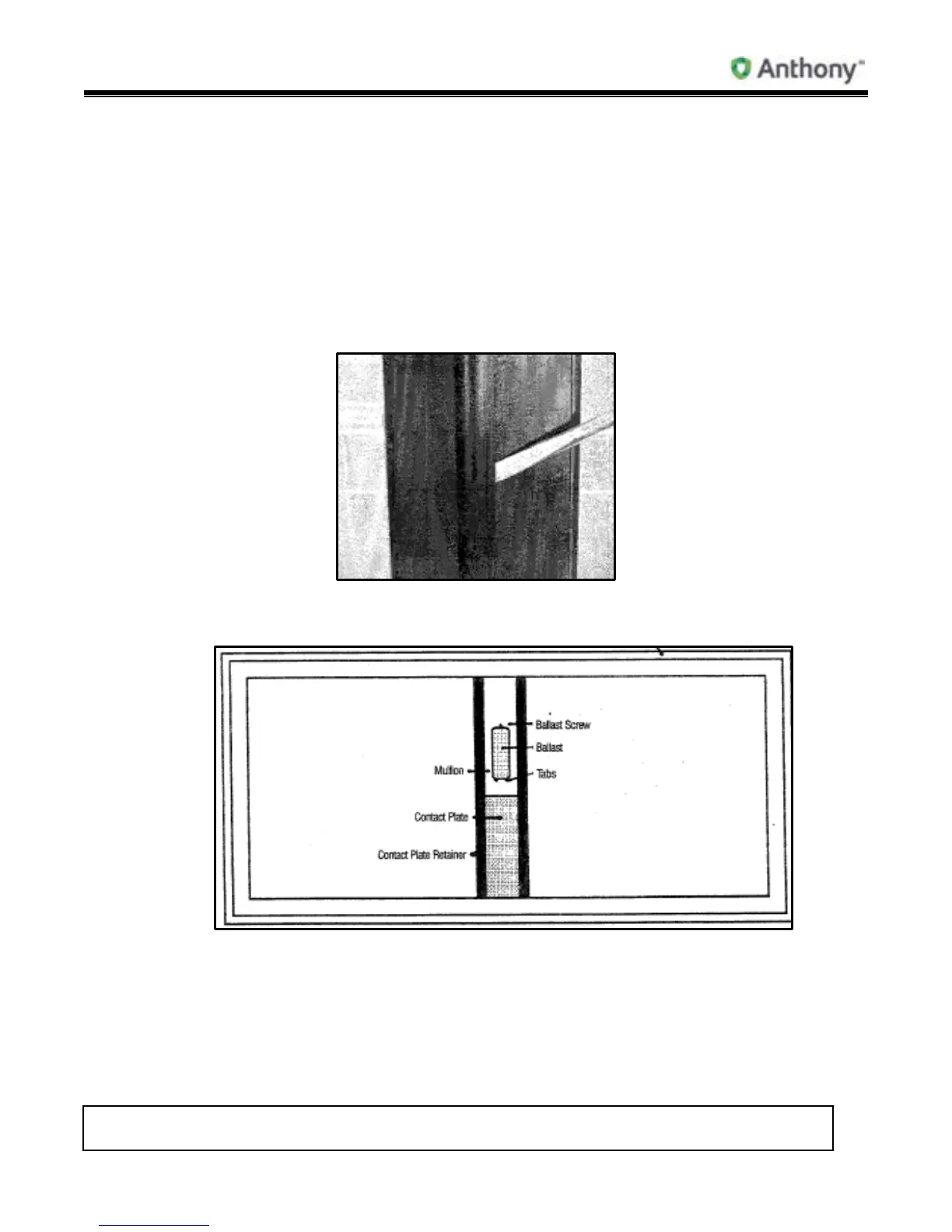

1. Refer to drawings on following pages for ballast location and wiring.
2. Remove door that hinges on mullion where ballast will be replaced.
3. From front of frame, remove contact plate and retainer by inserting a flat-head
screwdriver under back edge of black contact plate retainer, and gently pull to unsnap
retainer from mullion. Repeat from other side of mullion and remove contact plate.
4. With ballast now exposed, remove screw on top end of ballast. Slide ballast up and out
of punched mullion tabs.
5. Disconnect or cut all lead wires. If cut, leave enough lead wire to re-connect new ballast
with wire nut.
6. Insert bottom of new ballast in punched tabs on mullion. Re-install top screw in top end
of ballast.
