Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 24 of 95
1. Model 101 Remove plastic hole plug from back of door plastic.
2. Insert 5/32” Allen wrench into access holes and turn screws counter-clockwise to
remove.
3. Reverse instructions to replace handle.
4. Model 2100 Remove screws on side of door rail
5. Reverse instructions to re-install.
19. Side Access Plate Replacement (1989 to 1991)

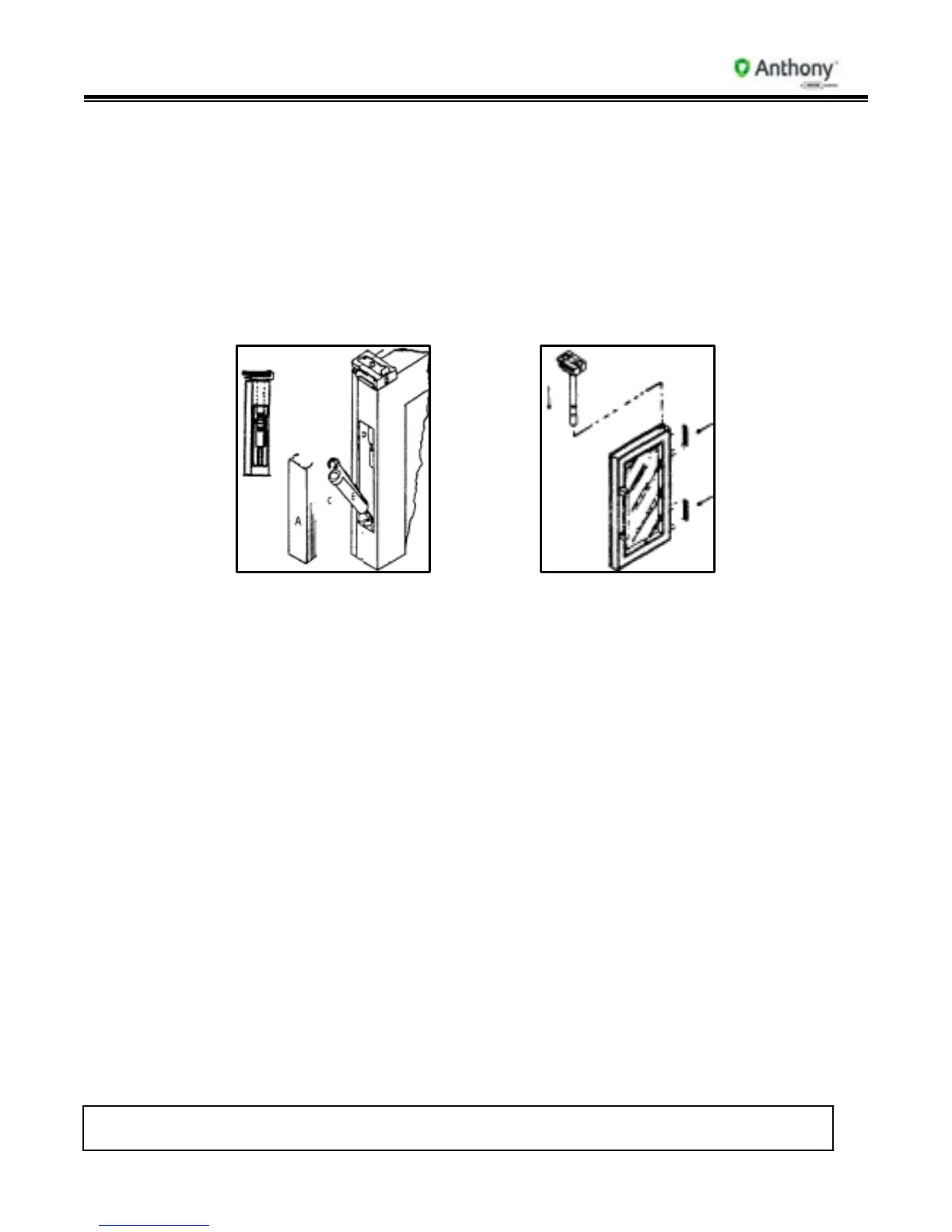

Hinge Pin and Cover Plate Hinge Pin Removal
Note: Lead Wires: Heater (Black, White), Receptacle (Black, White, Green), Glass
(Black, White).
1. Side access plate is located at top side of door.
2. To remove, insert flat-head screwdriver under edge of cover and lift up.
3. Snap plate into door extrusion to replace.
20. Side Access Plate Replacement (1991 to Present)
1. Access plate is located on the center of the hinge rail (Door Quick Disconnect and Reversing).
2. To remove side access plate, insert small flat-head screwdriver under edge of cover
and lift up.
3. Snap plate into door extrusion to replace.
