Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service &
Installation

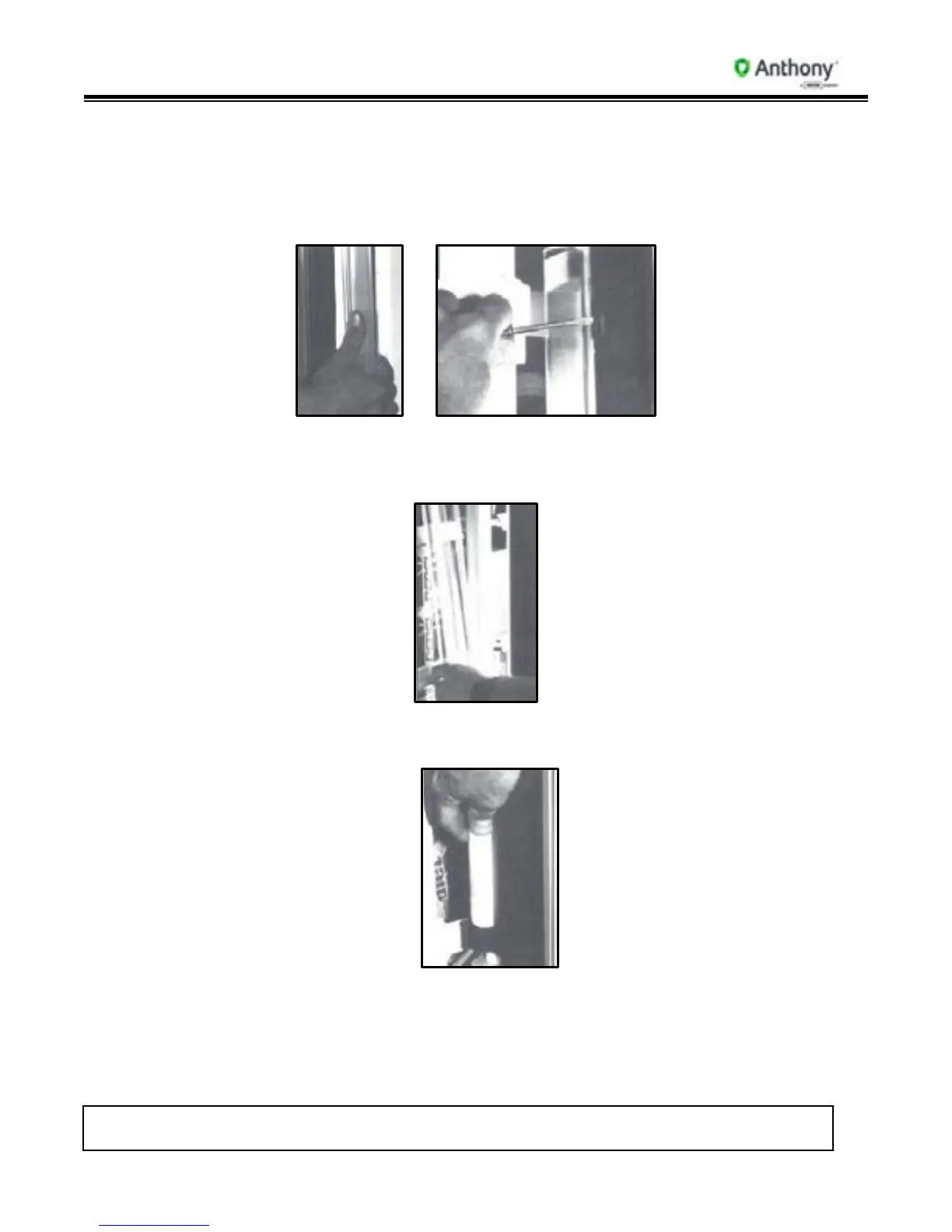

3. Remove ELS lens. Starting at top, pull lens away from front of light fixture that is
attached to the frame mullion. If necessary, a small flat-head screwdriver can be
inserted between the lens and black mullion plastic, to ease the lens out of the groove.
There is no need to remove the lens from the bridge (the black or clear plastic piece
connecting the two lenses at the back of the fixture).
If pulled away from one side carefully, the lens will swing back into the case to give
access to the bulb. Otherwise, the left and right lenses and the bridge will pull away
from the fixture – in one complete section.
4. With the lens removed, hold lamp with fingers and twist bulb to line up with socket
access holes.
Remove old bulb. Remove insulator tubes from both ends of old bulb and replace on
ends of new bulb.
