Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service &
Installation
49. Lamp Socket Replacement

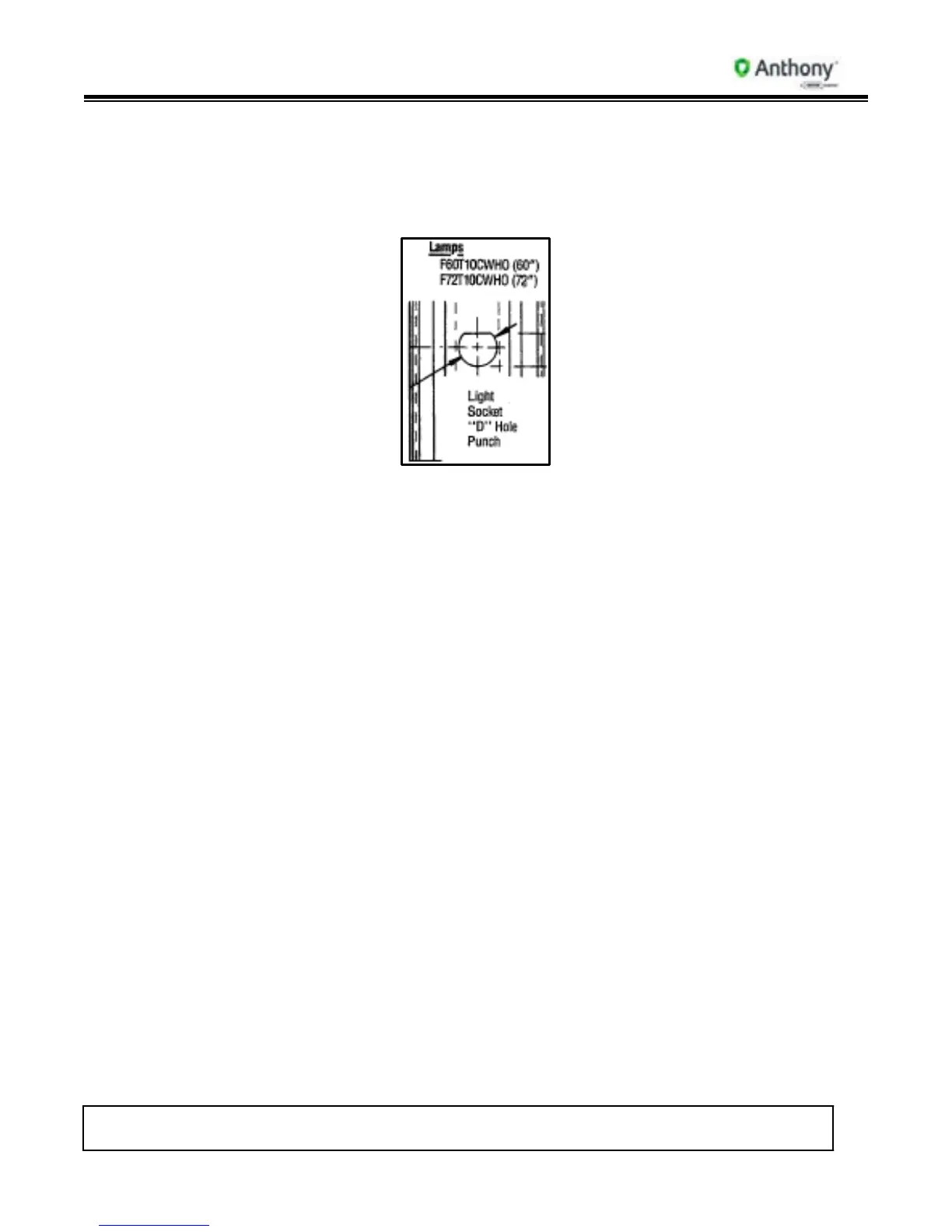

1. To replace sockets, remove lamp, then pull top socket down and pull out of “D” hole. To
replace bottom socket, pull socket up and out of “D” hole. Extra lead wire is left in the
mullion for easy replacement.
2. Pull sockets out, then cut lead wires.
3. Reverse instructions to replace.
4. To re-install sockets, insert top front metal tab into “D” hole and snap socket up. For
bottom socket, insert metal tab into “D” hole and snap socket down to install.
5. Replace lamps.
6. For safety and efficiency, lamps should never be installed without shields.
