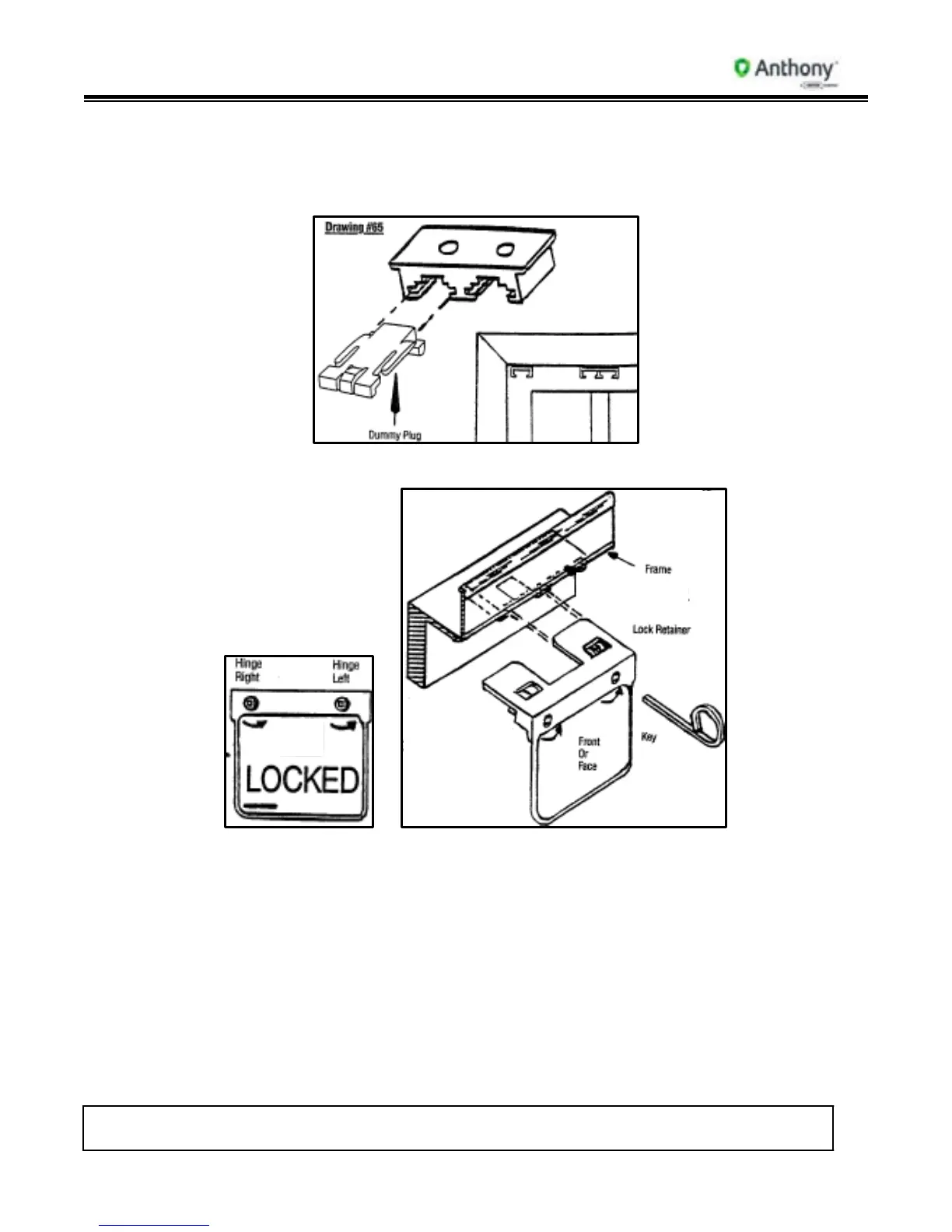

32. P.O.M. Lock Installation
1. Remove dummy plug from hinge pin access plate on top of frame on handle side of
door.
2. The P.O.M Lock inserts into a hinge pin access plate.
3. Insert key into P.O.M Lock’s square keyhole and turn key counterclockwise to lock.
4. Remove key.
5. To remove P.O.M. Lock, insert key into square hole and turn key clockwise.
6. Pull straight out to remove lock.
7. Replace dummy plug.
8. Lock only side that inserts into hinge access plate.
9. Facing doors, the lock on the right side is for left-hinged doors and the lock on the left
side is for right-hinged doors.
