Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 37 of 95
6. When ordering replacement heaters, specify which heater needs replacing: top, bottom,
end or center mullion heater. This varies depending upon the particular frame make-up..
7. Reverse instructions to re-install heater.

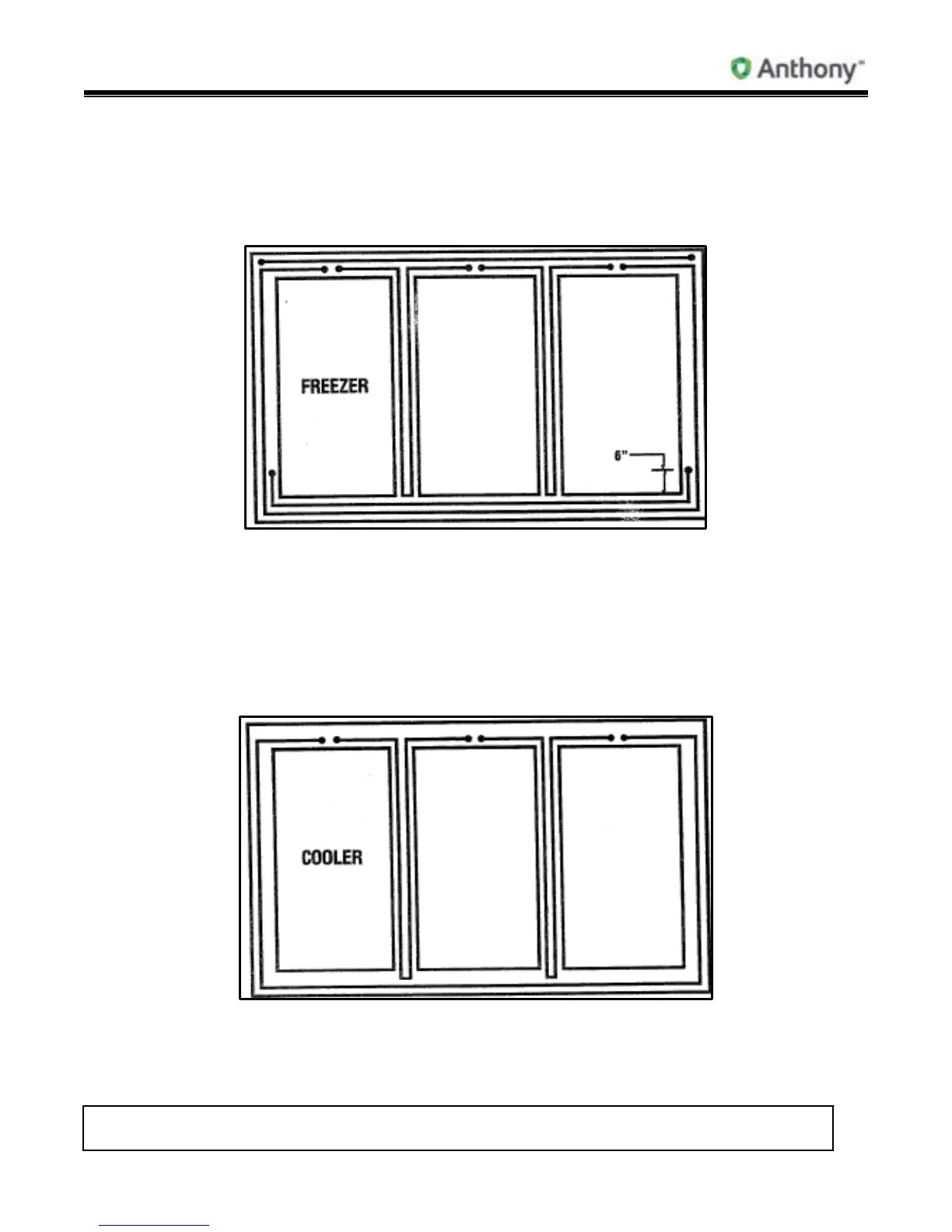

37. Models 101 & 2100 Frame Heater Schematic/Low Temp
Heater Wire Layout:
3-Door Frame (Typical for 2 Thru 5 Doors)
Bottom and End – Perimeter –
Center Top Supplement – Bottom Supplement.
Note: Top Heater to be installed before door sockets are set in place.
38. Models 101 & 2100 Frame Heater Schematic/Normal Temp
Heater Wire Layout:
3-Door Frame (Typical for 2 Thru 5 Doors)
Bottom and End – Perimeter and Center
