Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 9 of 95
4. Models 101 & 2100 Standard Frame Net Opening Heights
4.1. Frame Height Data
CATALOG DOOR HEIGHT
75”
73”
67”
63”
FINISHED FRAME
74-13/16”
72-13/16”
66-13/16”
64-9/16”
NET OPENING HEIGHT
75”
73”
67”
64-3/4”
4.2. Door Size
CATALOG WIDTH
CATALOG HEIGHT
24”
26”
30”
75”
73”
67”
63”
ACTUAL SIZE
23-3/16”
26-3/8”
29-7/8”
73-1/16”
71-1/16”
65-1/16”
62-13/16”
5. Models 101 & 2100 Frame Installation

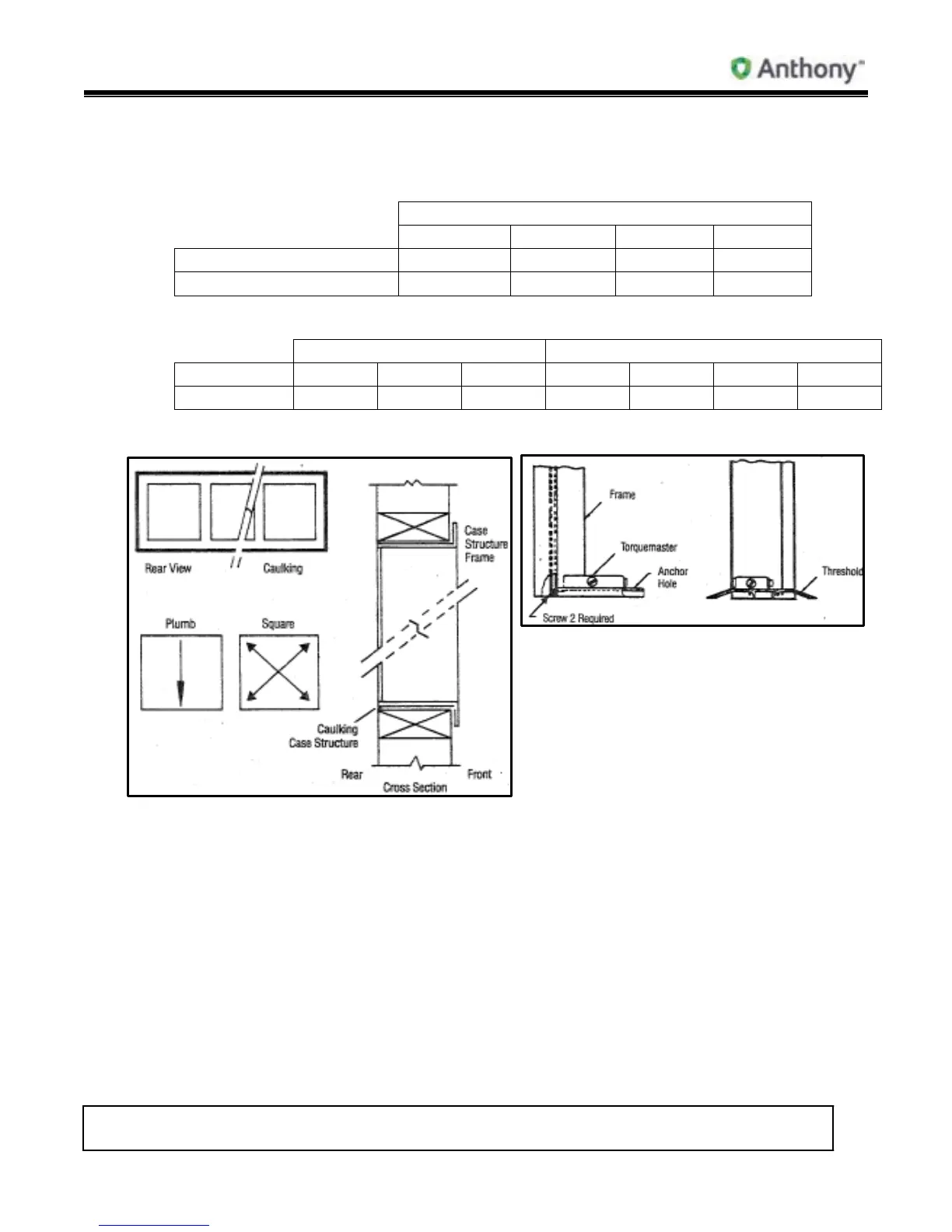

Frame Installation Pass-Thru Cross Section (w/wo Threshold)
1. Read instructions completely before installing frames.
2. Openings must conform to net openings listed in Price Book or other.
3. Check size of finished frame to net opening.
4. Do not force frame into tight opening.
5. Check net opening for plumb and square as shown. Sill must be level left to right and
front to back.
a. Jambs, header and sill should be wood for a secure installation
b. Anthony door frame needs a sill of at least 1-1/2” for proper installation.
