Anybus CompactCom 40 EtherNet/IP User Manual

Timing & Performance 196
Doc.Id. HMSI-27-212
Anybus CompactCom 40 EtherNet/IP
Doc.Rev. 1.5

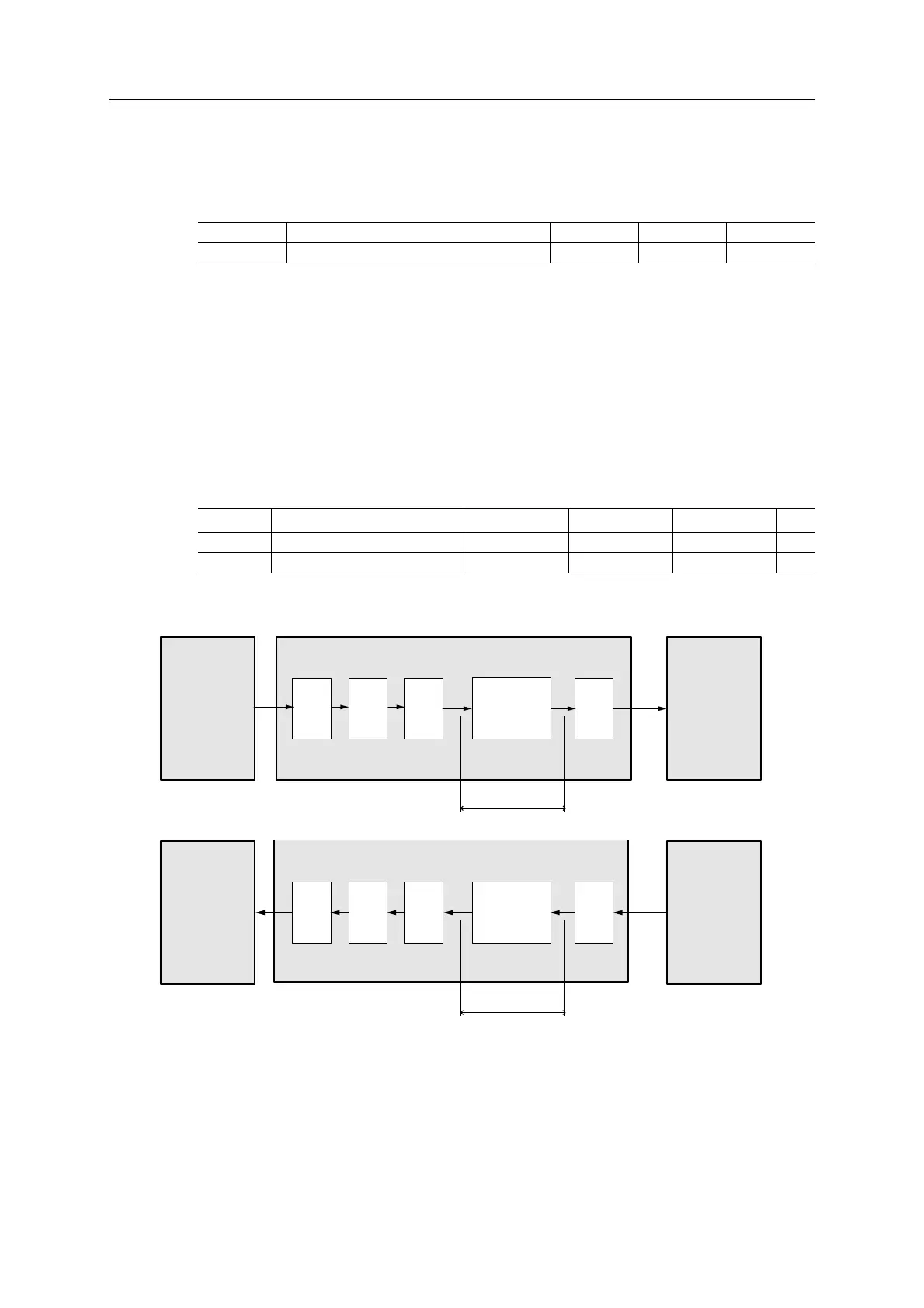

F.2.3 Event Based WrMsg Busy Time
The Event based WrMsg busy time is defined as the time it takes for the module to return the
H_WRMSG area to the application after the application has posted a message.
F.2.4 Event Based Process Data Delay
“Read process data delay” is defined as the time from when the last bit of the network frame has been
received by the network interface, to when the RDPDI interrupt is asserted to the application.
“Write process data delay” is defined as the time from when the application exchanges write process
data buffers, to when the first bit of the new process data frame is sent out on the network.
The test was run in 16-bit parallel event mode, with interrupts triggered only for new process data events.
The delay added by the PHY circuit has not been included, as this delay is insignificant compared to the
total process data delay.
Parameter Description Min. Max. Unit.
T103 H_WRMSG area busy time 6 9 μs
Parameter
Description
a
a. Measured at an IO size of 32 bytes
Delay (min.) Delay (typ.) Delay (max.) Unit
T101 Read process data delay 45 50 84 μs
T102 Write process data delay 66 69 106 μs
NP40
Anybus
Host
connector
Host Application
Ethernet
PHY
Ethernet
Trafo
Ethernet
connector
Ethernet
Network
Read process data delay
NP40
Anybus
Host
connector
Host Application
Ethernet
PHY
Ethernet
Trafo
Ethernet
connector
Ethernet
Network
Write process data delay
