8. Remote PLC
8.1 Signal Output

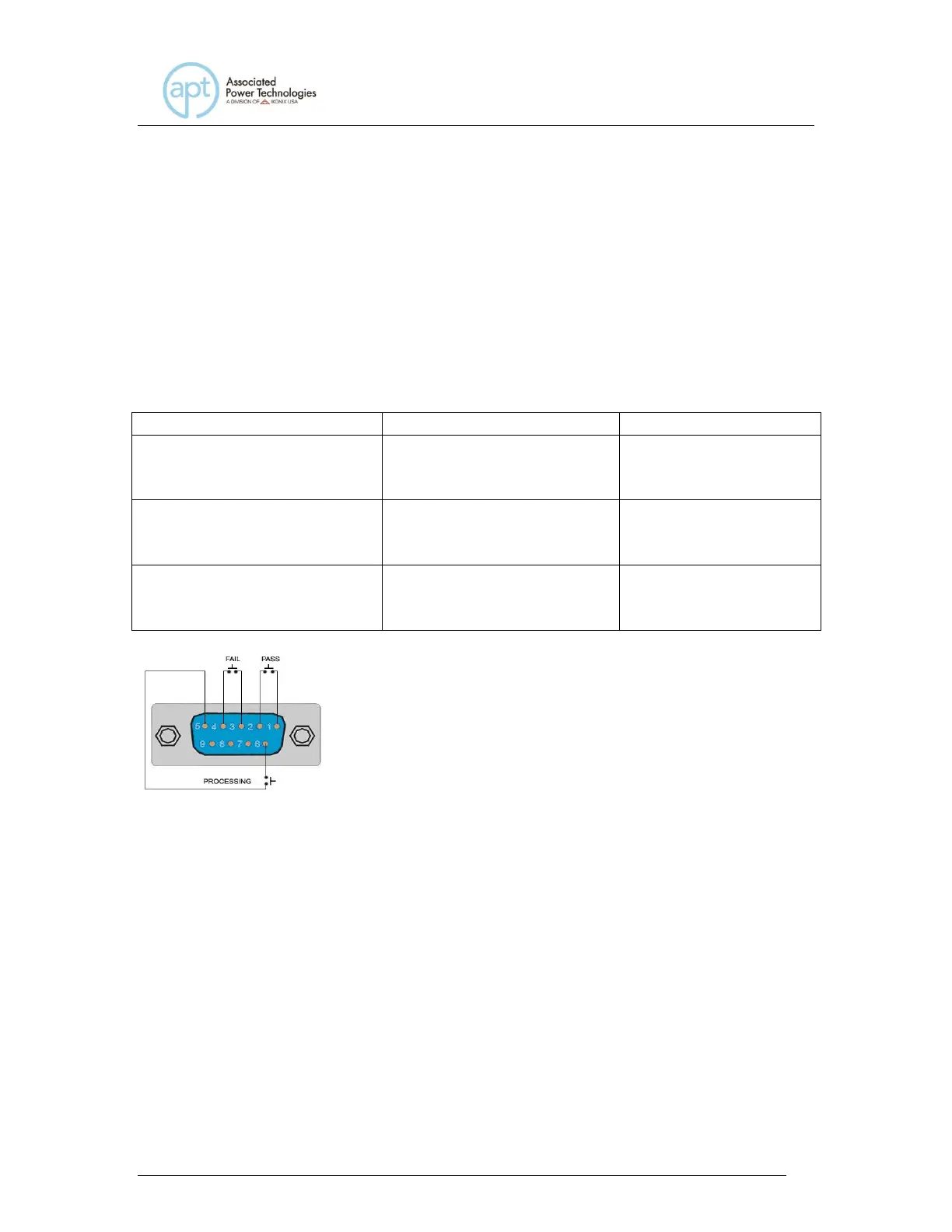

The rear panel connector of the 300XAC Series provides output signals to
remotely monitor PASS, FAIL, and PROCESSING conditions via a 9-Pin D-type
connector. When a terminal becomes active the relay closes thereby allowing
the external voltage to operate an external device. The following table provides
the conditions of each pin and the relay state.
Connection between PIN
1 & PIN 2
Closes on PASS and
is opened on next test
initialized
Connection between PIN
3 & PIN 4
Closes on FAIL and is
opened when next
test is initialized
Connection between PIN
5 & PIN 6
Closes when test
initialized and opens
after test is completed
8.2 Signal Input - 7 Memory Recall (Opt. 04)
The 300XAC Series also provides an optional remote input interface (Opt. 04) to
control any test operation via remote. The 9-Pin D-Type connector signals for
Test, Reset, and 7 Memories (M1 – M7) input control signals. PLC remote
functions will be activated once the PLC Remote from the System setup
Parameter is turned on. Upon turning on the PLC Remote setting, the
TEST/RESET LED will be lit and the buzzer will beep twice before returning to
the RESET condition, when any key on the front panel is pressed. Whenever
there is an abnormal output detected the instrument can be reset by pressing the
TEST/RESET key or the initializing a reset through the PLC remote
